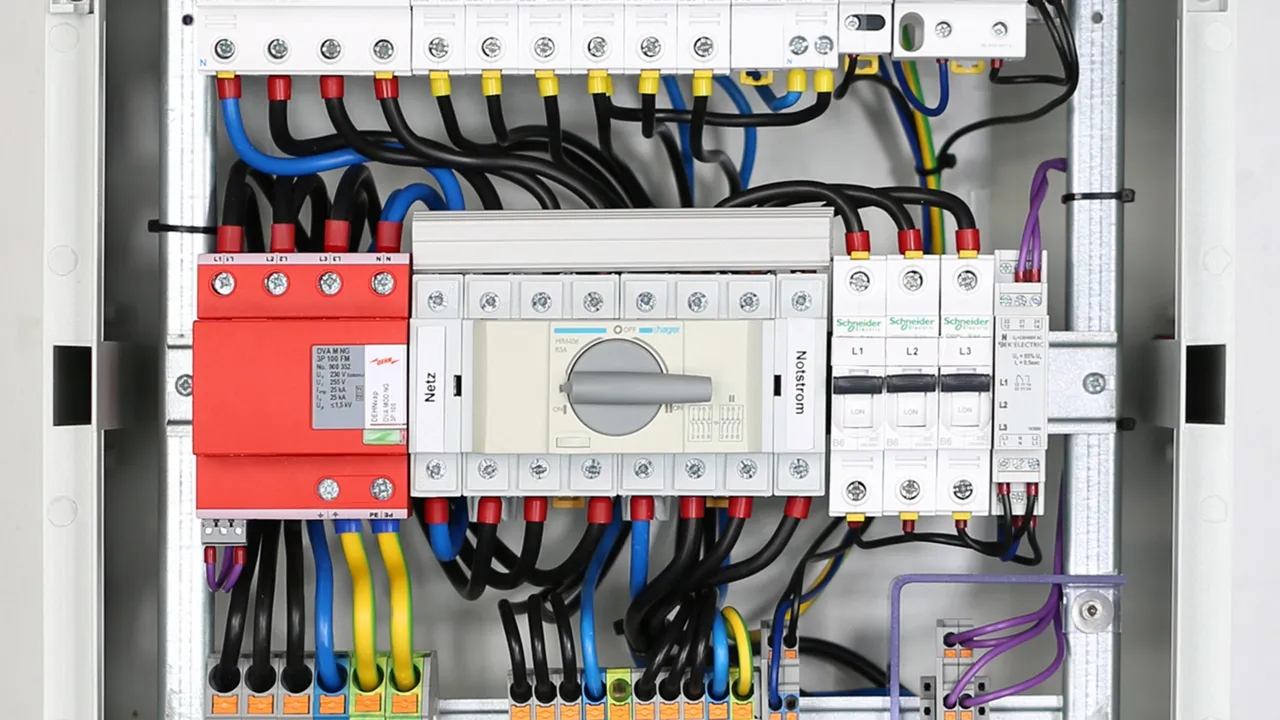

artikelnr. 900352 DVA M NG 3P 100 FM

GTIN 4013364455931, CCT (EU): 85363090, Bruttovægt: 598.33 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

Teksniske data

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz) V
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	2.50 MJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 2.50 MJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	No tripping of a 35 A gG fuse up to 25 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h	withstand
Let-through energy in combination with an MOV S20K275 (Iimp = 2.5 ... 25 kA)	< 1 J
Operating temperature range [parallel]/[series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm²stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 900352 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900352 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900351 DVA M NG 1P 50 FM

GTIN 4013364455948, CCT (EU): 85363090, Bruttovægt: 320.37 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

Certificater

Teksniske data

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz) V
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Specific energy [L+N-PE] (W/R)	625.00 kJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	No tripping of a 35 A gG fuse up to 25 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Let-through energy in combination with an MOV S20K275 (Iimp = 2.5 ... 25 kA)	< 1 J
Operating temperature range [parallel]/[series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, N, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (L, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 900351 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900351 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900360 DVA CSP 3P 100 FM

GTIN 4013364111332, CCT (EU): 85363090, Bruttovægt: 1.34 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

Certificater

Teksniske data

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_{C (N-PE)} )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 240 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_{C (N-PE)} )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	2.50 MJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 2.50 MJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	no tripping of a 20 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	315 A gG
Max. backup fuse (L) up to I_K > 25 kA_rms	200 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h	withstand
Operating temperature range [parallel]/[series] (T_U )	-40°C...+80°C / -40°C...+60°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L1', L2, L2', L3, L3', N, N', PE, 9 ) (min.)	10 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (L1', L2', L3', N', 9 ) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	8 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 900360 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900360 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900367 DVA CSP 3P 100 S FM

GTIN 4013364322288, CCT (EU): 85363090, Bruttovægt: 529.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

Certificater

Teksniske data

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 2.50 MJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h	withstand
Let-through energy in combination with an MOV S20K275 (Iimp = 2.5 ... 25 kA)	< 1 J
Characteristic at U = 320 V and I_SCCR = 13.5 kA in combination with a fuse 63 A gG	withstand
Operating temperature range [parallel]/[series] (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 900367 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900367 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900366 DVA CSP 1P 50 S FM

GTIN 4013364374669, CCT (EU): 85363090, Bruttovægt: 265.52 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

Certificater

Teksniske data

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Nominal discharge current (8/20 µs) (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h	withstand
Let-through energy in combination with an MOV S20K275 (Iimp = 2.5 ... 25 kA)	< 1 J
Characteristic at U = 320 V and I_SCCR = 13.5 kA in combination with a fuse 63 A gG	withstand
Operating temperature range [parallel]/[series] (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 900366 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900366 blev lagt I kurven.

Gå til webshoppen

Results for products (0)

Results for content (0)

DEHNvap

DVA M NG 3P 100 FM

artikelnr. 900352 DVA M NG 3P 100 FM

Produkt 900352 blev tilføjet til notesblok.

Produkt 900352 blev lagt I kurven.

DVA M NG 1P 50 FM

artikelnr. 900351 DVA M NG 1P 50 FM

Produkt 900351 blev tilføjet til notesblok.

Produkt 900351 blev lagt I kurven.

DVA CSP 3P 100 FM

artikelnr. 900360 DVA CSP 3P 100 FM

Produkt 900360 blev tilføjet til notesblok.

Produkt 900360 blev lagt I kurven.

DVA CSP 3P 100 S FM

artikelnr. 900367 DVA CSP 3P 100 S FM

Produkt 900367 blev tilføjet til notesblok.

Produkt 900367 blev lagt I kurven.

DVA CSP 1P 50 S FM

artikelnr. 900366 DVA CSP 1P 50 S FM

Produkt 900366 blev tilføjet til notesblok.

Produkt 900366 blev lagt I kurven.

DEHNvap

DVA M NG 3P 100 FM

artikelnr. 900352 DVA M NG 3P 100 FM

Du er ikke autoriseret til at downloade 900352.stp

Du er ikke autoriseret til at downloade 900352.igs

Du er ikke autoriseret til at downloade 900352.jt

Du er ikke autoriseret til at downloade 900352.dwg

Du er ikke autoriseret til at downloade 900352m_D.dxf

Du er ikke autoriseret til at downloade DEHN.900352.edz

Produkt 900352 blev tilføjet til notesblok.

Produkt 900352 blev lagt I kurven.

DVA M NG 1P 50 FM

artikelnr. 900351 DVA M NG 1P 50 FM

Du er ikke autoriseret til at downloade 900351.stp

Du er ikke autoriseret til at downloade 900351.igs

Du er ikke autoriseret til at downloade 900351.jt

Du er ikke autoriseret til at downloade 900351.dwg

Du er ikke autoriseret til at downloade 900351m_D.dxf

Du er ikke autoriseret til at downloade DEHN.900351.edz

Produkt 900351 blev tilføjet til notesblok.

Produkt 900351 blev lagt I kurven.

DVA CSP 3P 100 FM

artikelnr. 900360 DVA CSP 3P 100 FM

Du er ikke autoriseret til at downloade 900360.stp

Du er ikke autoriseret til at downloade 900360.igs

Du er ikke autoriseret til at downloade 900360.jt

Du er ikke autoriseret til at downloade 900360.dwg

Du er ikke autoriseret til at downloade 900360.dxf

Produkt 900360 blev tilføjet til notesblok.

Produkt 900360 blev lagt I kurven.

DVA CSP 3P 100 S FM

artikelnr. 900367 DVA CSP 3P 100 S FM

Du er ikke autoriseret til at downloade 900367.stp

Du er ikke autoriseret til at downloade 900367.igs

Du er ikke autoriseret til at downloade 900367.jt

Du er ikke autoriseret til at downloade 900367.dwg

Du er ikke autoriseret til at downloade 900367.dxf

Produkt 900367 blev tilføjet til notesblok.

Produkt 900367 blev lagt I kurven.

DVA CSP 1P 50 S FM

artikelnr. 900366 DVA CSP 1P 50 S FM

Du er ikke autoriseret til at downloade 900366.stp

Du er ikke autoriseret til at downloade 900366.igs

Du er ikke autoriseret til at downloade 900366.jt

Du er ikke autoriseret til at downloade 900366.dwg

Du er ikke autoriseret til at downloade 900367.dxf

Produkt 900366 blev tilføjet til notesblok.

Produkt 900366 blev lagt I kurven.
