DEHNventil modular

  • Prewired spark-gap-based type 1 and type 2 combined lightning current and surge arrester consisting of a base part and plug-in protection modules
  • Maximum system availability due to RADAX Flow follow current limitation
  • No tripping of 20 A gG fuses up to short-circuit currents of 50 kArms
  • Discharge capacity up to 100 kA (10/350 µs)
  • Capable of protecting terminal equipment
  • Operating state / fault indication by green / red indicator flag in the inspection window
  • Easy replacement of protection modules without tools due to module locking system with module release button
  • Vibration and shock-tested according to EN 60068-2

Details

lorem ipsum

DEHNventil M TNC (FM)

Modular combined lightning current and surge arrester for TN-C systems with a nominal voltage of 230 / 400 V (3+0 configuration); FM version with floating remote signalling contact.

2 produkter

artikelnr. 951300 DV M TNC 255

GTIN 4013364108134, CCT: 85363090, Bruttovægt: 1004.00 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

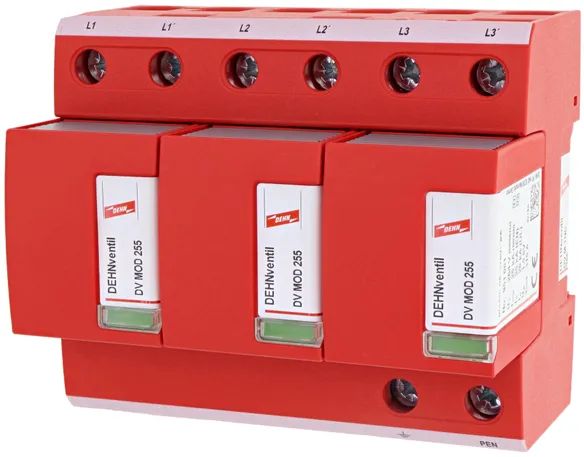

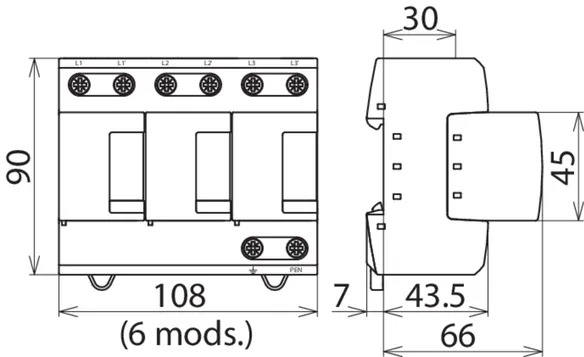

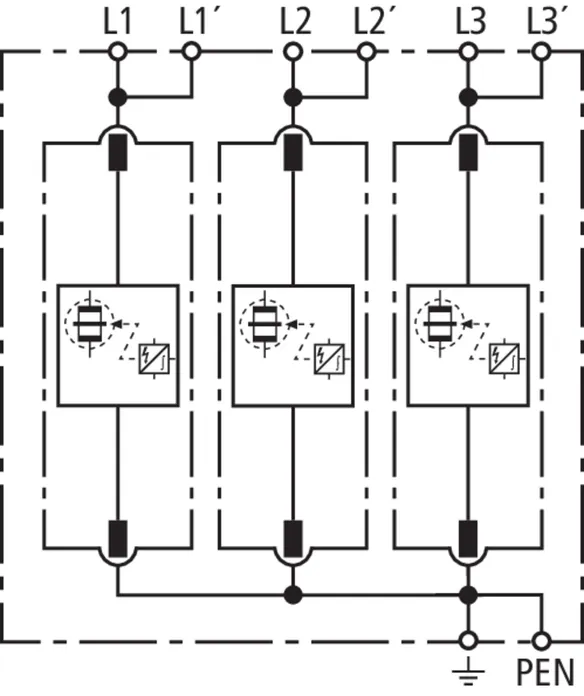

Modular DEHNventil M TNC 255 combined arrester
Modular and pluggable three-pole combined arrester for
230/400 V TN-C systems, width: 6 modules
Type 1 + type 2 according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 75 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TNC 255
Part No.: 951300
or equivalent.

Certificater



Teksniske data

Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (UN ) 230 / 400 V
– Nominal frequency (a.c.) (fN ) 16.7 Hz
– Max. backup fuse 125 A gG @ 16,7 Hz
SPD according to EN 61643-11 / IEC 61643-11 type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (UC ) 264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (Itotal ) 75 kA
Lightning impulse current (10/350 µs) [L-PEN] (Iimp ) 25 kA
Voltage protection level (UP ) 1.5 kV
Max. backup fuse (L) up to IK = 50 kArms 315 A gG
Approvals KEMA, VDE, UL
Extended technical data: For use in switchgear installations with prospective short-circuit currents of more than 50 kArms (tested by the German VDE)
– Max. prospective short-circuit current 100 kArms (220 kApeak)

Produkt 951300 blev tilføjet til notesblok.

Produkt 951300 blev lagt I kurven.

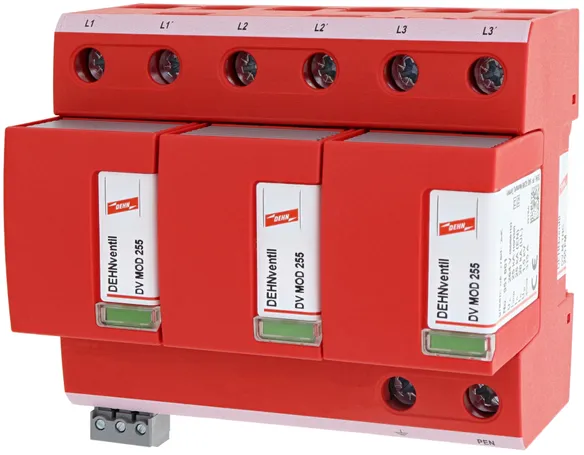

artikelnr. 951305 DV M TNC 255 FM

GTIN 4013364108141, CCT: 85363090, Bruttovægt: 1020.00 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

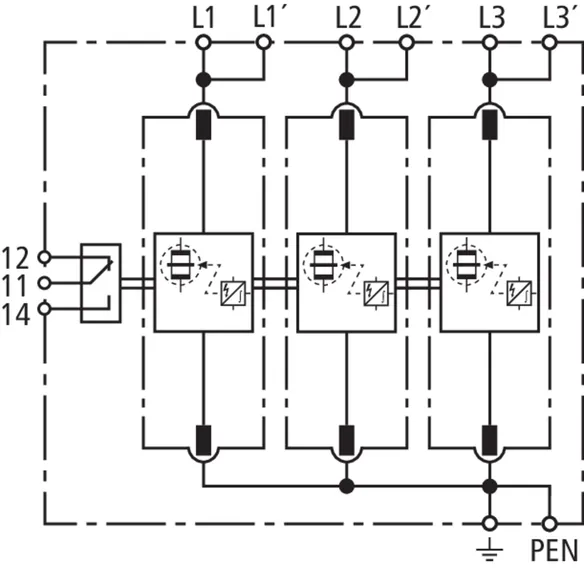

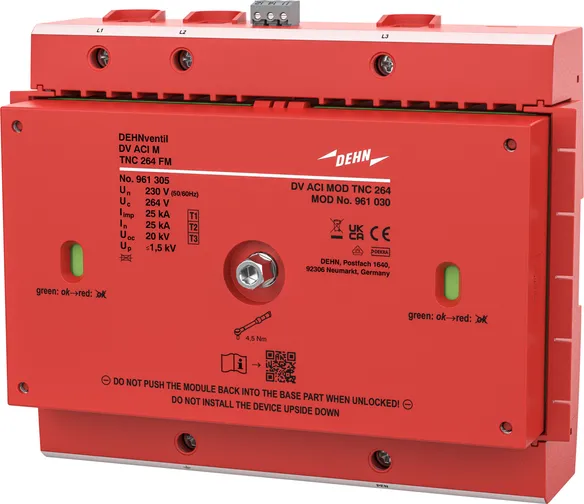

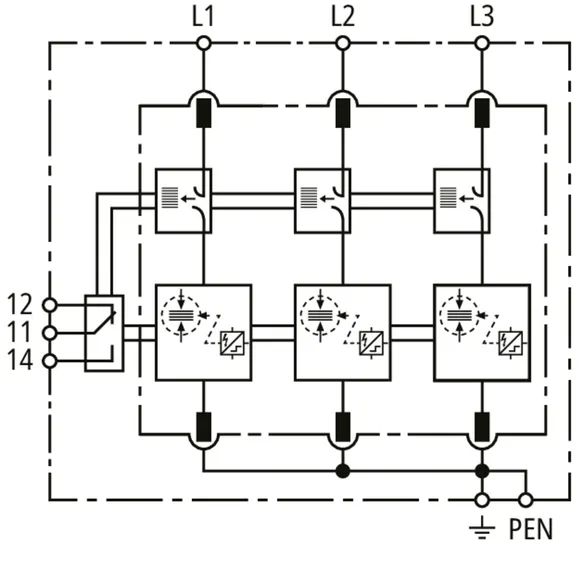

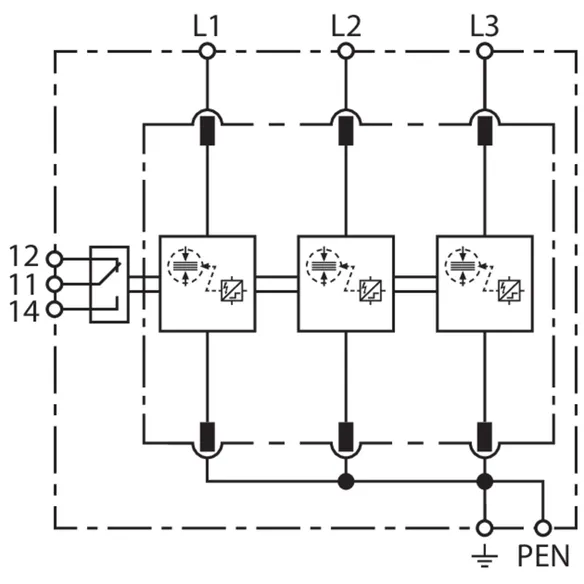

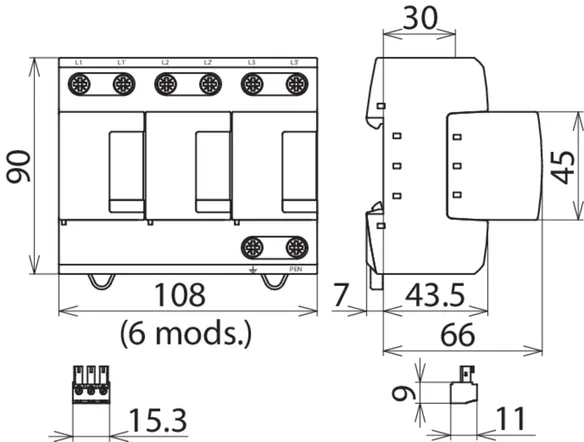

Modular DEHNventil M TNC 255 FM combined arrester
Pluggable and modular three-pole combined arrester
for use in 230/400 V TN-C systems, width: 6 mod.
with remote signalling contact
Type 1 + type 2 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 75 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TNC 255 FM
Part No.: 951305
or equivalent.

Certificater



Teksniske data

Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (UN ) 230 / 400 V
– Nominal frequency (a.c.) (fN ) 16.7 Hz
– Max. backup fuse 125 A gG @ 16,7 Hz
SPD according to EN 61643-11 / IEC 61643-11 type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (UC ) 264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (Itotal ) 75 kA
Lightning impulse current (10/350 µs) [L-PEN] (Iimp ) 25 kA
Voltage protection level (UP ) ≤ 1.5 kV
Max. backup fuse (L) up to IK = 50 kArms 315 A gG
Approvals KEMA, VDE, UL
Type of remote signalling contact changeover contact
Extended technical data: For use in switchgear installations with prospective short-circuit currents of more than 50 kArms (tested by the German VDE)
– Max. prospective short-circuit current 100 kArms (220 kApeak)

Produkt 951305 blev tilføjet til notesblok.

Produkt 951305 blev lagt I kurven.


DEHNventil M TNS (FM)

Modular combined lightning current and surge arrester for TN-S systems with a nominal voltage of 230 / 400 V (4+0 configuration); FM version with floating remote signalling contact.

2 produkter

artikelnr. 951400 DV M TNS 255

GTIN 4013364108158, CCT: 85363090, Bruttovægt: 1.40 kg, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

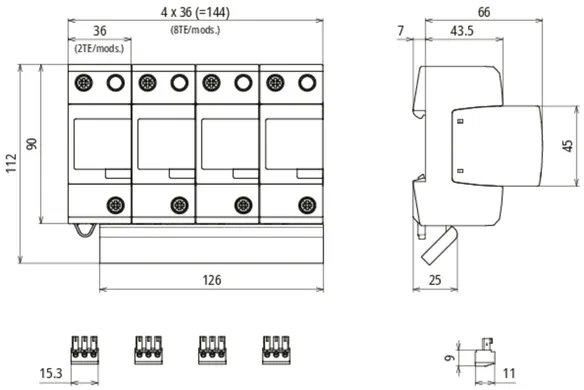

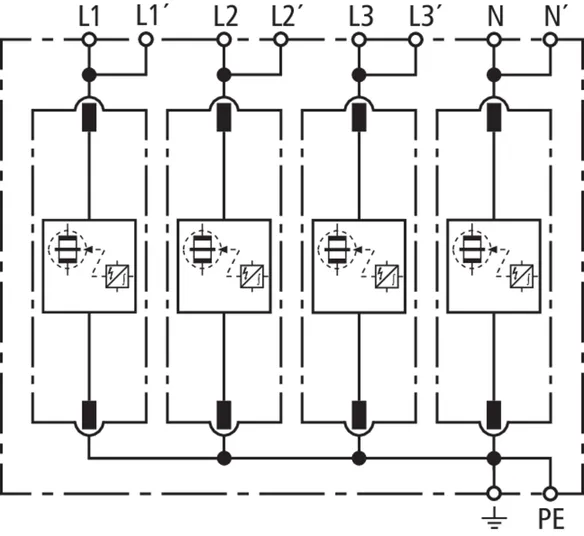

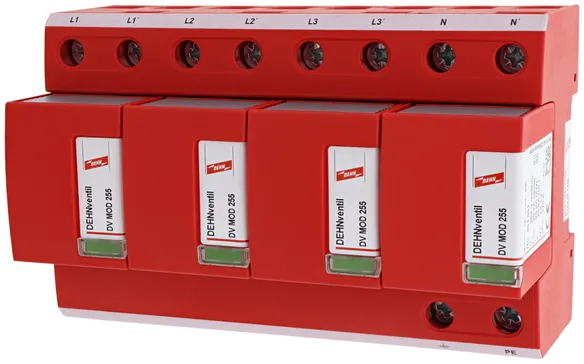

Modular DEHNventil M TNS 255 combined arrester
Pluggable and modular four-pole combined arrester
for use in 230/400 V TN(C)-S systems, width: 8 mod.
Type 1 + type 2 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 100 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TNS 255
Part No.: 951400
or equivalent.

Certificater



Teksniske data

SPD according to EN 61643-11 / IEC 61643-11 type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (UC ) 264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (Itotal ) 100 kA
Lightning impulse current (10/350 µs) [L, N-PE] (Iimp ) 25 kA
Voltage protection level [L-PE]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to IK = 50 kArms 315 A gG
Approvals KEMA, VDE, UL
Extended technical data: For use in switchgear installations with prospective short-circuit currents of more than 50 kArms (tested by the German VDE)
– Max. prospective short-circuit current 100 kArms (220 kApeak)
Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (UN ) 230 / 400 V
– Nominal frequency (a.c.) (fN ) 16.7 Hz
– Max. backup fuse 125 A gG @ 16,7 Hz

Produkt 951400 blev tilføjet til notesblok.

Produkt 951400 blev lagt I kurven.

artikelnr. 951405 DV M TNS 255 FM

GTIN 4013364108165, CCT: 85363090, Bruttovægt: 1.40 kg, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

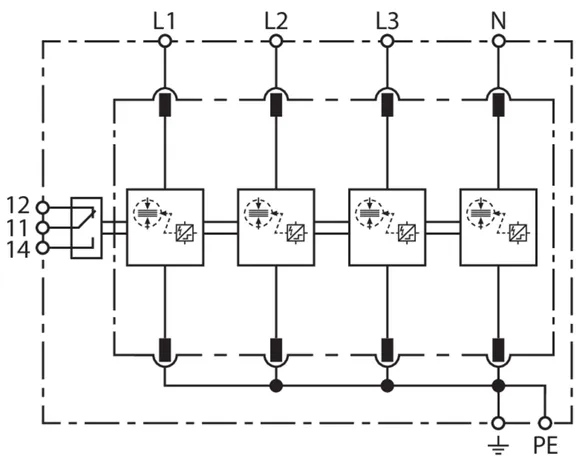

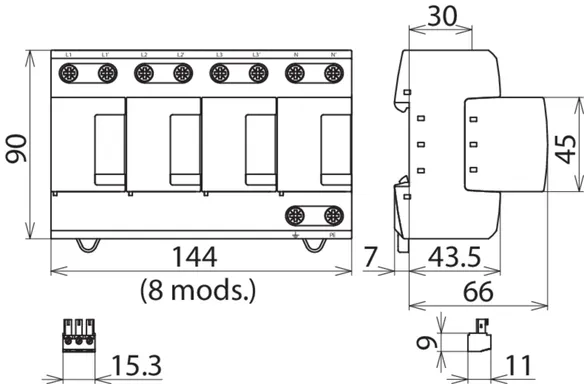

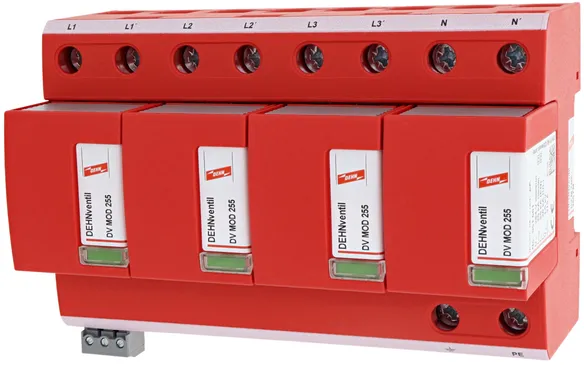

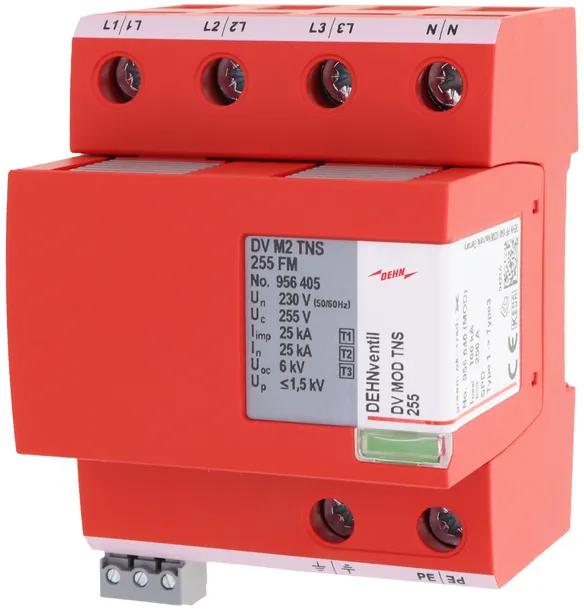

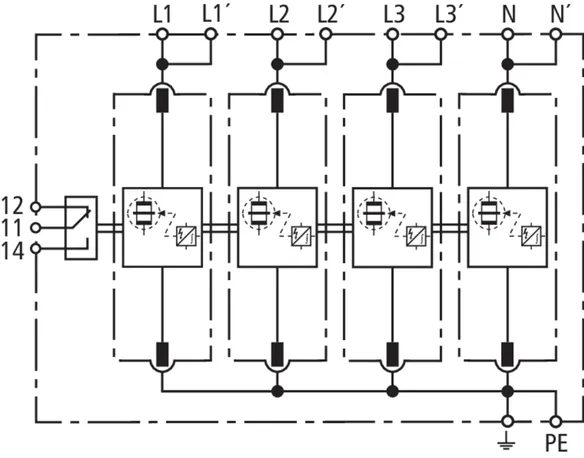

Modular DEHNventil M TNS 255 FM combined arrester
Pluggable and modular four-pole combined arrester
for use in 230/400 V TN(C)-S systems, width: 8 mod.
with remote signalling contact
Type 1 + type 2 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 100 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TNS 255 FM
Part No.: 951405
or equivalent.

Certificater



Teksniske data

SPD according to EN 61643-11 / IEC 61643-11 type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (UC ) 264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (Itotal ) 100 kA
Lightning impulse current (10/350 µs) [L, N-PE] (Iimp ) 25 kA
Voltage protection level [L-PE]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to IK = 50 kArms 315 A gG
Approvals KEMA, VDE, UL
Type of remote signalling contact changeover contact
Extended technical data: For use in switchgear installations with prospective short-circuit currents of more than 50 kArms (tested by the German VDE)
– Max. prospective short-circuit current 100 kArms (220 kApeak)
Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (UN ) 230 / 400 V
– Nominal frequency (a.c.) (fN ) 16.7 Hz
– Max. backup fuse 125 A gG @ 16,7 Hz

Produkt 951405 blev tilføjet til notesblok.

Produkt 951405 blev lagt I kurven.


DEHNventil M TT (FM)

Modular combined lightning current and surge arrester for TT and TN-S systems with a nominal voltage of 230 / 400 V (3+1 configuration); FM version with floating remote signalling contact.

2 produkter

artikelnr. 951310 DV M TT 255

GTIN 4013364108172, CCT: 85363090, Bruttovægt: 1.31 kg, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

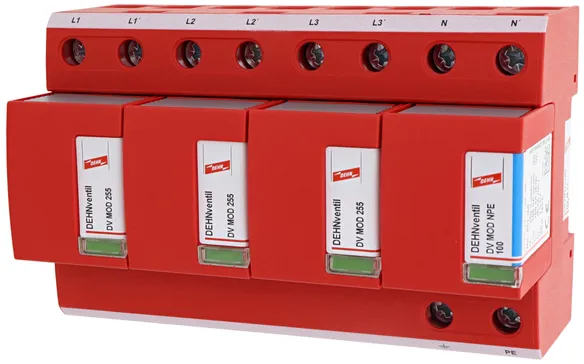

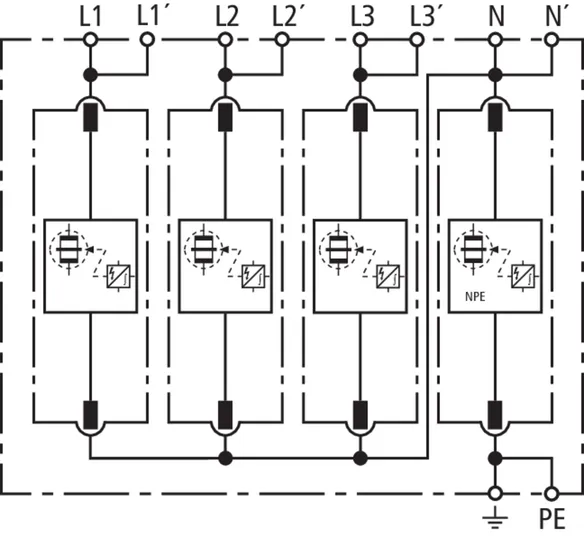

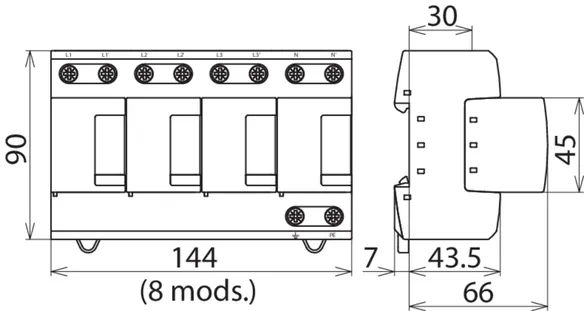

Modular DEHNventil M TT 255 combined arrester
Pluggable and modular four-pole combined arrester
for use in 230/400 V TT and TN(C)-S systems, width: 8 mod.
Type 1 + type 2 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 100 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TT 255
Part No.: 951310
or equivalent.

Certificater



Teksniske data

SPD according to EN 61643-11 / IEC 61643-11 type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N] (UC ) 264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (Itotal ) 100 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (Iimp ) 25 / 100 kA
Voltage protection level [L-N]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to IK = 50 kArms 315 A gG
Approvals KEMA, VDE, UL
Extended technical data: ---------------------------------
Voltage protection level [L-PE] (UP ) 2.2 kV
For use in switchgear installations with prospective short-circuit currents of more than 50 kArms (tested by the German VDE) ---------------------------------
– Max. prospective short-circuit current 100 kArms (220 kApeak)
Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (UN ) 230 / 400 V
– Nominal frequency (a.c.) (fN ) 16.7 Hz
– Max. backup fuse 125 A gG @ 16,7 Hz

Produkt 951310 blev tilføjet til notesblok.

Produkt 951310 blev lagt I kurven.

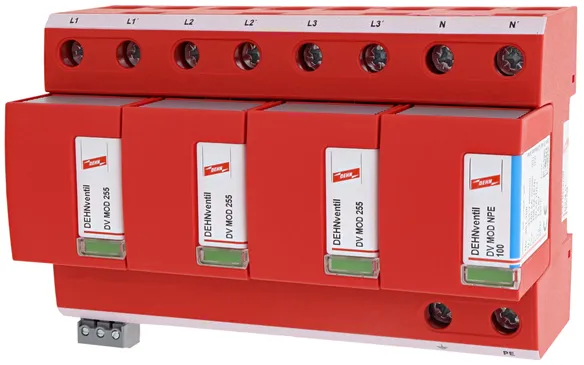

artikelnr. 951315 DV M TT 255 FM

GTIN 4013364108189, CCT: 85363090, Bruttovægt: 1.32 kg, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

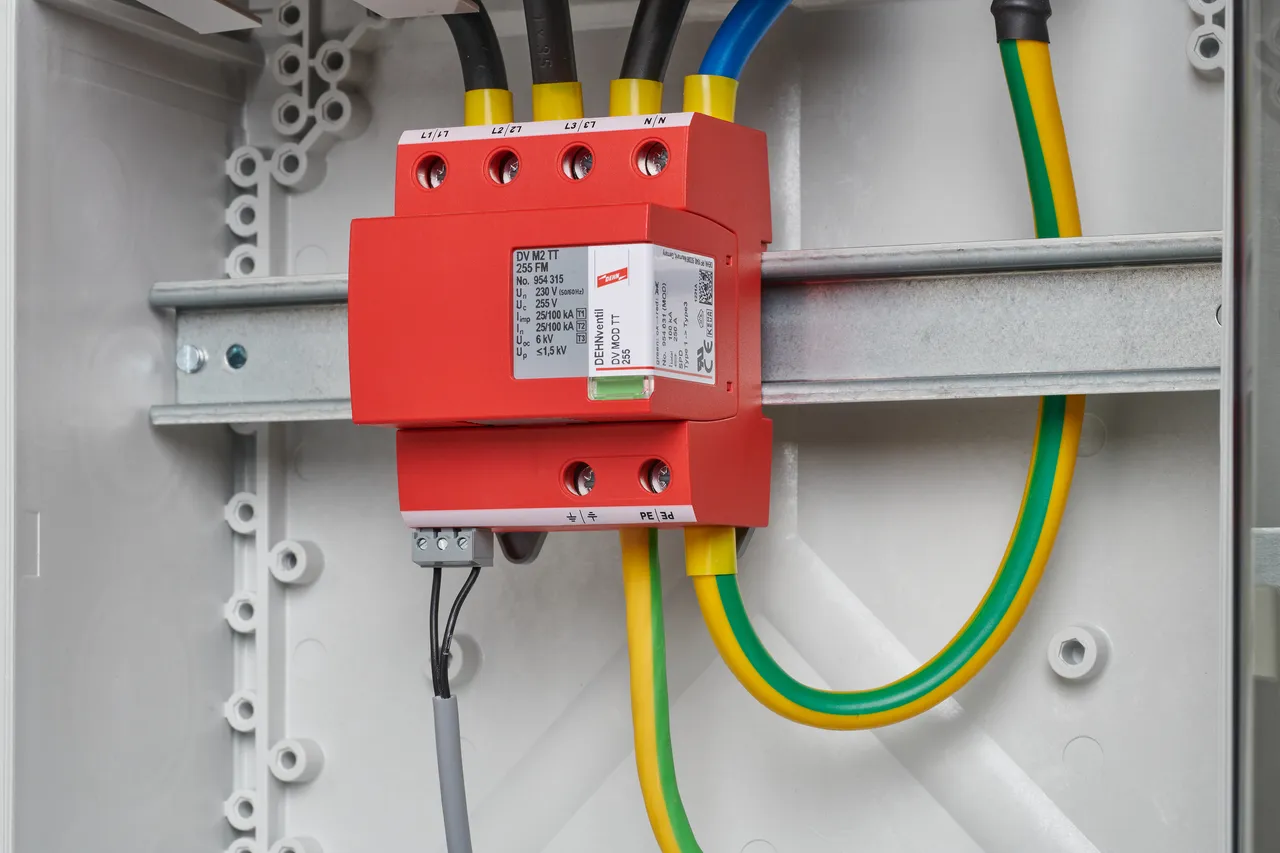

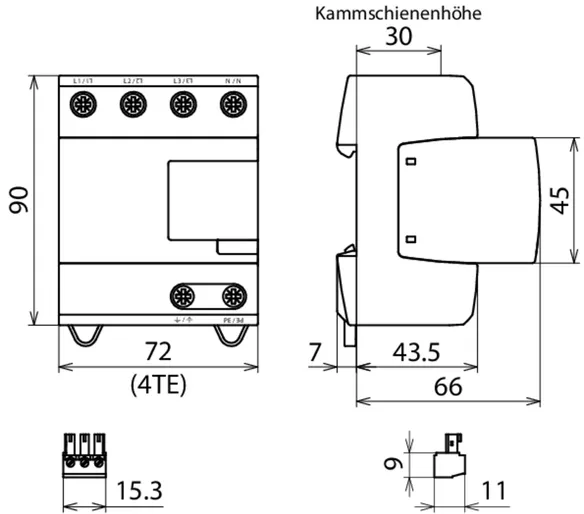

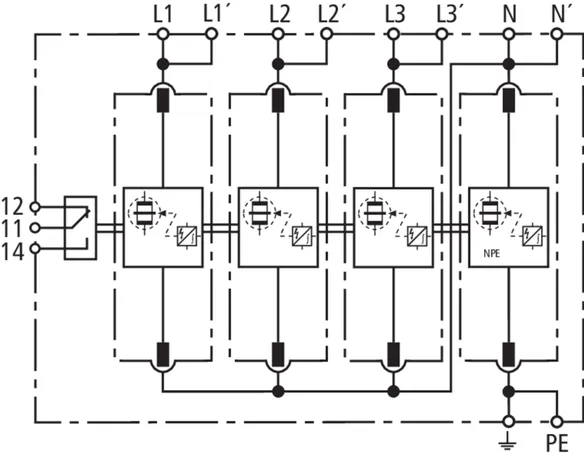

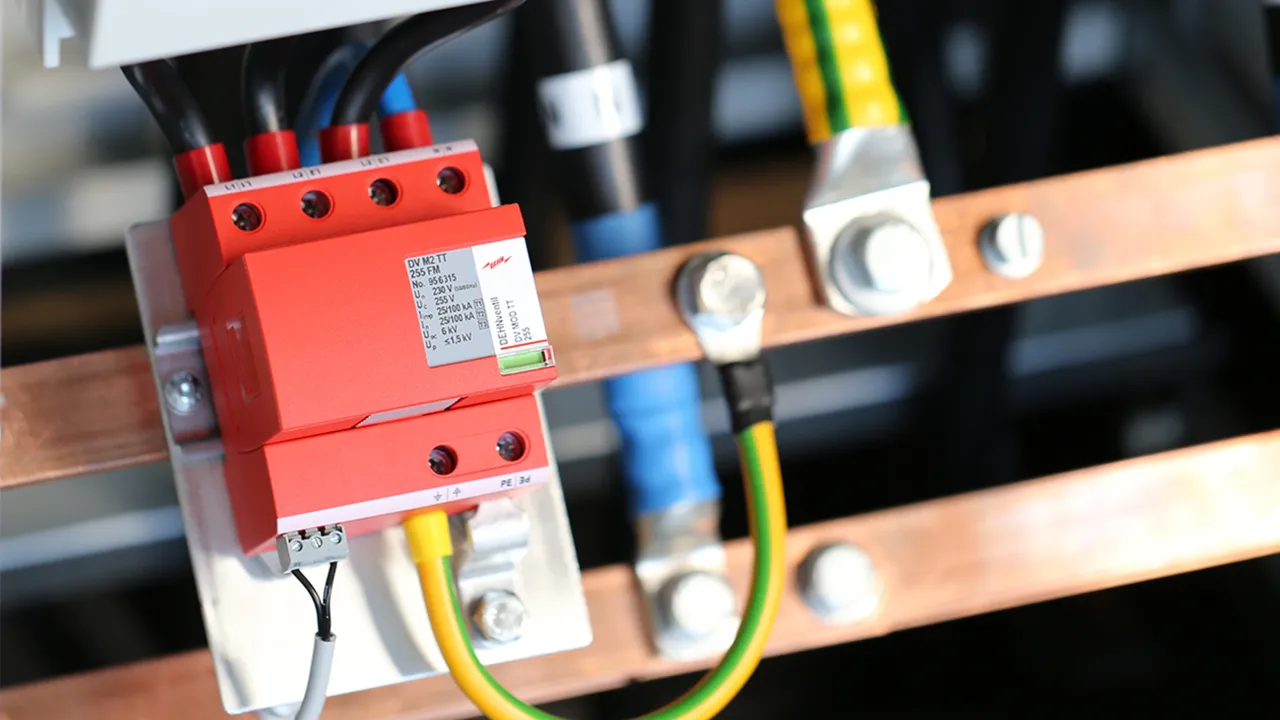

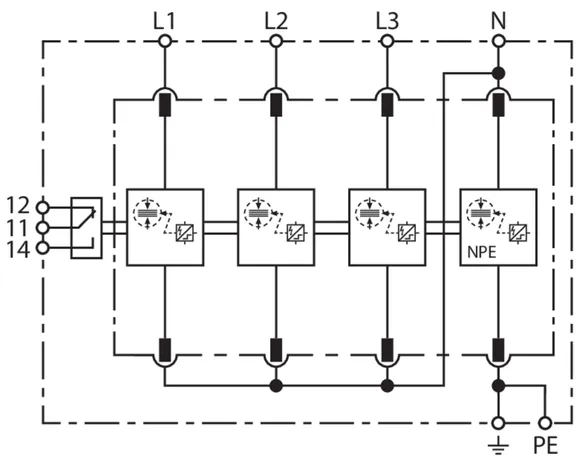

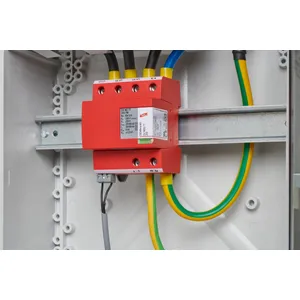

Modular DEHNventil M TT 255 FM combined arrester
Pluggable and modular four-pole combined arrester
for use in 230/400 V TT and TN(C)-S systems, width: 8 mod.
with remote signalling contact
Type 1 + type 2 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 100 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TT 255 FM
Part No.: 951315
or equivalent.

Certificater



Teksniske data

SPD according to EN 61643-11 / IEC 61643-11 type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N] (UC ) 264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (Itotal ) 100 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (Iimp ) 25 / 100 kA
Voltage protection level [L-N]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to IK = 50 kArms 315 A gG
Approvals KEMA, VDE, UL
Type of remote signalling contact changeover contact
Extended technical data: ---------------------------------
Voltage protection level [L-PE] (UP ) 2.2 kV
For use in switchgear installations with prospective short-circuit currents of more than 50 kArms (tested by the German VDE) ---------------------------------
– Max. prospective short-circuit current 100 kArms (220 kApeak)
Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (UN ) 230 / 400 V
– Nominal frequency (a.c.) (fN ) 16.7 Hz
– Max. backup fuse 125 A gG @ 16,7 Hz

Produkt 951315 blev tilføjet til notesblok.

Produkt 951315 blev lagt I kurven.


DEHNventil M TN (FM)

Modular combined lightning current and surge arrester for single-phase TN systems with a nominal voltage of 230 V (2+0 configuration); FM version with floating remote signalling contact.

2 produkter

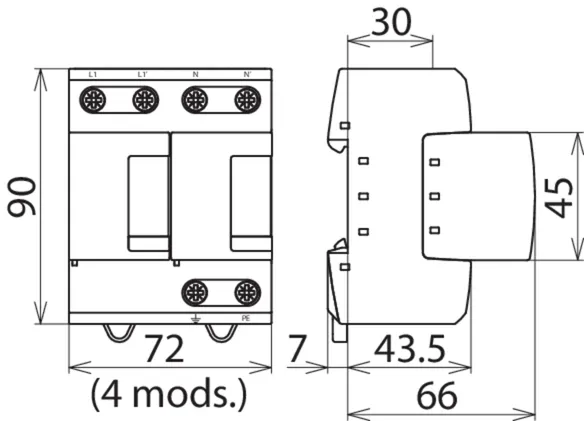

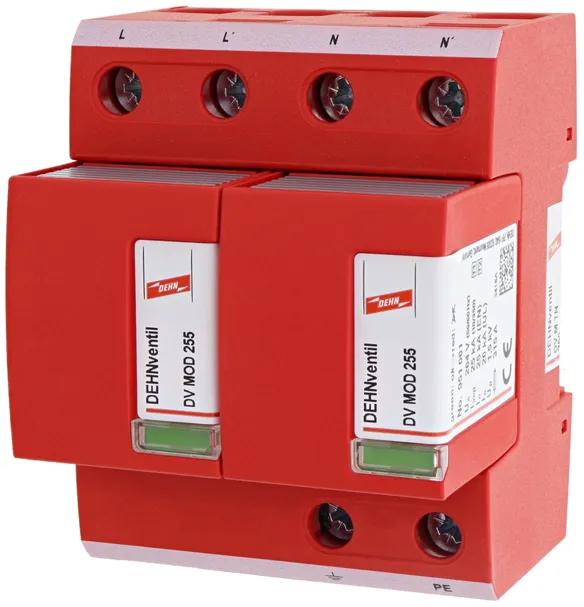

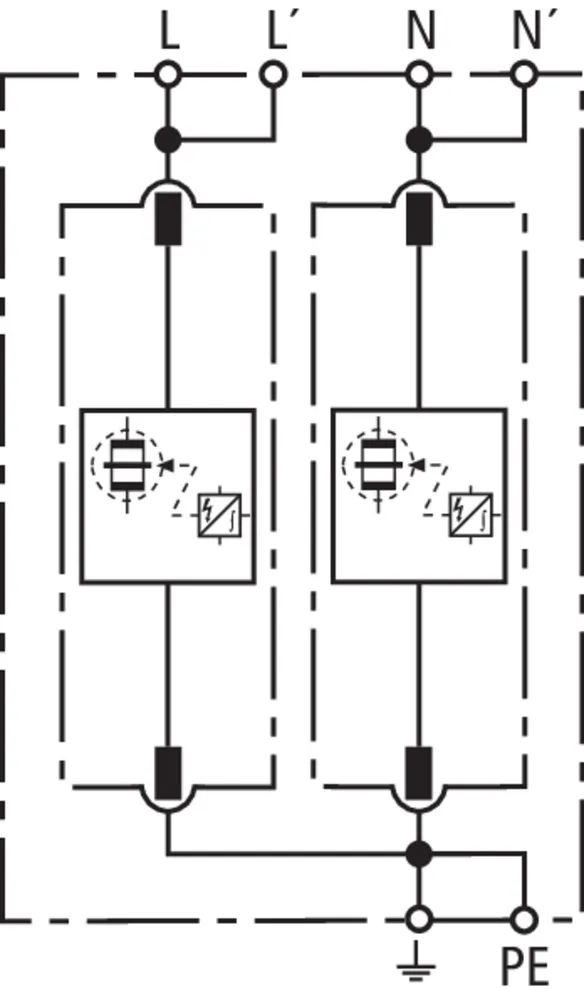

artikelnr. 951200 DV M TN 255

GTIN 4013364108097, CCT: 85363090, Bruttovægt: 754.00 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

Modular DEHNventil M TN 255 combined arrester
Pluggable and modular two-pole combined arrester
for use in single-phase TN systems, width: 4 mod.
Type 1 + type 2 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 50 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TN 255
Part No.: 951200
or equivalent.

Certificater



Teksniske data

SPD according to EN 61643-11 / IEC 61643-11 type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (UC ) 264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (Itotal ) 50 kA
Lightning impulse current (10/350 µs) [L, N-PE] (Iimp ) 25 kA
Voltage protection level [L-PE]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to IK = 50 kArms 315 A gG
Approvals KEMA, VDE, UL
Extended technical data: For use in switchgear installations with prospective short-circuit currents of more than 50 kArms (tested by the German VDE)
– Max. prospective short-circuit current 100 kArms (220 kApeak)
Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (UN ) 230 V
– Nominal frequency (a.c.) (fN ) 16.7 Hz
– Max. backup fuse 125 A gG @ 16,7 Hz

Produkt 951200 blev tilføjet til notesblok.

Produkt 951200 blev lagt I kurven.

artikelnr. 951205 DV M TN 255 FM

GTIN 4013364108103, CCT: 85363090, Bruttovægt: 698.50 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

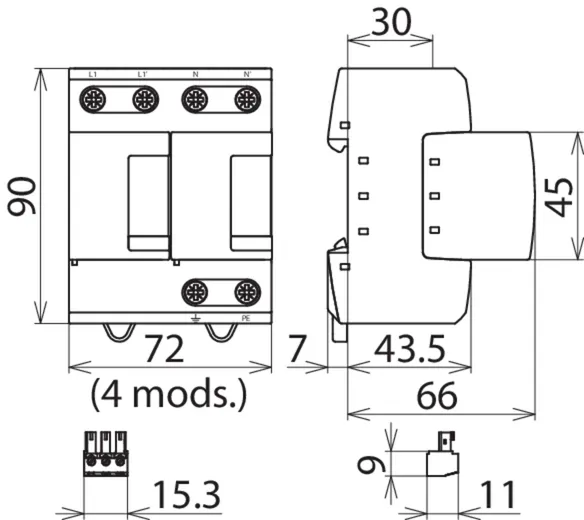

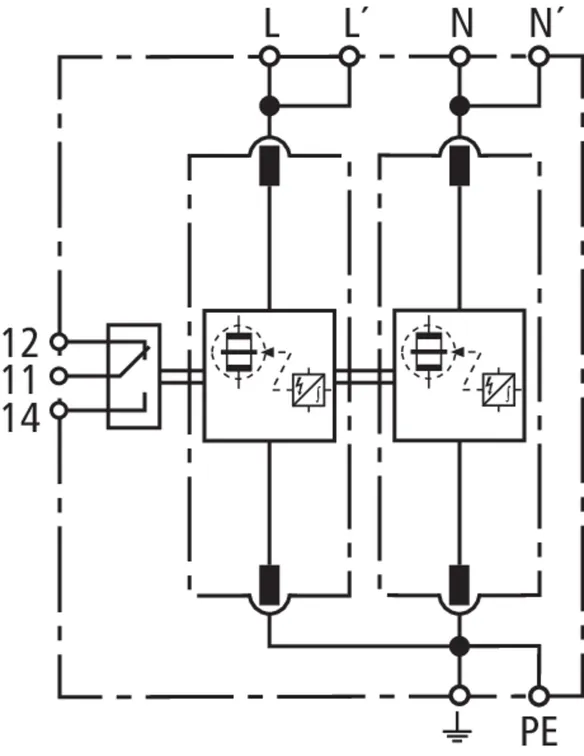

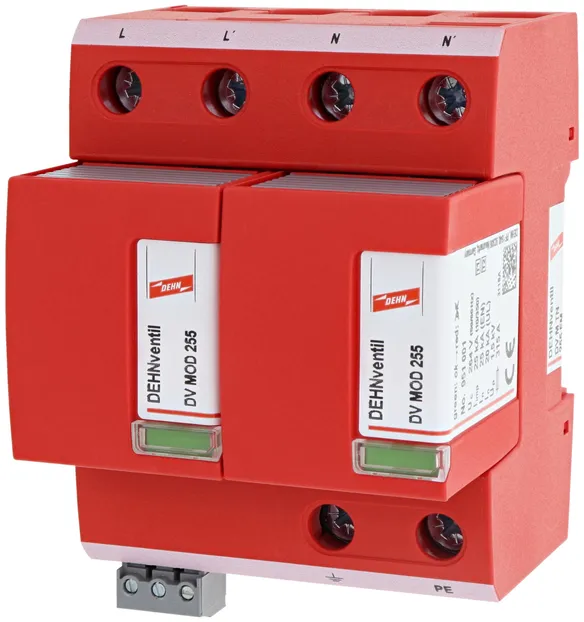

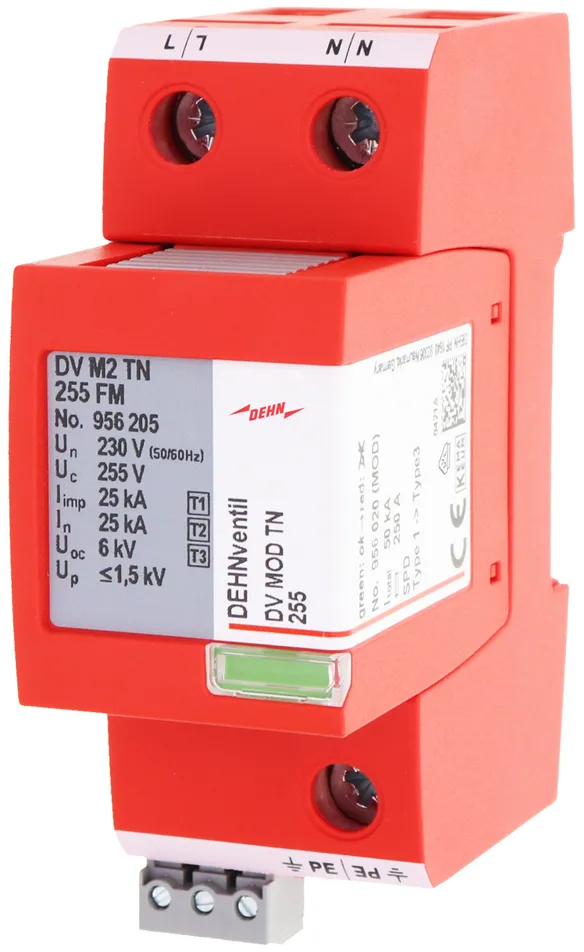

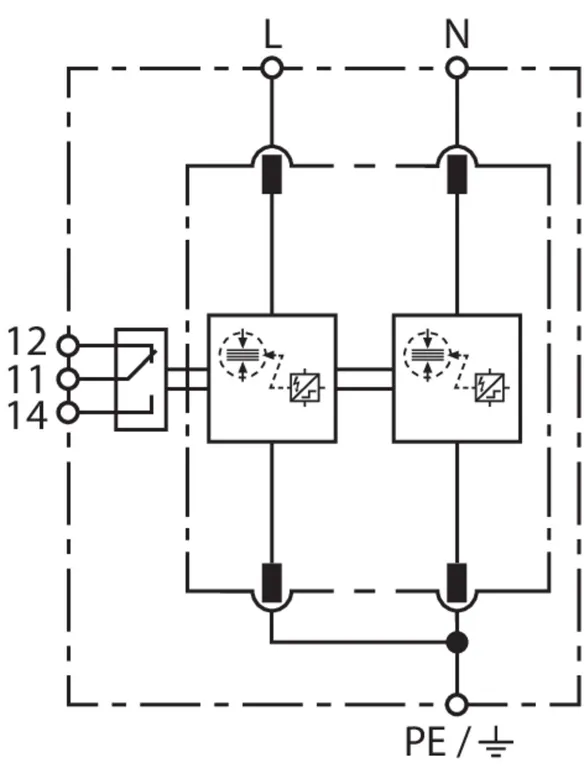

Modular DEHNventil M TN 255 FM combined arrester
Pluggable and modular two-pole combined arrester
for use in single-phase TN systems, width: 4 mod.
with remote signalling contact
Type 1 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 50 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TN 255 FM
Part No.: 951205
or equivalent.

Certificater



Teksniske data

SPD according to EN 61643-11 / IEC 61643-11 type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (UC ) 264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (Itotal ) 50 kA
Lightning impulse current (10/350 µs) [L, N-PE] (Iimp ) 25 kA
Voltage protection level [L-PE]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to IK = 50 kArms 315 A gG
Approvals KEMA, VDE, UL
Type of remote signalling contact changeover contact
Extended technical data: For use in switchgear installations with prospective short-circuit currents of more than 50 kArms (tested by the German VDE)
– Max. prospective short-circuit current 100 kArms (220 kApeak)
Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (UN ) 230 V
– Nominal frequency (a.c.) (fN ) 16.7 Hz
– Max. backup fuse 125 A gG @ 16,7 Hz

Produkt 951205 blev tilføjet til notesblok.

Produkt 951205 blev lagt I kurven.


DEHNventil M TT 2P (FM)

Modular combined lightning current and surge arrester for single-phase TT and TN-S systems with a nominal voltage of 230 V (1+1 configuration); FM version with floating remote signalling contact.

2 produkter

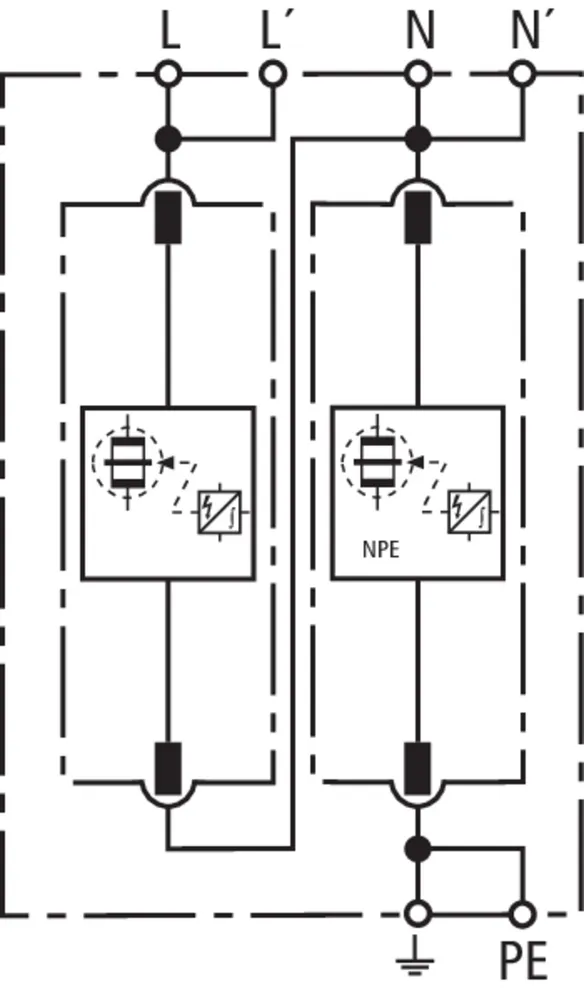

artikelnr. 951110 DV M TT 2P 255

GTIN 4013364108110, CCT: 85363090, Bruttovægt: 688.59 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

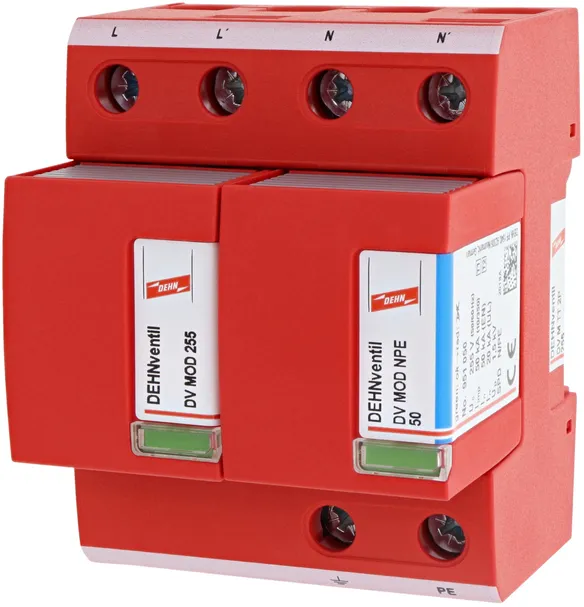

Modular DEHNventil M TT 2P 255 combined arrester
Pluggable and modular two-pole combined arrester
for use in single-phase TT and TN systems, width: 4 mod.
Type 1 + type 2 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 50 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TT 2P 255
Part No.: 951110
or equivalent.

Certificater



Teksniske data

SPD according to EN 61643-11 / IEC 61643-11 type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N] (UC ) 264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (Itotal ) 50 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (Iimp ) 25 / 50 kA
Voltage protection level [L-N]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to IK = 50 kArms 315 A gG
Approvals KEMA, VDE, UL
Extended technical data: ---------------------------------
Voltage protection level [L-PE] (UP ) 2.2 kV
For use in switchgear installations with prospective short-circuit currents of more than 50 kArms (tested by the German VDE) ---------------------------------
– Max. prospective short-circuit current 100 kArms (220 kApeak)
Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (UN ) 230 V
– Nominal frequency (a.c.) (fN ) 16.7 Hz
– Max. backup fuse 125 A gG @ 16,7 Hz

Produkt 951110 blev tilføjet til notesblok.

Produkt 951110 blev lagt I kurven.

artikelnr. 951115 DV M TT 2P 255 FM

GTIN 4013364108127, CCT: 85363090, Bruttovægt: 694.38 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

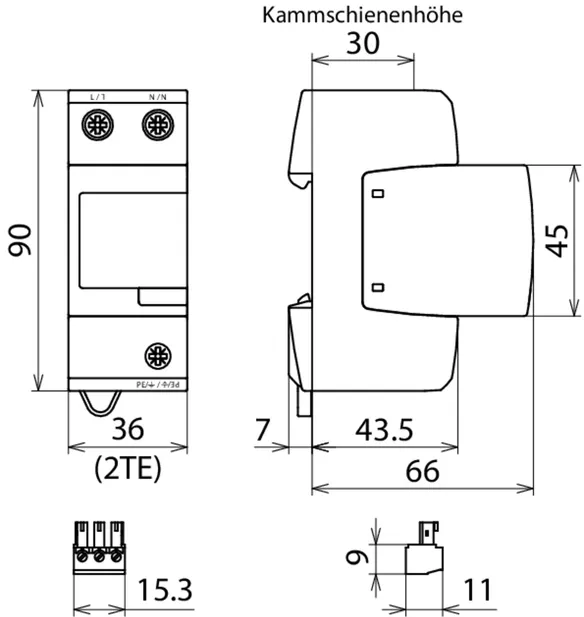

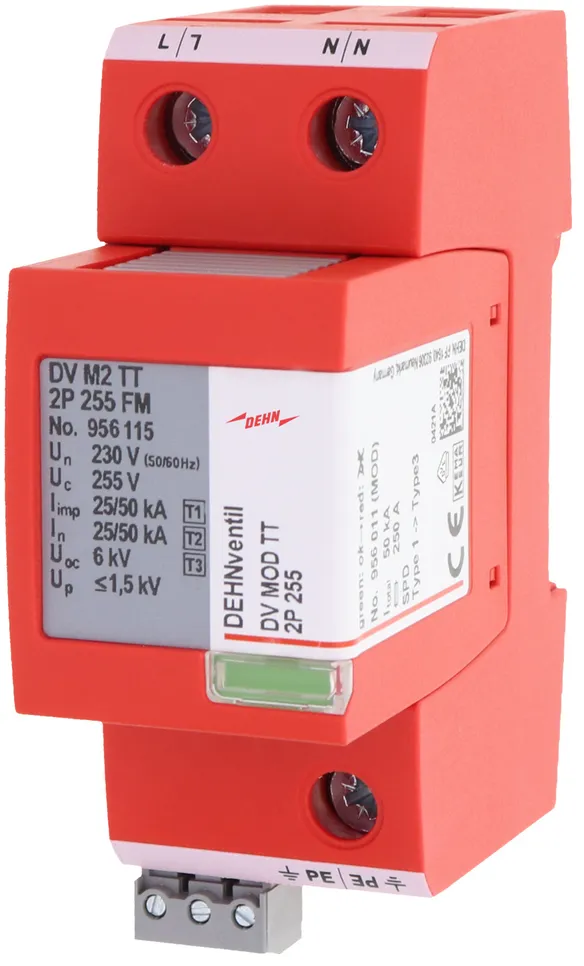

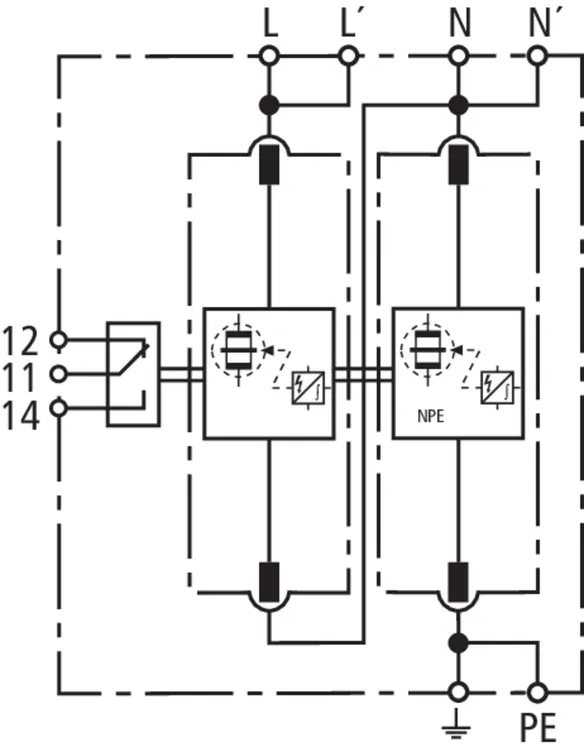

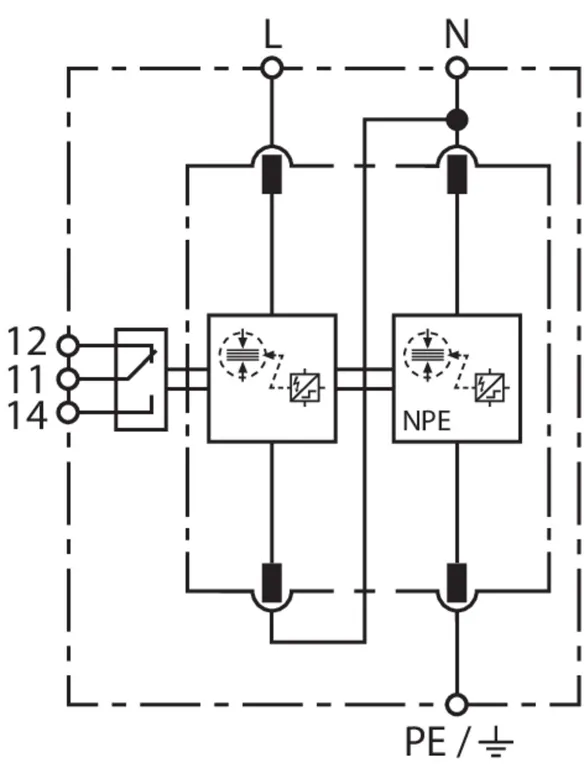

Modular DEHNventil M TT 2P 255 FM combined arrester
Pluggable and modular two-pole combined arrester
for use in single-phase TT and TN systems, width: 4 mod.
with remote signalling contact
Type 1+ type 2 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 50 kA
Follow current extinguishing capability: up to 100 kArms
No tripping of 20 A gG fuses up to 50 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TT 2P 255 FM
Part No.: 951115
or equivalent.

Certificater



Teksniske data

SPD according to EN 61643-11 / IEC 61643-11 type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N] (UC ) 264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (Itotal ) 50 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (Iimp ) 25 / 50 kA
Voltage protection level [L-N]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to IK = 50 kArms 315 A gG
Approvals KEMA, VDE, UL
Type of remote signalling contact changeover contact
Extended technical data: ---------------------------------
Voltage protection level [L-PE] (UP ) 2.2 kV
For use in switchgear installations with prospective short-circuit currents of more than 50 kArms (tested by the German VDE) ---------------------------------
– Max. prospective short-circuit current 100 kArms (220 kApeak)
Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (UN ) 230 V
– Nominal frequency (a.c.) (fN ) 16.7 Hz
– Max. backup fuse 125 A gG @ 16,7 Hz

Produkt 951115 blev tilføjet til notesblok.

Produkt 951115 blev lagt I kurven.


back to top

Indstillinger for cookies

Vi bruger cookies, så vi kan tilbyde dig den bedst mulige webstedsoplevelse. Dette inkluderer cookies, som er nødvendige for driften af webstedet og til at styre vores forretningsmæssige kommercielle mål, såvel som andre cookies, der udelukkende bruges til anonyme statistiske formål, til mere behagelige webstedsindstillinger eller til visning af personligt indhold. Du kan frit vælge, hvilke kategorier du gerne vil tillade. Bemærk, at afhængigt af de indstillinger, du vælger, er webstedets fulde funktionalitet muligvis ikke længere tilgængelig. Yderligere information findes i vores privatlivspolitik.
Hvis du har givet dit samtykke til os at indstille cookies, kan du når som helst tilbagekalde det ved at klikke på linket "Skift cookieindstilling" i sidefoden på siden.

  • Vis detaljer Skjul detaljer
    Nødvendige

    Disse cookies er nødvendige for at køre kernefunktionaliteterne på dette websted, f.eks. sikkerhedsrelaterede funktioner. Med disse cookies kan vi også registrere, om du ønsker at forblive logget ind på din profil for at give dig hurtig adgang til vores tjenester efter at have besøgt vores websted tidligere.

    Statistik & Marketing

    For kontinuerligt at forbedre vores websted sporer vi anonymt data til statistiske og analytiske formål. Med disse cookies kan vi for eksempel spore antallet af besøg eller virkningen af specifikke sider af vores web-tilstedeværelse og derfor optimere vores indhold.
