DPL 10 G3

Suitable for disconnection or terminal blocks of LSA systems of the 2/10 series
Equipped with individually tested gas discharge tubes for ten pairs
Individually exchangeable protection elements (gas discharge tubes)

Details

DPL 10 G3

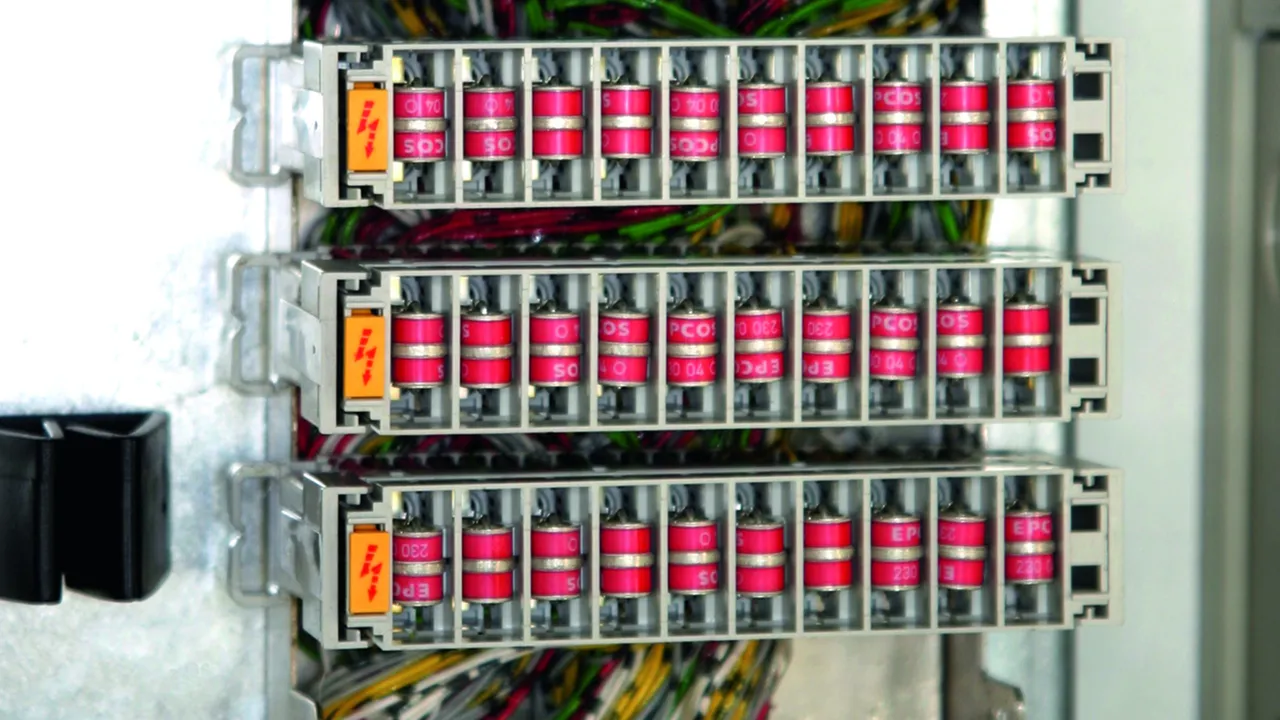

Plug-in SPD block for ten pairs with three-pole gas discharge tubes for almost all applications. FSD arresters feature a fail-safe function and an additional visual indication when the fail-safe function has been activated. Thus, it can be immediately identified whether an arrester has to be replaced.

2 produkter

artikelnr. 907214 DPL 10 G3 110

GTIN 4013364100879, CCT (EU): 85363010, Bruttovægt: 71.30 g, VPE: 1.00 pc(s)

billeder

Yderligere information

DPL 10 G3 110 plug-in SPD block for 10 pairs
Surge arrester plug-in block DPL, for 10/2
LSA blocks, SPD class TYPE 2 for protection
of 10 pairs of telecommunication systems

Brand: DEHN
Type: DPL 10 G3 110
Part No.: 907214
or equivalent.

Certificater

Tekniske data

SPD class	B
Max. continuous operating voltage (d.c.) (U_c )	180 V
Nominal current (I_L )	0.4 A
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA

SPD class	B
Nominal voltage (U_N )	110 V
Max. continuous operating voltage (d.c.) (U_c )	180 V
Max. continuous operating voltage (a.c.) (U_c )	127 V
Nominal current (I_L )	0.4 A
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 600 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 600 V
Voltage protection level line-line for 1 kV/µs C3 (U_P )	≤ 600 V
Voltage protection level line-PG for 1 kV/µs (U_P )	≤ 600 V
Capacitance line-line (C)	≤ 5 pF
Capacitance line-PG (C)	≤ 5 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Pluggable into	LSA disconnection and terminal blocks (type 2)
Earthing via	mounting frame
Enclosure material	polyamide
Colour	grey
Test standards	IEC 61643-21 / EN 61643-21

Produkt 907214 blev tilføjet til notesblok.

Gå til notesblok

Produkt 907214 blev lagt I kurven.

Gå til webshoppen

artikelnr. 907216 DPL 10 G3 110 FSD

GTIN 4013364106680, CCT (EU): 85363010, Bruttovægt: 70.80 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

DPL 10 G3 110 FSD plug-in SPD block for 10 pairs
DPL 10 G3 110 FSD surge arrester protection block
For LSA Plus technology, series 2
With fail-safe technology and visual fault indication
by colour change for protecting 10 pairs of telecommunication systems
Nominal discharge current:(8/20) 10 kA/pair
Nominal voltage: 110 V a.c.
Max. continuous operating voltage: 180 V d.c.

Brand: DEHN
Type: DPL 10 G3 110 FSD
Part No.: 907216
or equivalent.

Certificater

Tekniske data

SPD class	B
Fault indication	visual, colour change
Max. continuous operating voltage (d.c.) (U_c )	180 V
Nominal current (I_L )	0.4 A
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA

SPD class	B
Fault indication	visual, colour change
Nominal voltage (U_N )	110 V
Max. continuous operating voltage (d.c.) (U_c )	180 V
Max. continuous operating voltage (a.c.) (U_c )	127 V
Nominal current (I_L )	0.4 A
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_nC2 (U_P )	≤ 600 V
Voltage protection level line-PG for I_nC2 (U_P )	≤ 600 V
Voltage protection level line-line for 1 kV/µs C3 (U_P )	≤ 600 V
Voltage protection level line-PG for 1 kV/µs (U_P )	≤ 600 V
Capacitance line-line (C)	≤ 5 pF
Capacitance line-PG (C)	≤ 5 pF
Fail-safe function	gas discharge tube with spring contacts
Operating temperature range (T_U )	-40 °C ... +80 °C
Pluggable into	LSA disconnection and terminal blocks (type 2)
Earthing via	mounting frame
Enclosure material	polyamide
Colour	grey
Test standards	IEC 61643-21 / EN 61643-21
