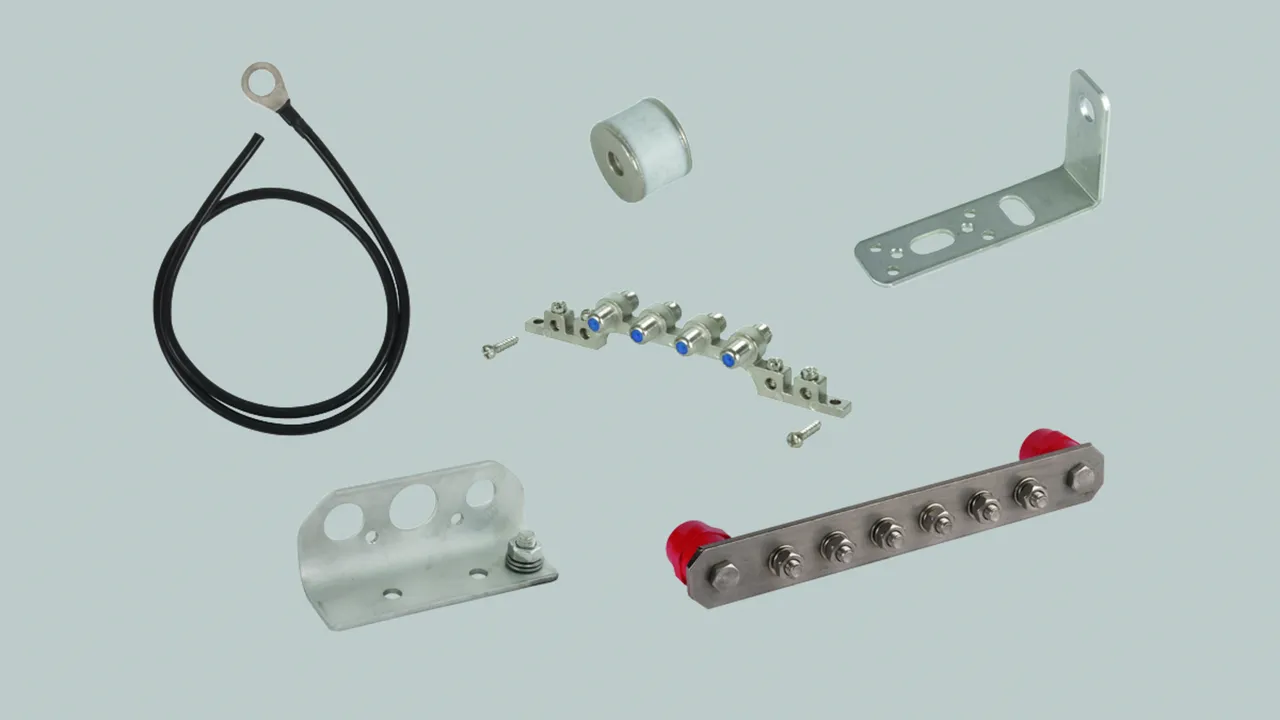

Accessories for DEHNgate

Cable Lug with Earthing Cable

Cable lug with highly flexible black copper earthing cable for earthing DEHNgate arresters (Part No. 929 043, 929 044 or 929 045).

1 produkt

artikelnr. 929096 EL 16 B17

GTIN 4013364107212, CCT (EU): 85444991, Bruttovægt: 202.70 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Cable lug with earthing cable for earthing DEHNgate EL 16 B17
Cable lug with hole diameter 17 mm2 and black
highly flexible copper earthing conductor 1 m long
for earthing DEHNgate


Brand: DEHN
Type: EL 16 B17
Part No.: 929096
or equivalent.



Tekniske data

Colour black ●
Length 1000 mm

Produkt 929096 blev tilføjet til notesblok.

Gå til notesblok

Produkt 929096 blev lagt I kurven.

Gå til webshoppen

Earthing Block 4xF

Four-pole earthing block with F sockets for equipotential bonding of satellite cable shields or DGA GF TV lightning current arresters.

1 produkt

artikelnr. 929095 EB 4 F

GTIN 4013364113398, CCT (EU): 85389099, Bruttovægt: 90.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

EB 4 F earthing block 4xF
Four-pole earthing block with F-sockets at the input and output, for equipotential bonding of up to 4 satellite cable shields or DGA GF TV lightning current arresters.
Shielding: class A, 75 ohms
Max. continuous operating voltage (d.c.): 65 V
D1 Lightning impulse current (10/350 µs): 10 kA
Frequency range: 0-2400 MHz

Brand: DEHN
Type: EB 4 F
Part No.: 929095
or equivalent.

Certificater



Tekniske data

D1 Lightning impulse current (10/350 µs) 10 kA
Colour bare surface

Produkt 929095 blev tilføjet til notesblok.

Gå til notesblok

Produkt 929095 blev lagt I kurven.

Gå til webshoppen

Fixing bracket for HF Arresters

With three mounting boreholes for three different sizes of DEHNgate arresters, e.g. 1x 929 042 + 1x 929 057 + 1x (929 043, 929 044, 929 045 or 929 059).

1 produkt

artikelnr. 106329 BW90 B17 21 16 V2A

GTIN 4013364107182, CCT (EU): 85389099, Bruttovægt: 152.63 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Fixing bracket for DEHNgate
Stainless steel fixing bracket, 90° angle, with three boreholes for three different sizes of
DEHNgate, e.g. 1x 929 042 + 1x 929 057 + 1x (929 043,
929 044, 929 045 or 929 058).

Brand: DEHN
Type: BW90 B17 21 16 V2A
Part No.: 106329
or equivalent.



Tekniske data

Material stainless steel

Produkt 106329 blev tilføjet til notesblok.

Gå til notesblok

Produkt 106329 blev lagt I kurven.

Gå til webshoppen

Fixing bracket for DEHNgate

Suitable for installating a DEHNgate arrester (Part Nos. 929 043 – 929 045), anti-rotation borehole (Ø16 mm).

1 produkt

artikelnr. 106314 BW90 B16 B5.1 6.5 11 V2A

GTIN 4013364136304, CCT (EU): 85389099, Bruttovægt: 100.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Fixing bracket for mounting DEHNgate
Stainless steel fixing bracket, 90° angle, for the installation of DEHNgate, Part No. 929 043 - 929 045. Hole (16mm) with anti-rotation protection

Brand: DEHN
Type: BW90 B16 B5.1 6.5 11 V2A
Part No.: 106314
or equivalent.



Tekniske data

Material stainless steel

Produkt 106314 blev tilføjet til notesblok.

Gå til notesblok

Produkt 106314 blev lagt I kurven.

Gå til webshoppen
back to top
