DEHNguard S ... VA

Multi-purpose surge arrester consisting of a base part and a plug-in protection module
Leakage-current-free series connection of a varistor and a spark gap in the pluggable protection module
High reliability due to "Thermo Dynamic Control" SPD monitoring device
Energy coordination with other arresters of the Red/Line product family
Easy replacement of protection modules without tools due to module locking system with module release button

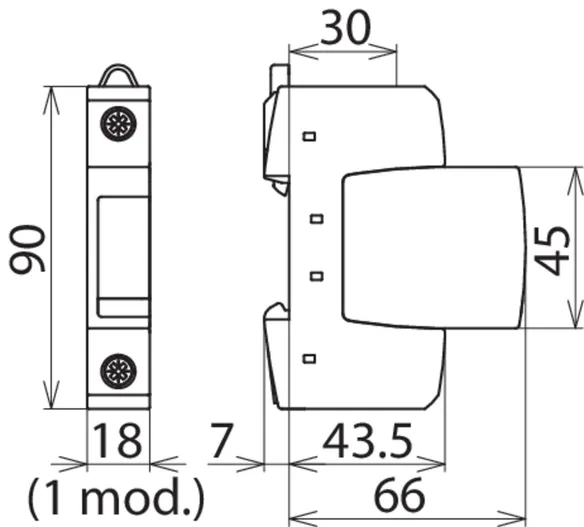

Narrow (modular) design according to DIN 43880
Multifunctional terminal for connecting conductors and busbars
Vibration and shock-tested according to EN 60068-2

DEHNguard S VA

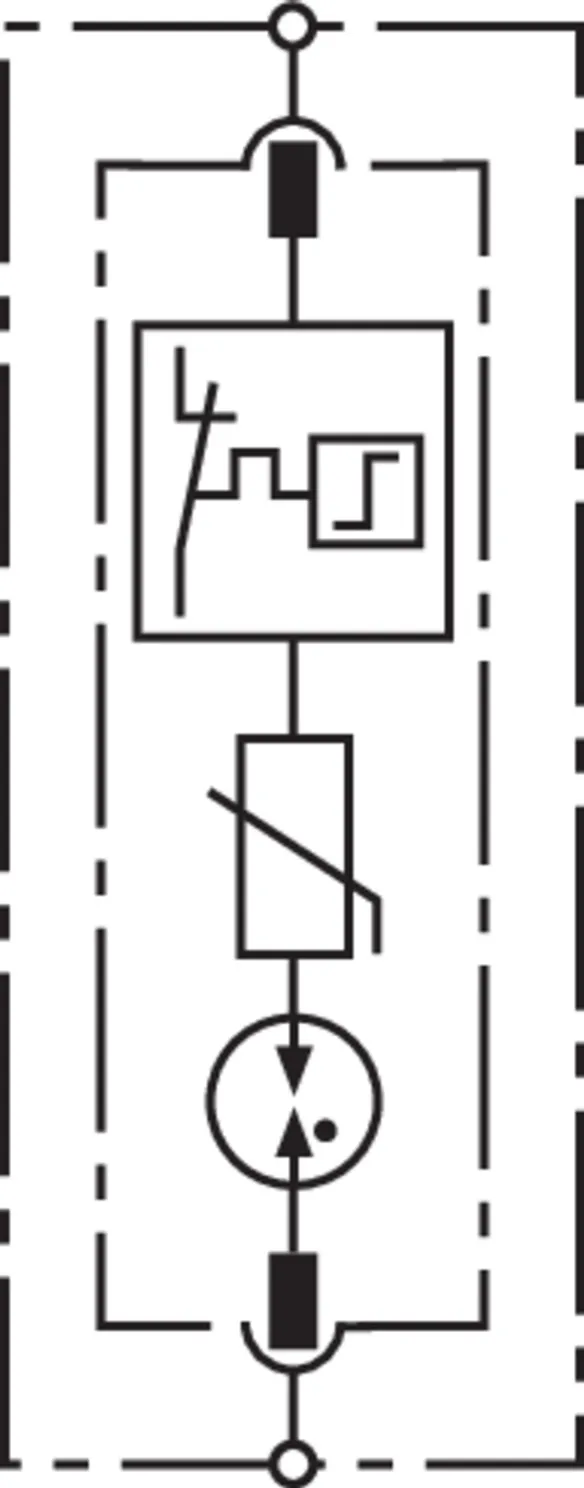

Modular single-pole surge arrester with a varistor connected in series with a spark gap in the pluggable protection module.

3 produkter

artikelnr. 952080 DG S 75 VA

GTIN 4013364127296, CCT (EU): 85363030, Bruttovægt: 118.00 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

CAD filer

DEHNguard S 75 VA surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 75 V a.c./100 V d.c.
Voltage protection level: <= 1.1 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 75 VA
Part No.: 952080
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.1 kV
Max. mains-side overcurrent protection	100 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	60 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	100 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.1 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	115 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880

Produkt 952080 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952080 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952082 DG S 275 VA

GTIN 4013364127319, CCT (EU): 85363030, Bruttovægt: 123.40 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

CAD filer

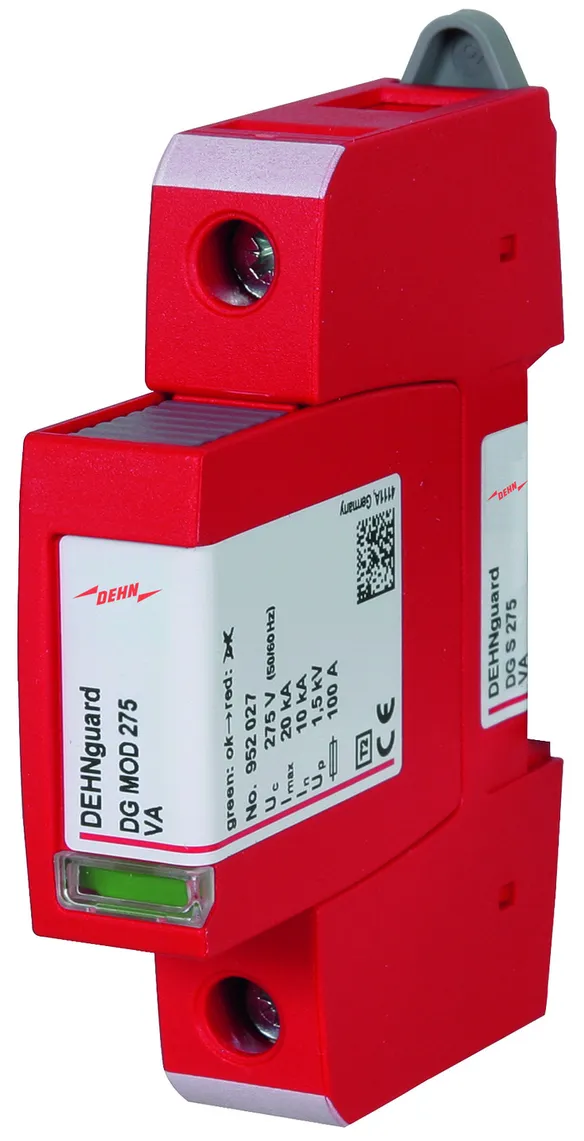

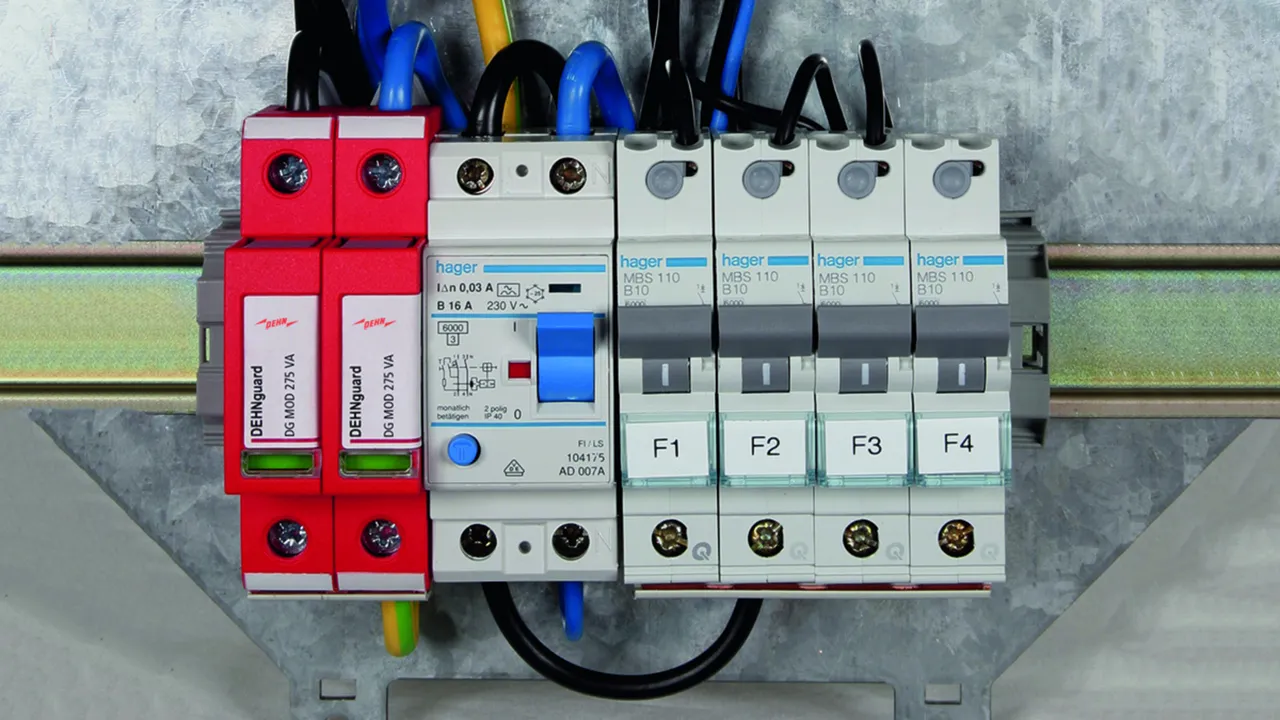

DEHNguard S 275 VA surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 275 V a.c./350 V d.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 275 VA
Part No.: 952082
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	100 A gG

Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 V
– Nominal frequency AC (f_N )	16.7 Hz

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880

Produkt 952082 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952082 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952084 DG S 385 VA

GTIN 4013364127333, CCT (EU): 85363030, Bruttovægt: 127.70 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

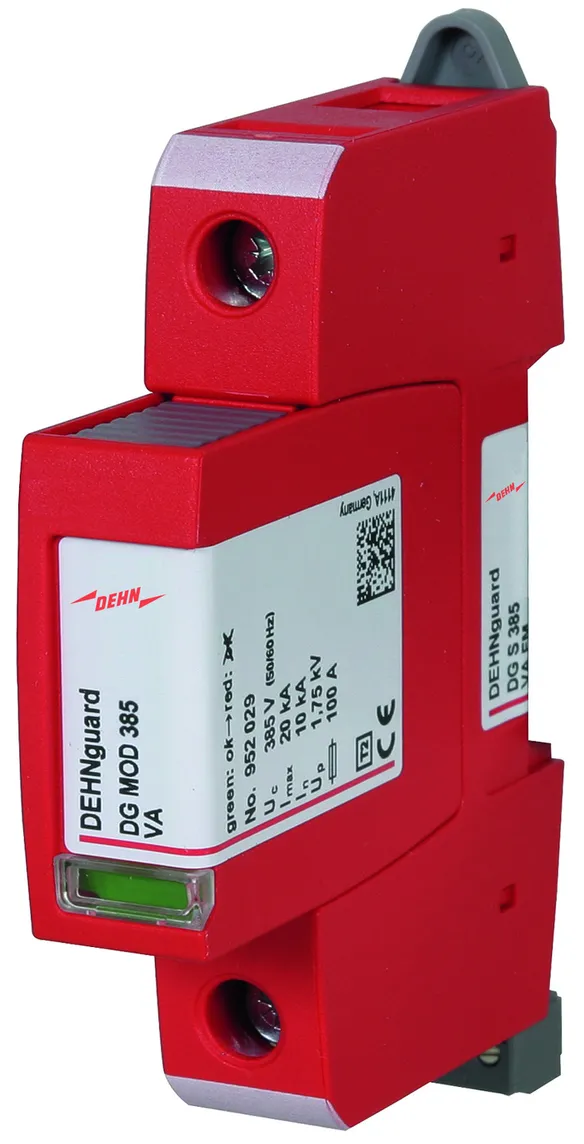

DEHNguard S 385 VA surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 385 V a.c./500 V d.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 385 VA
Part No.: 952084
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.75 kV
Max. mains-side overcurrent protection	100 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	500 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.75 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² stranded / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880

Produkt 952084 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952084 blev lagt I kurven.

Gå til webshoppen

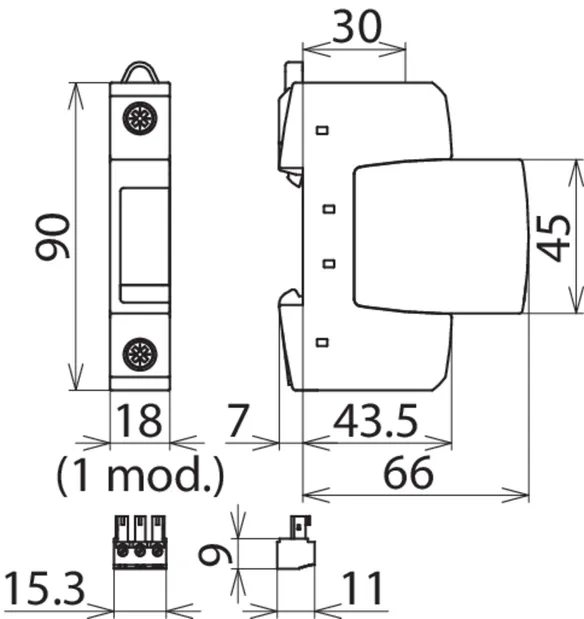

DEHNguard S VA FM

Modular single-pole surge arrester with a varistor connected in series with a spark gap in the pluggable protection module; with floating remote signalling contact.

3 produkter

artikelnr. 952085 DG S 75 VA FM

GTIN 4013364127302, CCT (EU): 85363030, Bruttovægt: 122.10 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

CAD filer

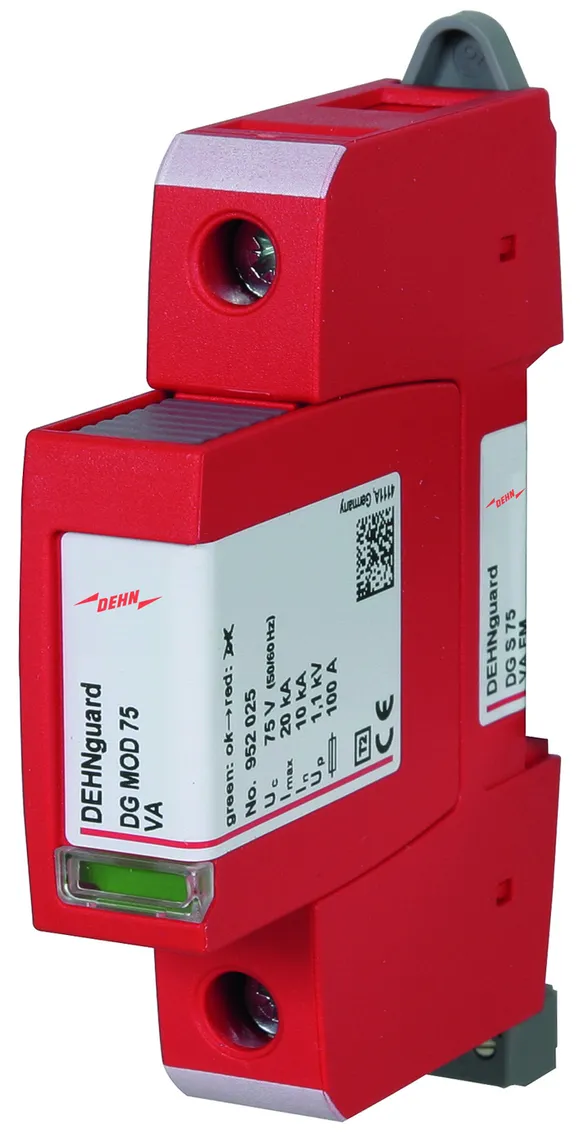

DEHNguard S 75 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication

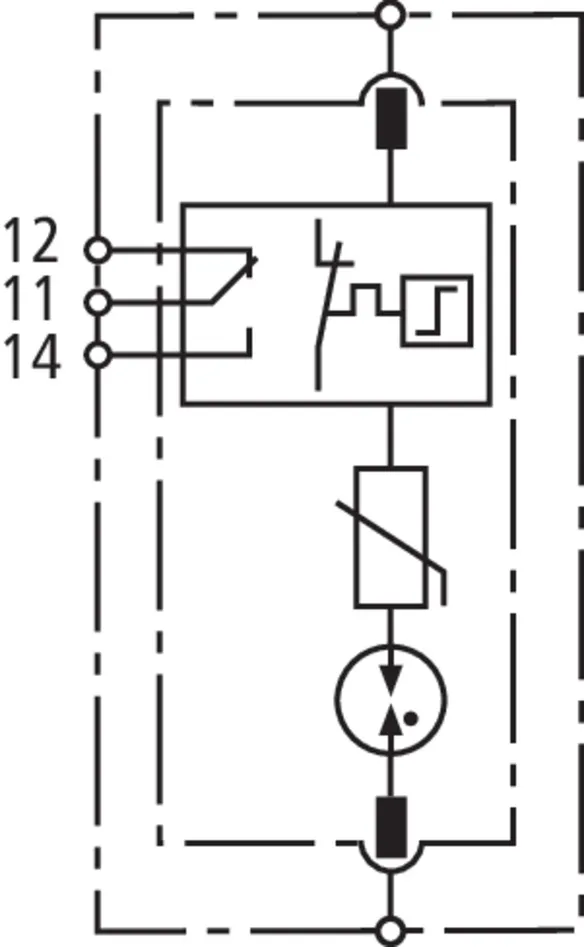

With remote signalling contact
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 75 V a.c./100 V d.c.
Voltage protection level: <= 1.1 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 75 VA FM
Part No.: 952085
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.1 kV
Max. mains-side overcurrent protection	100 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	60 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	100 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.1 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	115 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 952085 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952085 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952087 DG S 275 VA FM

GTIN 4013364127326, CCT (EU): 85363030, Bruttovægt: 126.70 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

CAD filer

DEHNguard S275 VA FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 275 V a.c./350 V d.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 275 VA FM
Part No.: 952087
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	100 A gG


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 V
– Nominal frequency AC (f_N )	16.7 Hz

Produkt 952087 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952087 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952089 DG S 385 VA FM

GTIN 4013364127340, CCT (EU): 85363030, Bruttovægt: 131.70 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

DEHNguard S 385 VA FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Leakage-current-free series connection of a varistor and a spark gap
Max. continuous operating voltage: 385 V a.c./500 V d.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 10 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 385 VA FM
Part No.: 952089
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.75 kV
Max. mains-side overcurrent protection	100 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	500 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.75 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 952089 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952089 blev lagt I kurven.

Gå til webshoppen

Results for products (0)

Results for content (0)

DEHNguard S ... VA

DEHNguard S VA

artikelnr. 952080 DG S 75 VA

Produkt 952080 blev tilføjet til notesblok.

Produkt 952080 blev lagt I kurven.

artikelnr. 952082 DG S 275 VA

Produkt 952082 blev tilføjet til notesblok.

Produkt 952082 blev lagt I kurven.

artikelnr. 952084 DG S 385 VA

Produkt 952084 blev tilføjet til notesblok.

Produkt 952084 blev lagt I kurven.

DEHNguard S VA FM

artikelnr. 952085 DG S 75 VA FM

Produkt 952085 blev tilføjet til notesblok.

Produkt 952085 blev lagt I kurven.

artikelnr. 952087 DG S 275 VA FM

Produkt 952087 blev tilføjet til notesblok.

Produkt 952087 blev lagt I kurven.

artikelnr. 952089 DG S 385 VA FM

Produkt 952089 blev tilføjet til notesblok.

Produkt 952089 blev lagt I kurven.

DEHNguard S ... VA

DEHNguard S VA

artikelnr. 952080 DG S 75 VA

Du er ikke autoriseret til at downloade 952070.stp

Du er ikke autoriseret til at downloade 952070.igs

Du er ikke autoriseret til at downloade 952070.jt

Du er ikke autoriseret til at downloade 952070.dwg

Du er ikke autoriseret til at downloade 952070m_E.dxf

Du er ikke autoriseret til at downloade DEHN.952080.wspak

Du er ikke autoriseret til at downloade DEHN.952080.edz

Produkt 952080 blev tilføjet til notesblok.

Produkt 952080 blev lagt I kurven.

artikelnr. 952082 DG S 275 VA

Du er ikke autoriseret til at downloade 952070.stp

Du er ikke autoriseret til at downloade 952070.igs

Du er ikke autoriseret til at downloade 952070.jt

Du er ikke autoriseret til at downloade 952070.dwg

Du er ikke autoriseret til at downloade 952070m_E.dxf

Du er ikke autoriseret til at downloade DEHN.952082.wspak

Du er ikke autoriseret til at downloade DEHN.952082.edz

Produkt 952082 blev tilføjet til notesblok.

Produkt 952082 blev lagt I kurven.

artikelnr. 952084 DG S 385 VA

Du er ikke autoriseret til at downloade 952070.stp

Du er ikke autoriseret til at downloade 952070.igs

Du er ikke autoriseret til at downloade 952070.jt

Du er ikke autoriseret til at downloade 952070.dwg

Du er ikke autoriseret til at downloade 952070m_E.dxf

Du er ikke autoriseret til at downloade DEHN.952084.wspak

Du er ikke autoriseret til at downloade DEHN.952084.edz

Produkt 952084 blev tilføjet til notesblok.

Produkt 952084 blev lagt I kurven.

DEHNguard S VA FM

artikelnr. 952085 DG S 75 VA FM

Du er ikke autoriseret til at downloade 952090.stp

Du er ikke autoriseret til at downloade 952090.igs

Du er ikke autoriseret til at downloade 952090.jt

Du er ikke autoriseret til at downloade 952090.dwg

Du er ikke autoriseret til at downloade 952090m_E.dxf

Du er ikke autoriseret til at downloade DEHN.952085.wspak

Du er ikke autoriseret til at downloade DEHN.952085.edz

Produkt 952085 blev tilføjet til notesblok.

Produkt 952085 blev lagt I kurven.

artikelnr. 952087 DG S 275 VA FM

Du er ikke autoriseret til at downloade 952090.stp

Du er ikke autoriseret til at downloade 952090.igs

Du er ikke autoriseret til at downloade 952090.jt

Du er ikke autoriseret til at downloade 952090.dwg

Du er ikke autoriseret til at downloade 952090m_E.dxf

Du er ikke autoriseret til at downloade DEHN.952087.wspak

Du er ikke autoriseret til at downloade DEHN.952087.edz

Produkt 952087 blev tilføjet til notesblok.

Produkt 952087 blev lagt I kurven.

artikelnr. 952089 DG S 385 VA FM

Du er ikke autoriseret til at downloade 952090.stp

Du er ikke autoriseret til at downloade 952090.igs

Du er ikke autoriseret til at downloade 952090.jt

Du er ikke autoriseret til at downloade 952090.dwg

Du er ikke autoriseret til at downloade 952090m_E.dxf

Du er ikke autoriseret til at downloade DEHN.952089.wspak

Du er ikke autoriseret til at downloade DEHN.952089.edz

Produkt 952089 blev tilføjet til notesblok.

Produkt 952089 blev lagt I kurven.
