DEHNcombo

Prewired type 1 + type 2 combined lightning current and surge arrester for use in photovoltaic generator circuits
Approved fault-resistant Y circuit prevents damage to the surge protective device in case of insulation faults in the generator circuit
Rated voltage is the same for all modes of protection and, therefore, the arrester can also be used in earthed systems
Space-saving enclosure with a width of only four modules for up to 1500 V d.c.
Tested to IEC 61643-31 / EN 61643-31 / EN 50539-11
Applicable in PV systems in accordance with IEC 60364-7-712
Operating state / fault indication by green / red indicator flag in the inspection window

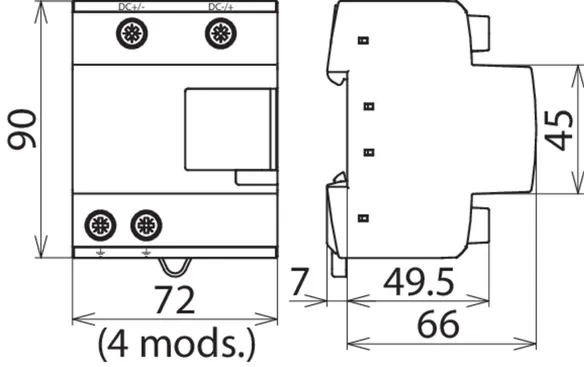

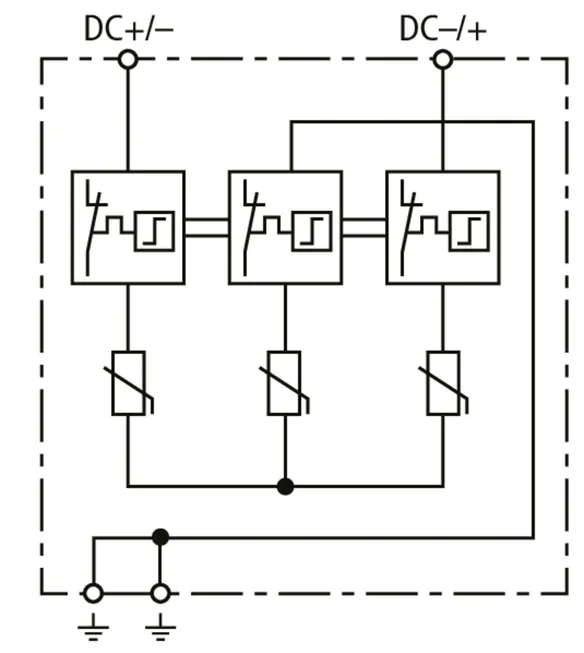

DEHNcombo YPV ...

Combined lightning current and surge arrester for use in photovoltaic power supply systems up to 1500 V d.c.

2 produkter

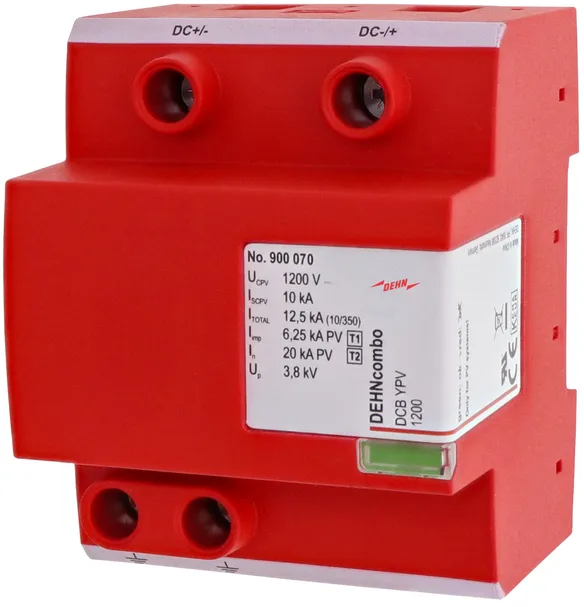

artikelnr. 900070 DCB YPV 1200

GTIN 6942299504521, CCT (EU): 85354000, Bruttovægt: 639.16 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

CAD filer

DEHNcombo YPV 1200 combined arrester
Multipole type 1 + type 2 combined arrester
for PV generator circuits up to 1200 V d.c.
with three-step d.c. switching device, width: 4 modules
Type 1 + type 2 arrester according to EN 50539-11
For use according to IEC 60364-7-712
Combined disconnection and short-circuiting device
Fault indication
Maximum PV voltage: <= 1200 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 3.8 kV
Short-circuit current rating Iscpv: 10 kA

Brand: DEHN
Type: DCB YPV 1200
Part No.: 900070
or equivalent.

Certificater

Teksniske data

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Approvals	KEMA, UL

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 3.8 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA, UL
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part. No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Produkt 900070 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900070 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900071 DCB YPV 1500

GTIN 6942299504545, CCT (EU): 85354000, Bruttovægt: 636.22 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

CAD filer

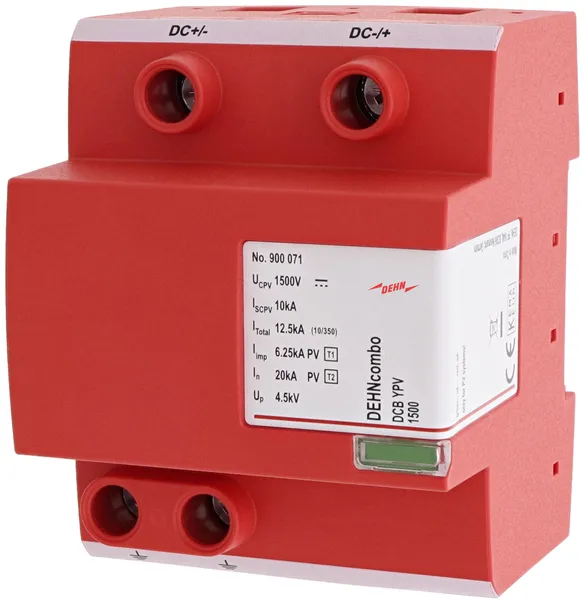

DEHNcombo YPV 1500 combined arrester
Multipole type 1 + type 2 combined arrester
for PV generator circuits up to 1500 V d.c.
with three-step d.c. switching device, width: 4 modules
Type 1 + type 2 arrester according to EN 50539-11
For use according to IEC 60364-7-712
Combined disconnection and short-circuiting device
Fault indication
Maximum PV voltage: <= 1500 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 4.5 kV
Short-circuit current rating Iscpv: 10 kA
Fault indication

Brand: DEHN
Type: DCB YPV 1500
Part No.: 900071
or equivalent.

Certificater

Teksniske data

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 4.5 kV
Approvals	KEMA, UL

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1500 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	≤ 1500 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 4.5 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 4.5 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA, UL
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part. No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Produkt 900071 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900071 blev lagt I kurven.

Gå til webshoppen

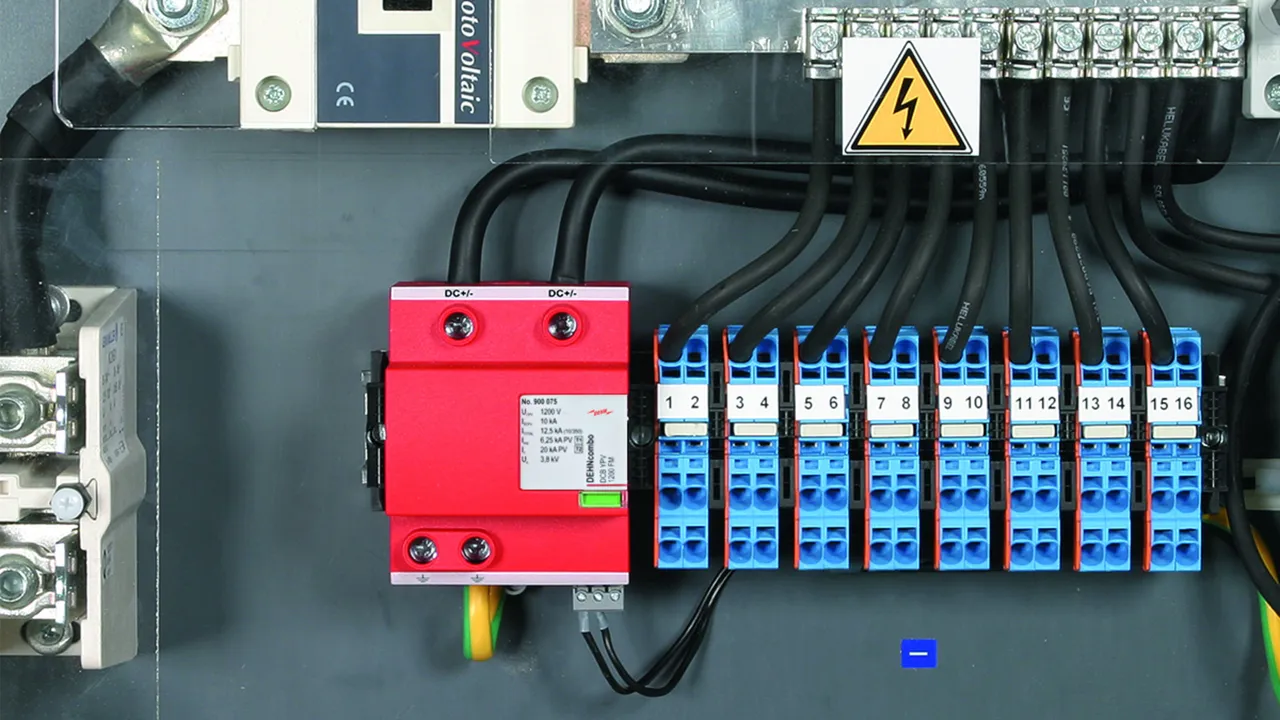

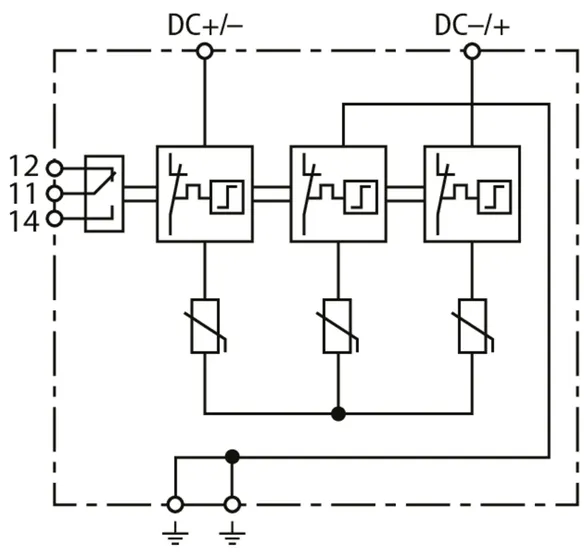

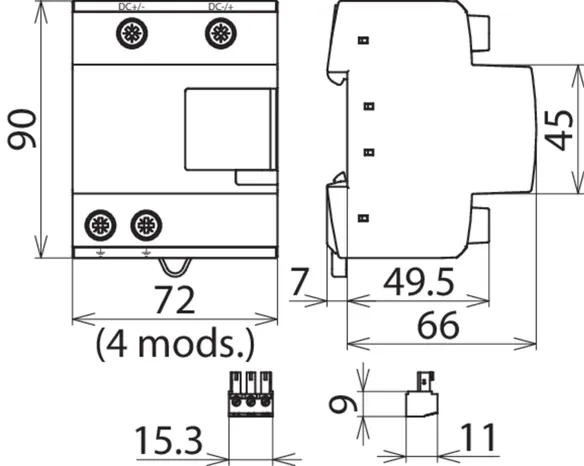

DEHNcombo YPV ... FM

Combined lightning current and surge arrester for use in photovoltaic power supply systems up to 1500 V d.c.; with floating remote signalling contact.

2 produkter

artikelnr. 900075 DCB YPV 1200 FM

GTIN 6942299504538, CCT (EU): 85354000, Bruttovægt: 587.94 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

CAD filer

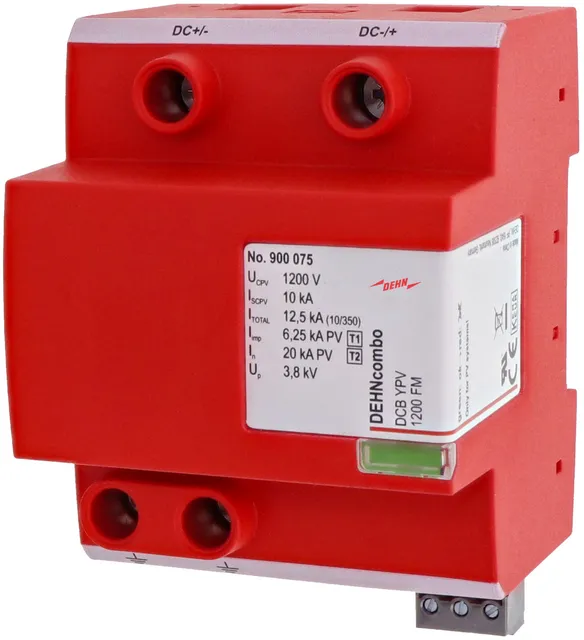

DEHNcombo YPV 1200 FM combined arrester
Multipole type 1 + type 2 combined arrester
for PV generator circuits up to 1200 V d.c.
with three-step d.c. switching device, width: 4 modules
Type 1 + type 2 arrester according to EN 50539-11
For use according to IEC 60364-7-712
Combined disconnection and short-circuiting device
With remote signalling contact
Fault indication
Maximum PV voltage: <= 1200 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 3.8 kV
Short-circuit current rating Iscpv: 10 kA
Fault indication

Brand: DEHN
Type: DCB YPV 1200 FM
Part No.: 900075
or equivalent.

Certificater

Teksniske data

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Approvals	KEMA, UL
Type of remote signalling contact	Changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 3.8 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Produkt 900075 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900075 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900076 DCB YPV 1500 FM

GTIN 6942299504552, CCT (EU): 85354000, Bruttovægt: 638.51 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

CAD filer

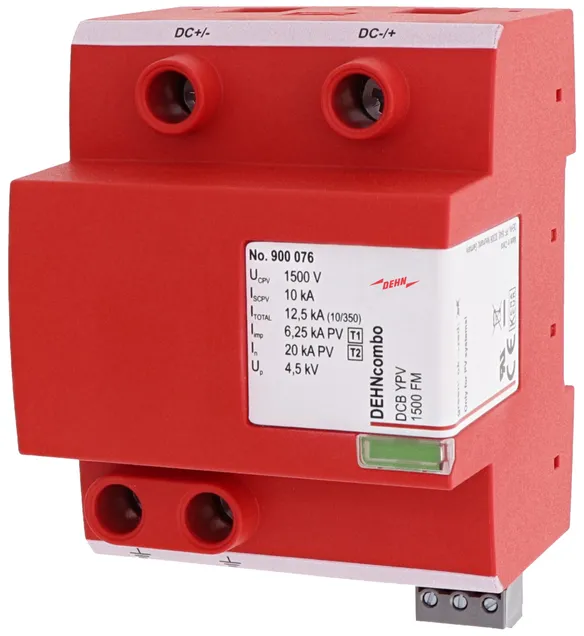

DEHNcombo YPV 1500 FM combined arrester
Multipole type 1 + type 2 combined arrester
for PV generator circuits up to 1500 V d.c.
with three-step d.c. switching device, width: 4 modules
Type 1 + type 2 arrester according to EN 50539-11
For use according to IEC 60364-7-712
Combined disconnection and short-circuiting device
With remote signalling contact
Fault indication
Maximum PV voltage: <= 1500 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 4.5 kV
Short-circuit current rating Iscpv: 10 kA
Fault indication

Brand: DEHN
Type: DCB YPV 1500 FM
Part No.: 900076
or equivalent.

Certificater

Teksniske data

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 4.5 kV
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1500 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	≤ 1500 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 4.5 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 4.5 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Produkt 900076 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900076 blev lagt I kurven.

Gå til webshoppen

Results for products (0)

Results for content (0)

DEHNcombo

DEHNcombo YPV ...

artikelnr. 900070 DCB YPV 1200

Produkt 900070 blev tilføjet til notesblok.

Produkt 900070 blev lagt I kurven.

artikelnr. 900071 DCB YPV 1500

Produkt 900071 blev tilføjet til notesblok.

Produkt 900071 blev lagt I kurven.

DEHNcombo YPV ... FM

artikelnr. 900075 DCB YPV 1200 FM

Produkt 900075 blev tilføjet til notesblok.

Produkt 900075 blev lagt I kurven.

artikelnr. 900076 DCB YPV 1500 FM

Produkt 900076 blev tilføjet til notesblok.

Produkt 900076 blev lagt I kurven.

DEHNcombo

DEHNcombo YPV ...

artikelnr. 900070 DCB YPV 1200

Du er ikke autoriseret til at downloade 900060.stp

Du er ikke autoriseret til at downloade 900060.igs

Du er ikke autoriseret til at downloade 900060.jt

Du er ikke autoriseret til at downloade 900060.dwg

Du er ikke autoriseret til at downloade 900060m_E.dxf

Du er ikke autoriseret til at downloade 900070_eplan.zip

Du er ikke autoriseret til at downloade DEHN.900070.wspak

Produkt 900070 blev tilføjet til notesblok.

Produkt 900070 blev lagt I kurven.

artikelnr. 900071 DCB YPV 1500

Du er ikke autoriseret til at downloade 900060.stp

Du er ikke autoriseret til at downloade 900060.igs

Du er ikke autoriseret til at downloade 900060.jt

Du er ikke autoriseret til at downloade 900060.dwg

Du er ikke autoriseret til at downloade 900060m_E.dxf

Du er ikke autoriseret til at downloade DEHN.900060.edz

Du er ikke autoriseret til at downloade DEHN.900071.wspak

Produkt 900071 blev tilføjet til notesblok.

Produkt 900071 blev lagt I kurven.

DEHNcombo YPV ... FM

artikelnr. 900075 DCB YPV 1200 FM

Du er ikke autoriseret til at downloade 900065.stp

Du er ikke autoriseret til at downloade 900065.igs

Du er ikke autoriseret til at downloade 900065.jt

Du er ikke autoriseret til at downloade 900065.dwg

Du er ikke autoriseret til at downloade 900065m_E.dxf

Du er ikke autoriseret til at downloade 900075_eplan.zip

Du er ikke autoriseret til at downloade DEHN.900075.wspak

Produkt 900075 blev tilføjet til notesblok.

Produkt 900075 blev lagt I kurven.

artikelnr. 900076 DCB YPV 1500 FM

Du er ikke autoriseret til at downloade 900065.stp

Du er ikke autoriseret til at downloade 900065.igs

Du er ikke autoriseret til at downloade 900065.jt

Du er ikke autoriseret til at downloade 900065.dwg

Du er ikke autoriseret til at downloade 900065m_E.dxf

Du er ikke autoriseret til at downloade DEHN.900065.edz

Du er ikke autoriseret til at downloade DEHN.900076.wspak

Produkt 900076 blev tilføjet til notesblok.

Produkt 900076 blev lagt I kurven.
