artikelnr. 900780 SPD+POP 2 255 C25

GTIN 4013364156203, CCT (EU): 85363030, Bruttovægt: 404.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

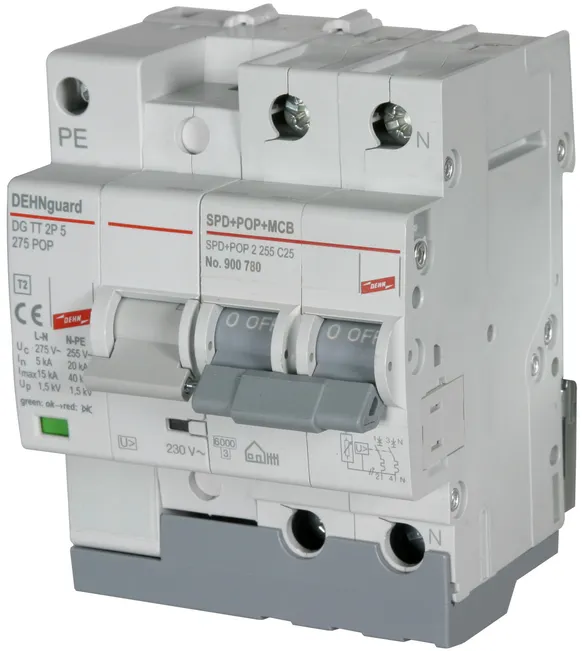

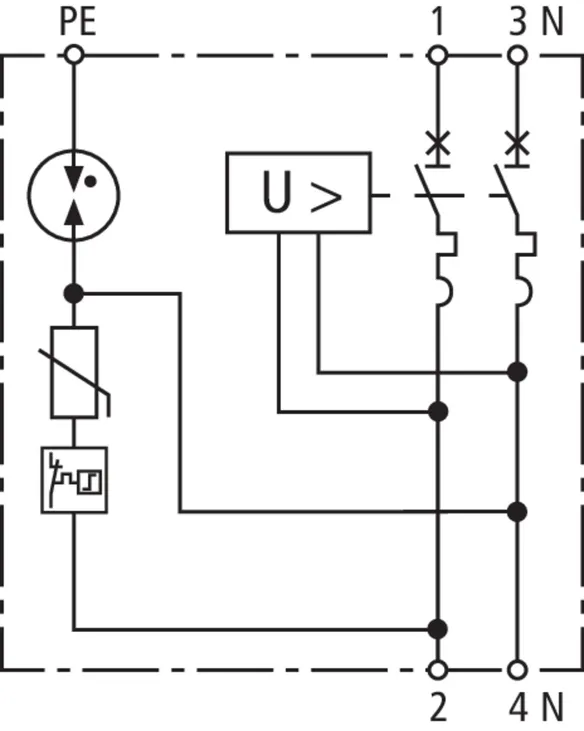

Surge arrester SPD+POP 2 255 C25
Compact surge arrester for transients and
mains-frequency surges with integrated
miniature circuit breaker
Type 2 SPD according to EN 61643-11,
POP according to EN 50550
Comprehensive protection against transients and
mains-frequency surges
Prewired complete unit, the individual devices
do not have to be additionally wired
Number of poles 1P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication

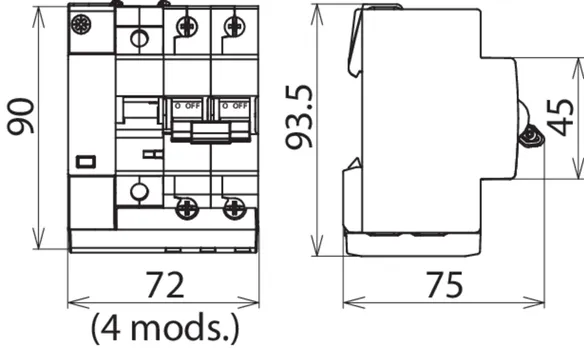

DIN rail mounted device according to DIN 43880, 4 modules

Brand: DEHN
Type: SPD+POP 2 255 C25
Part No.: 900780
or equivalent.

Certificater

Tekniske data

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / flexible
Cross-sectional area (L, N) (max.)	16 mm²flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm²solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm²solid
Degree of protection protection	IP 20
Capacity	4 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
SPD according to IEC 61643-11	class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900780 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900780 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900781 SPD+POP 2 255 C32

GTIN 4013364156210, CCT (EU): 85363030, Bruttovægt: 425.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

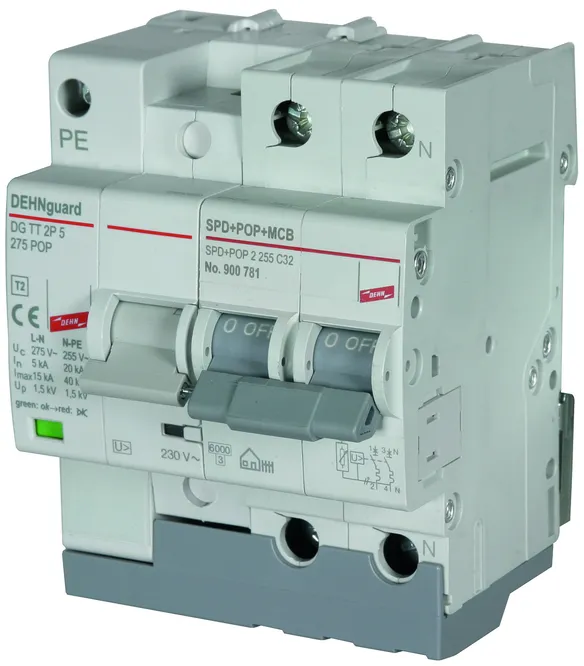

Surge arrester SPD+POP 2 255 C32
Compact surge arrester for transients and mains-frequency
surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and
mains-frequency surges
Prewired complete unit, the individual devices do not
have to be additionally wired
Number of poles 1P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 4 modules

Brand: DEHN
Type: SPD+POP 2 255 C32
Part No.: 900781
or equivalent.

Certificater

Tekniske data

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	4 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900781 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900781 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900782 SPD+POP 2 255 C40

GTIN 4013364156227, CCT (EU): 85363030, Bruttovægt: 424.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

Surge arrester SPD+POP 2 255 C40
Compact surge arrester for transients and mains-frequency
surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and
mains-frequency surges
Prewired complete unit, the individual devices do not have to
be additionally wired
Number of poles 1P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 4 modules

Brand: DEHN
Type: SPD+POP 2 255 C40
Part No.: 900782
or equivalent.

Certificater

Tekniske data

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	4 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900782 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900782 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900785 SPD+POP 4 255 C25

GTIN 4013364156234, CCT (EU): 85363030, Bruttovægt: 730.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

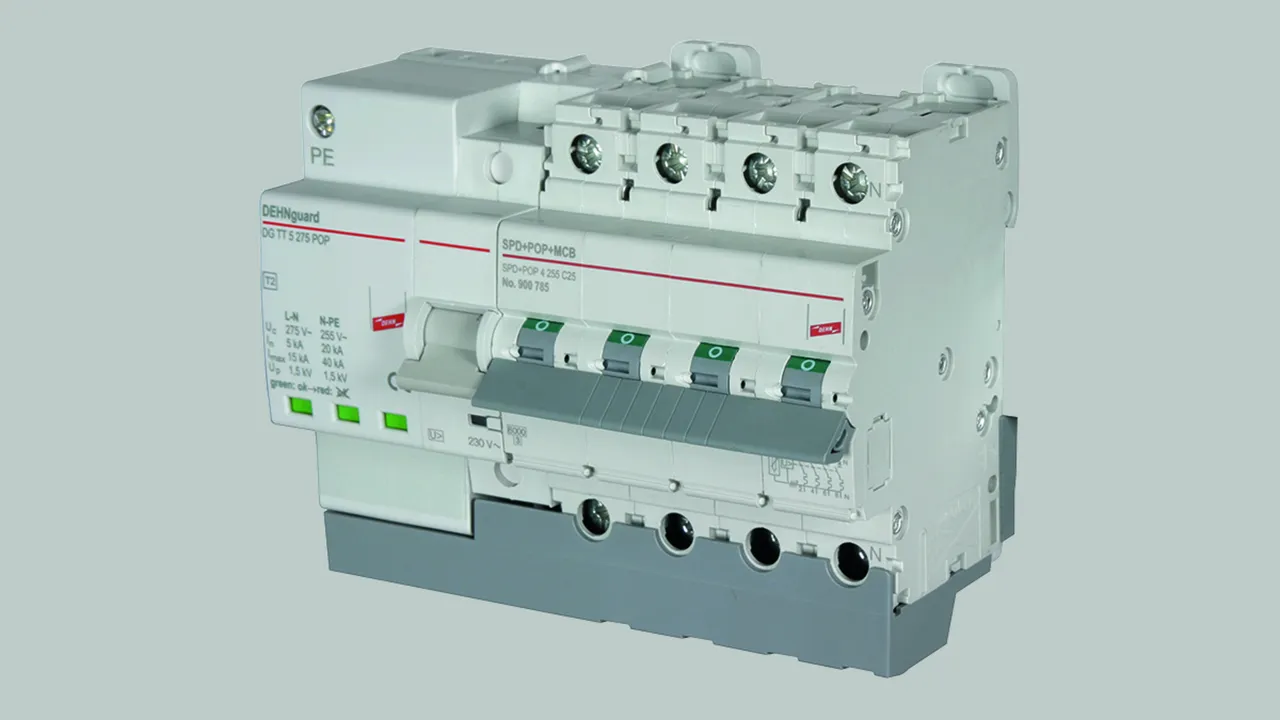

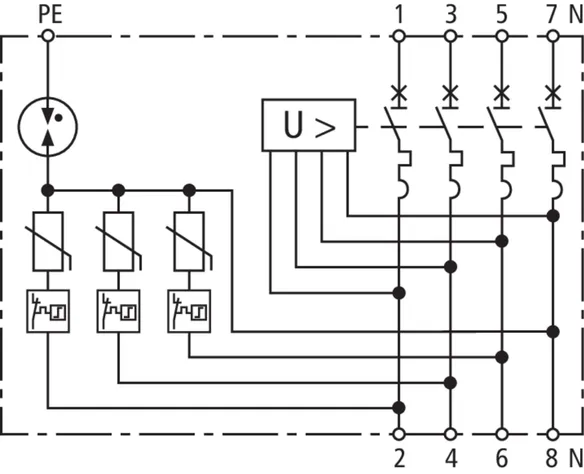

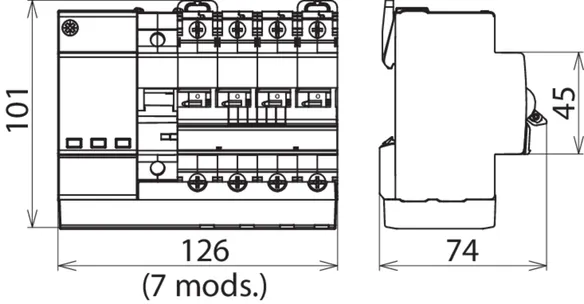

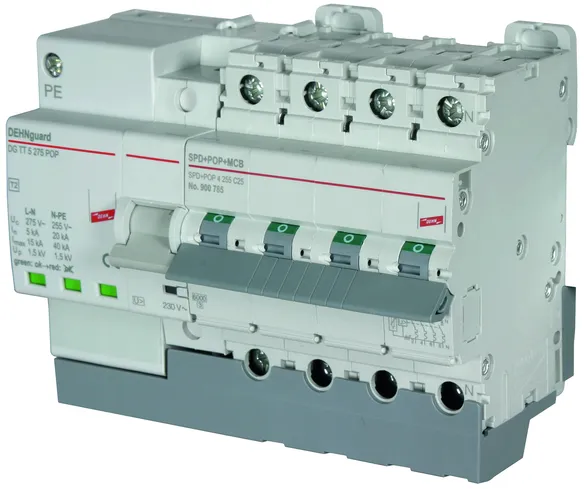

Surge arrester SPD+POP 4 255 C25
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C25
Part No.: 900785
or equivalent.

Certificater

Tekniske data

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm²flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900785 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900785 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900786 SPD+POP 4 255 C32

GTIN 4013364156241, CCT (EU): 85363030, Bruttovægt: 763.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

Surge arrester SPD+POP 4 255 C32
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C32
Part No.: 900786
or equivalent.

Certificater

Tekniske data

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900786 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900786 blev lagt I kurven.

Gå til webshoppen

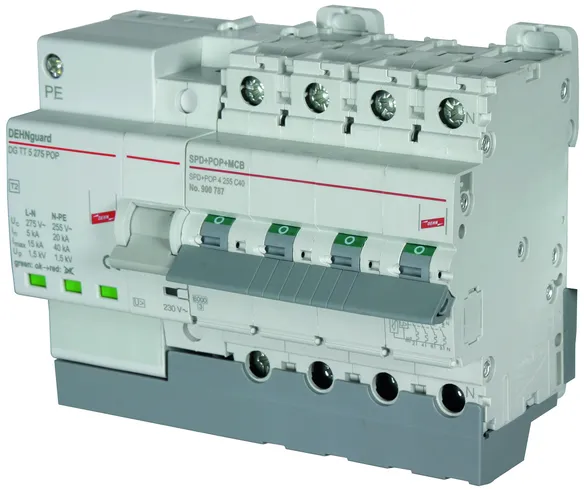

artikelnr. 900787 SPD+POP 4 255 C40

GTIN 4013364156258, CCT (EU): 85363030, Bruttovægt: 769.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

Surge arrester SPD+POP 4 255 C40
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C40
Part No.: 900787
or equivalent.

Certificater

Tekniske data

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm²stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900787 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900787 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900788 SPD+POP 4 255 C63

GTIN 4013364156265, CCT (EU): 85363030, Bruttovægt: 773.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

Surge arrester SPD+POP 4 255 C63
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 63 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C63
Part No.: 900788
or equivalent.

Certificater

Tekniske data

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	63 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	63 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900788 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900788 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900760 POP 2 255 C25

GTIN 4013364156135, CCT (EU): 85363030, Bruttovægt: 297.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

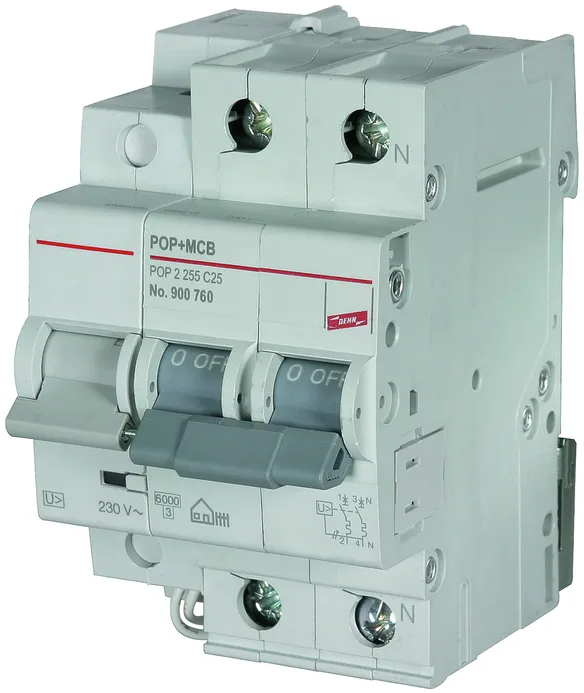

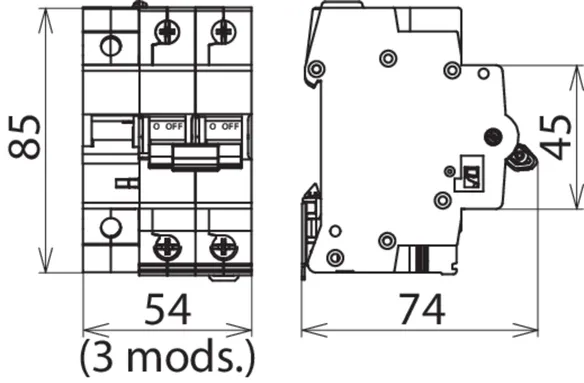

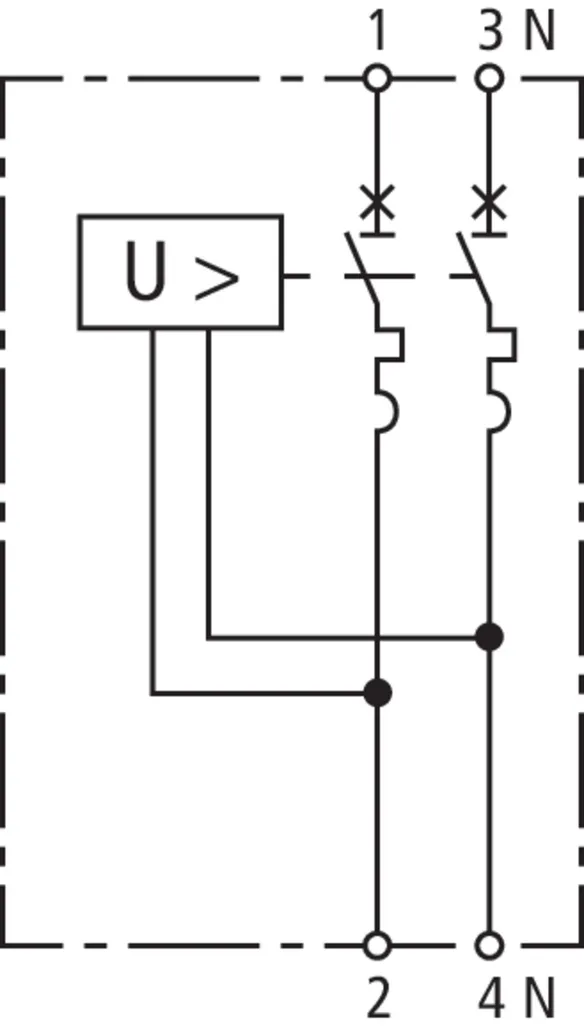

Protective device POP 2 255 C25
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 1P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 3 modules

Brand: DEHN
Type: POP 2 255 C25
Part No.: 900760
or equivalent.

Certificater

Tekniske data

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	3 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900760 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900760 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900761 POP 2 255 C32

GTIN 4013364156142, CCT (EU): 85363030, Bruttovægt: 317.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

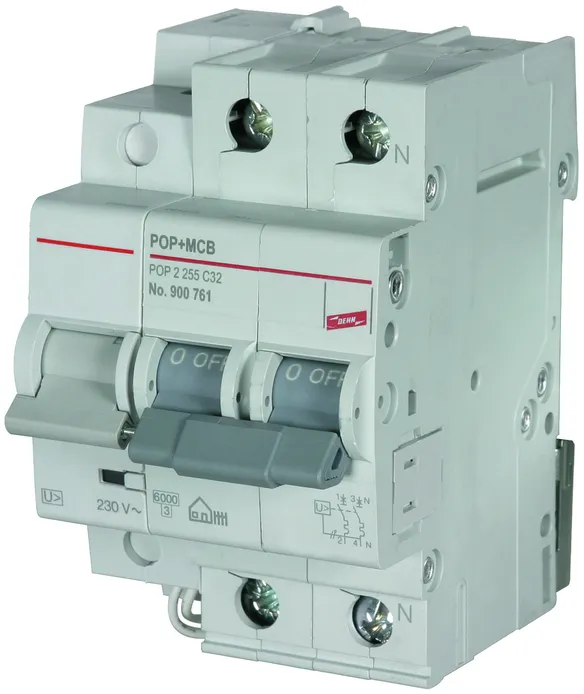

Protective device POP 2 255 C32
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 1P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 3 modules

Brand: DEHN
Type: POP 2 255 C32
Part No.: 900761
or equivalent.

Certificater

Tekniske data

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	3 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900761 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900761 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900762 POP 2 255 C40

GTIN 4013364156159, CCT (EU): 85363030, Bruttovægt: 317.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

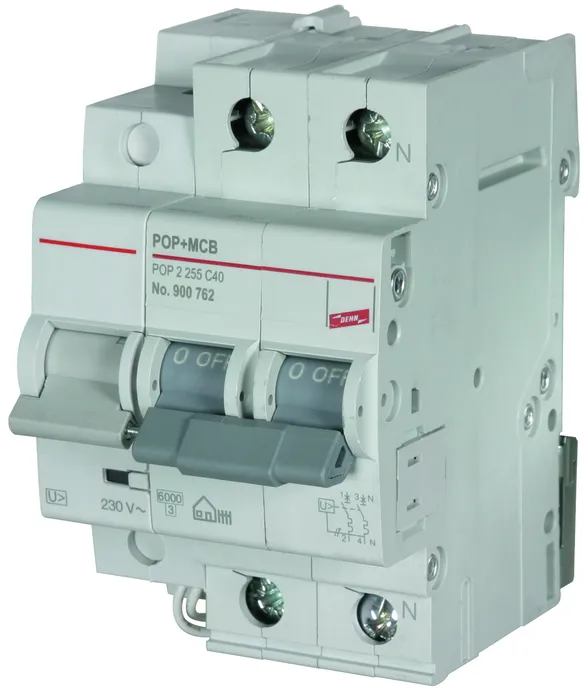

Protective device POP 2 255 C40
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 1P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 3 modules

Brand: DEHN
Type: POP 2 255 C40
Part No.: 900762
or equivalent.

Certificater

Tekniske data

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	3 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900762 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900762 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900765 POP 4 255 C25

GTIN 4013364156166, CCT (EU): 85363030, Bruttovægt: 547.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

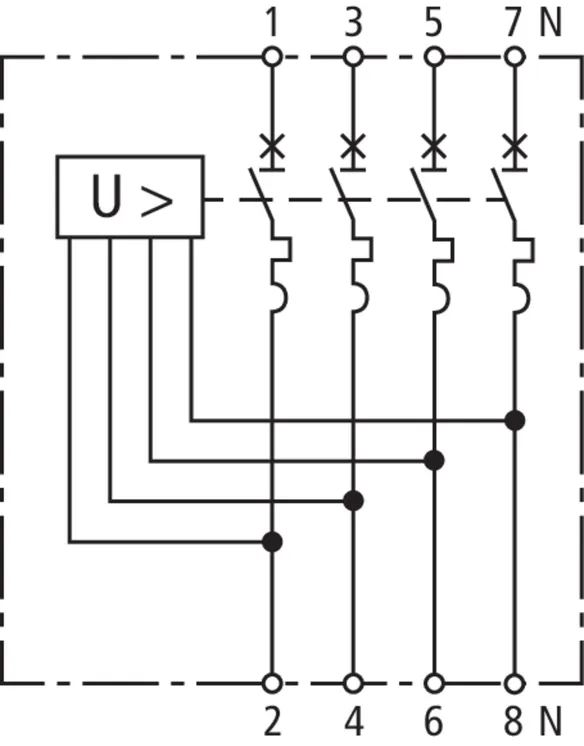

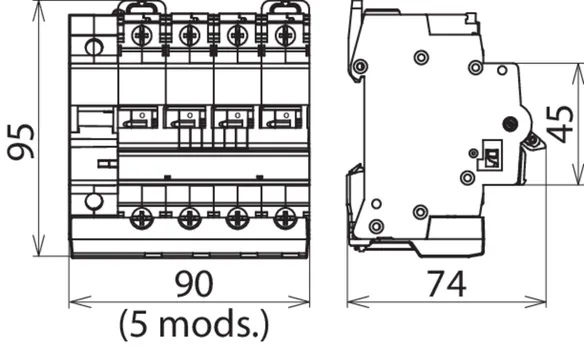

Protective device POP 4 255 C25
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C25
Part No.: 900765
or equivalent.

Certificater

Tekniske data

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900765 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900765 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900766 POP 4 255 C32

GTIN 4013364156173, CCT (EU): 85363030, Bruttovægt: 580.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

Protective device POP 4 255 C32
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C32
Part No.: 900766
or equivalent.

Certificater

Tekniske data

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²solid / fine-stranded
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900766 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900766 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900767 POP 4 255 C40

GTIN 4013364156180, CCT (EU): 85363030, Bruttovægt: 586.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

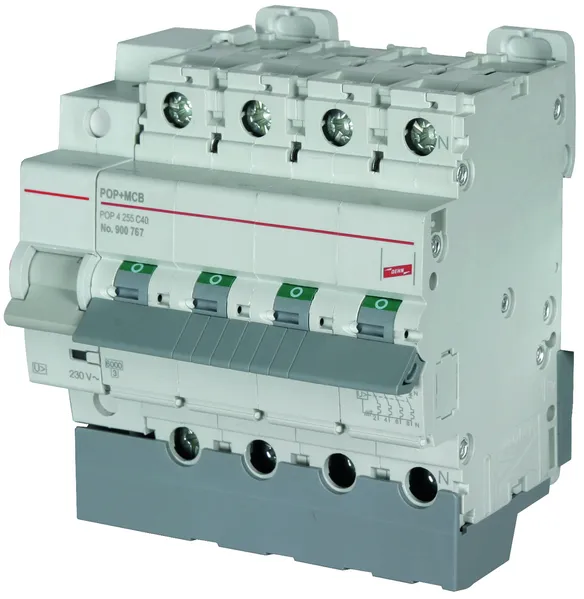

Protective device POP 4 255 C40
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C40
Part No.: 900767
or equivalent.

Certificater

Tekniske data

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²solid / fine-stranded
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900767 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900767 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900768 POP 4 255 C63

GTIN 4013364156197, CCT (EU): 85363030, Bruttovægt: 591.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

Protective device POP 4 255 C63
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 63 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C63
Part No.: 900768
or equivalent.

Certificater

Tekniske data

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	63 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²solid / fine-stranded
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	63 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900768 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900768 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900720 DEHNduo POP SA 3P 230

GTIN 4013364477377, CCT (EU): 85363030, Bruttovægt: 175.44 g, VPE: 1.00 pc(s)

billeder

Yderligere information

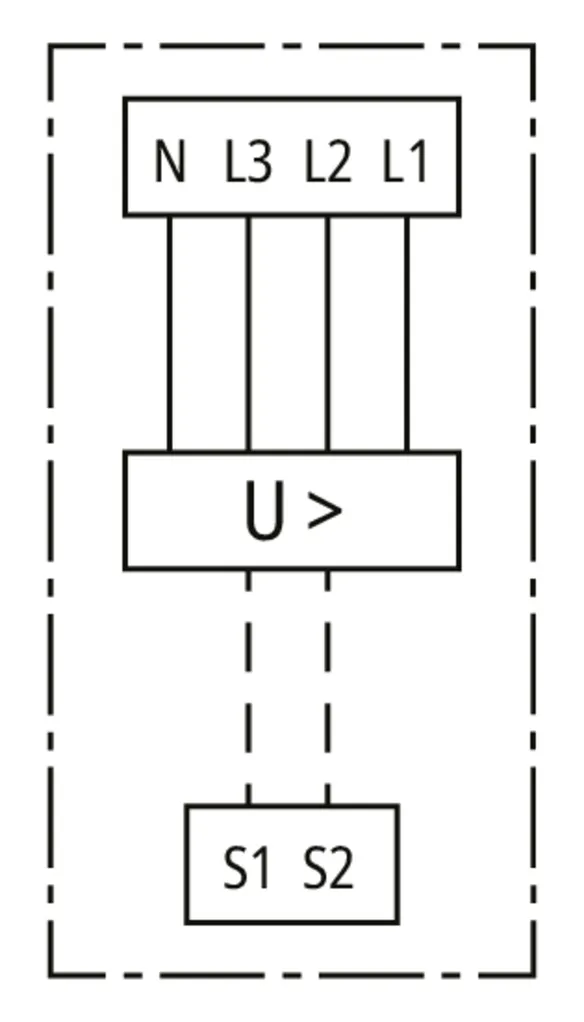

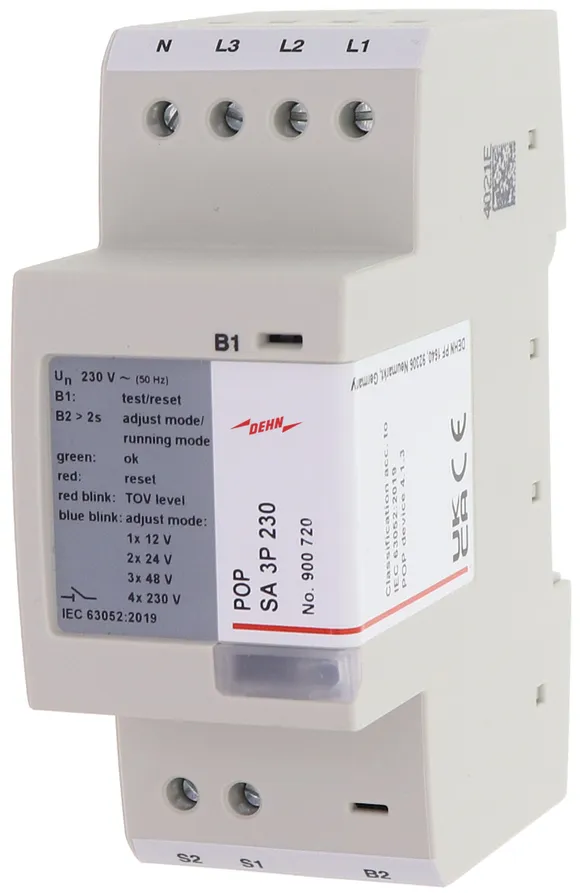

Protective device POP SA 3P 230
Protective device for
power-frequency overvoltages
for the triggering of external
circuit breakers
POP as per IEC 63052 cat. 4.1.3S2
Number pf poles 3P + N
Adjustable output switching signal
from 12V – 230V

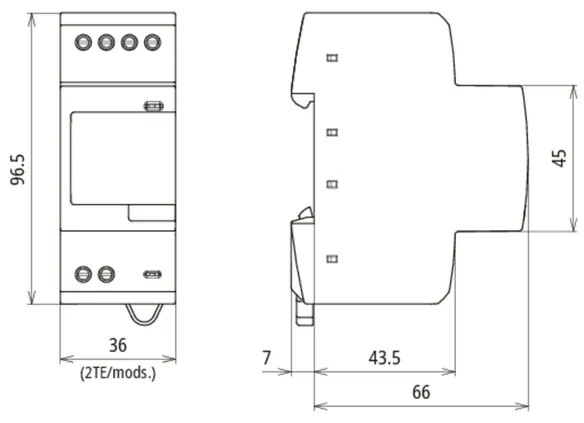

DIN rail mounted device according to
DIN 43880, 2 modules

Brand: DEHN
Type: DEHNduo POP SA 3P 230
Part No.: 900720
or equivalent.

Tekniske data

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	440 V
Tripping time at 275 V a.c.	9 sec
Tripping time at 300 V AC	3 sec
Tripping time at 350 V AC	0.5 sec
DC breaking capacity_out 50 ms	230 V / 1 A; 48 V / 3 A; 24 V / 5 A; 12 V / 5 A
Power consumption	500 mW

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-5°C to +45°C
Cross-sectional area (L1, L2, L3, N) (min.)	0.5 mm²solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²flexible / 4 mm²solid
Degree of protection protection	IP 20
Capacity	2 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
Status indication	RGB LED
POP
Tested to	IEC 63052 cat. 4.1.3S2
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	440 V
Tripping time at 400 V a.c.	140 ms
Tripping time at 275 V a.c.	9 sec
Tripping time at 300 V AC	3 sec
Tripping time at 350 V AC	0.5 sec
DC breaking capacity_out 50 ms	230 V / 1 A; 48 V / 3 A; 24 V / 5 A; 12 V / 5 A
Power consumption	500 mW

Produkt 900720 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900720 blev lagt I kurven.

Gå til webshoppen

SPD+POP+MCB / POP+MCB / POP

Two-pole SPD+POP+MCB

artikelnr. 900780 SPD+POP 2 255 C25

Du er ikke autoriseret til at downloade 900780.stp

Du er ikke autoriseret til at downloade 900780.igs

Du er ikke autoriseret til at downloade 900780.jt

Du er ikke autoriseret til at downloade 900780.dwg

Du er ikke autoriseret til at downloade 900780m_E.dxf

Produkt 900780 blev tilføjet til notesblok.

Produkt 900780 blev lagt I kurven.

artikelnr. 900781 SPD+POP 2 255 C32

Du er ikke autoriseret til at downloade 900781.stp

Du er ikke autoriseret til at downloade 900781.igs

Du er ikke autoriseret til at downloade 900781.jt

Du er ikke autoriseret til at downloade 900781.dwg

Du er ikke autoriseret til at downloade 900780m_E.dxf

Produkt 900781 blev tilføjet til notesblok.

Produkt 900781 blev lagt I kurven.

artikelnr. 900782 SPD+POP 2 255 C40

Du er ikke autoriseret til at downloade 900782.stp

Du er ikke autoriseret til at downloade 900782.igs

Du er ikke autoriseret til at downloade 900782.jt

Du er ikke autoriseret til at downloade 900782.dwg

Du er ikke autoriseret til at downloade 900780m_E.dxf

Produkt 900782 blev tilføjet til notesblok.

Produkt 900782 blev lagt I kurven.

Four-pole SPD+POP+MCB

artikelnr. 900785 SPD+POP 4 255 C25

Du er ikke autoriseret til at downloade 900785.stp

Du er ikke autoriseret til at downloade 900786.igs

Du er ikke autoriseret til at downloade 900785.jt

Du er ikke autoriseret til at downloade 900785.dwg

Du er ikke autoriseret til at downloade 900785m_E.dxf

Produkt 900785 blev tilføjet til notesblok.

Produkt 900785 blev lagt I kurven.

artikelnr. 900786 SPD+POP 4 255 C32

Du er ikke autoriseret til at downloade 900786.stp

Du er ikke autoriseret til at downloade 900786.igs

Du er ikke autoriseret til at downloade 900786.jt

Du er ikke autoriseret til at downloade 900786.dwg

Du er ikke autoriseret til at downloade 900785m_E.dxf

Produkt 900786 blev tilføjet til notesblok.

Produkt 900786 blev lagt I kurven.

artikelnr. 900787 SPD+POP 4 255 C40

Du er ikke autoriseret til at downloade 900787.stp

Du er ikke autoriseret til at downloade 900787.igs

Du er ikke autoriseret til at downloade 900787.jt

Du er ikke autoriseret til at downloade 900787.dwg

Du er ikke autoriseret til at downloade 900785m_E.dxf

Produkt 900787 blev tilføjet til notesblok.

Produkt 900787 blev lagt I kurven.

artikelnr. 900788 SPD+POP 4 255 C63

Du er ikke autoriseret til at downloade 900788.stp

Du er ikke autoriseret til at downloade 900788.igs

Du er ikke autoriseret til at downloade 900788.jt

Du er ikke autoriseret til at downloade 900788.dwg

Du er ikke autoriseret til at downloade 900785m_E.dxf

Produkt 900788 blev tilføjet til notesblok.

Produkt 900788 blev lagt I kurven.

Two-pole POP+MCB

artikelnr. 900760 POP 2 255 C25

Du er ikke autoriseret til at downloade 900760.stp

Du er ikke autoriseret til at downloade 900760.igs

Du er ikke autoriseret til at downloade 900760.jt

Du er ikke autoriseret til at downloade 900761.dwg

Du er ikke autoriseret til at downloade 900760m_E.dxf

Produkt 900760 blev tilføjet til notesblok.

Produkt 900760 blev lagt I kurven.

artikelnr. 900761 POP 2 255 C32

Du er ikke autoriseret til at downloade 900761.stp

Du er ikke autoriseret til at downloade 900761.igs

Du er ikke autoriseret til at downloade 900761.jt

Du er ikke autoriseret til at downloade 900761.dwg

Du er ikke autoriseret til at downloade 900760m_E.dxf

Produkt 900761 blev tilføjet til notesblok.

Produkt 900761 blev lagt I kurven.

artikelnr. 900762 POP 2 255 C40

Du er ikke autoriseret til at downloade 900762.stp

Du er ikke autoriseret til at downloade 900762.igs

Du er ikke autoriseret til at downloade 900762.jt
