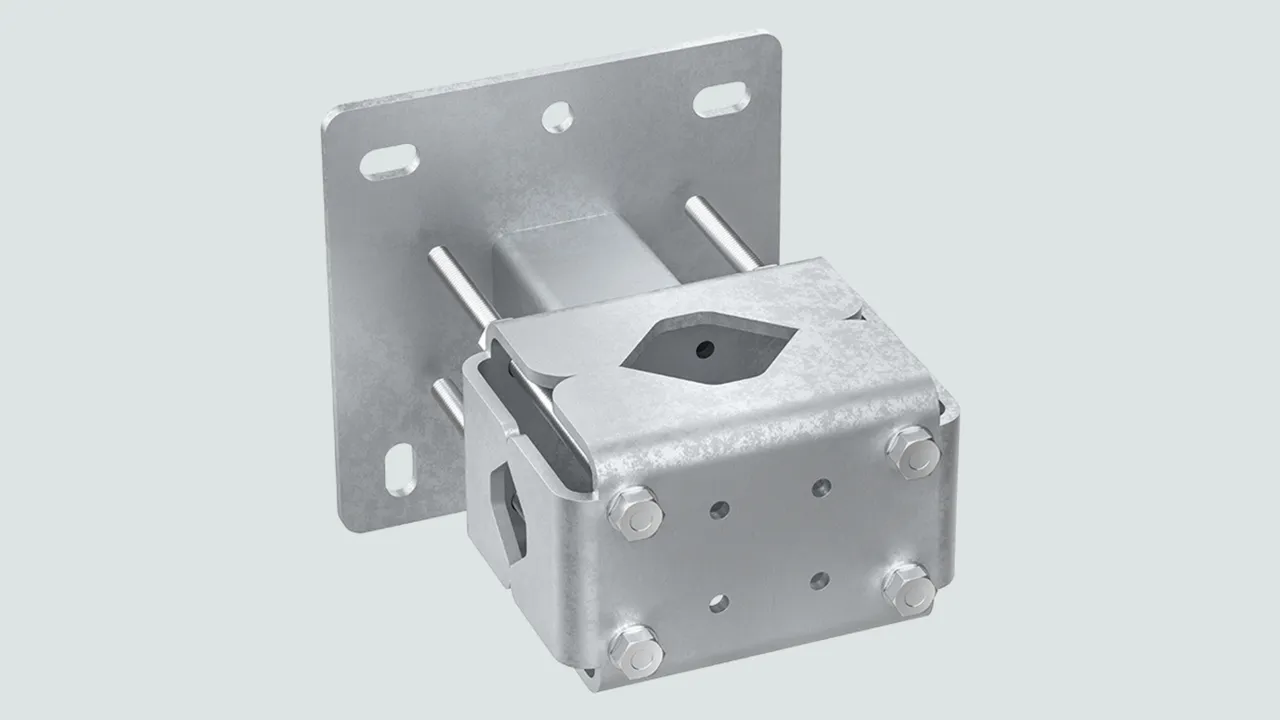

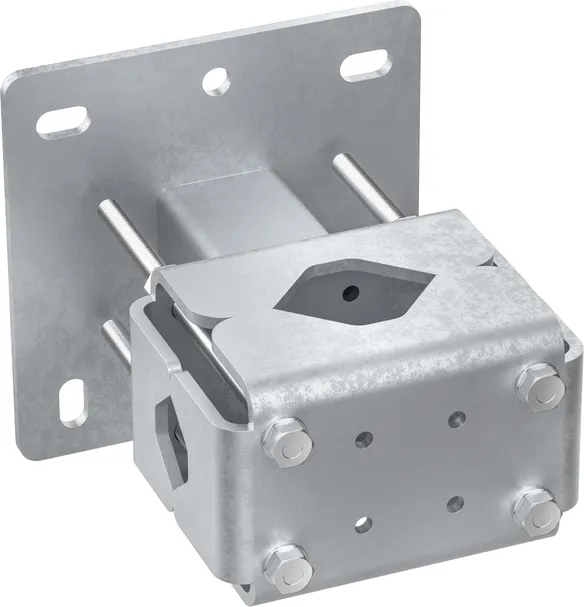

Mast holder, heavy version

For erecting air-termination systems on installations, such as biogas plants

The heavy version of the mast holder enables the mounting of air-termination masts with a diameter of Ø40-50 mm (upright) and Ø55-100 mm (transverse).

For erecting air-termination systems on installations, such as biogas plantsThe heavy version of the mast holder enables the mounting of air-termination masts with a diameter of Ø55–100 mm

  • Ø40-50 mm mounted upright
  • Ø50-100 mm mounted transversally

1 produkt

artikelnr. 105352 WB D55.100 SE WA150 STTZN

GTIN 4013364502727, CCT (EU): 85389099, Bruttovægt: 5.36 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

HDG steel mast attachment for wall mounting
Mast attachment for wall mounting
for the fixing of air-termination masts
Ø40-50 mm (upright) and
Ø55-100 mm (transverse)
to the structure to be protected
or to a wall
(single installation also possible)
Material: HDG steel
Fixing: [4x] Ø14 mm
Distance from wall: 106 mm
Clamping range (Ø mast): 40-50 mm (upright) and 55-100 mm (transverse)
Material of threaded rod / nut / washer: StSt

Brand: DEHN
Type: WB D55.100 SE WA150 STTZN
Part No.: 105352
or equivalent.



Tekniske data

Material HDG steel
Fixing [4x] Ø14 mm
Distance from wall 106 mm
Clamping range (Ø mast) 40-50 mm (upright) and 55-100 mm (transverse)
Material of threaded rod / nut / washer StSt
