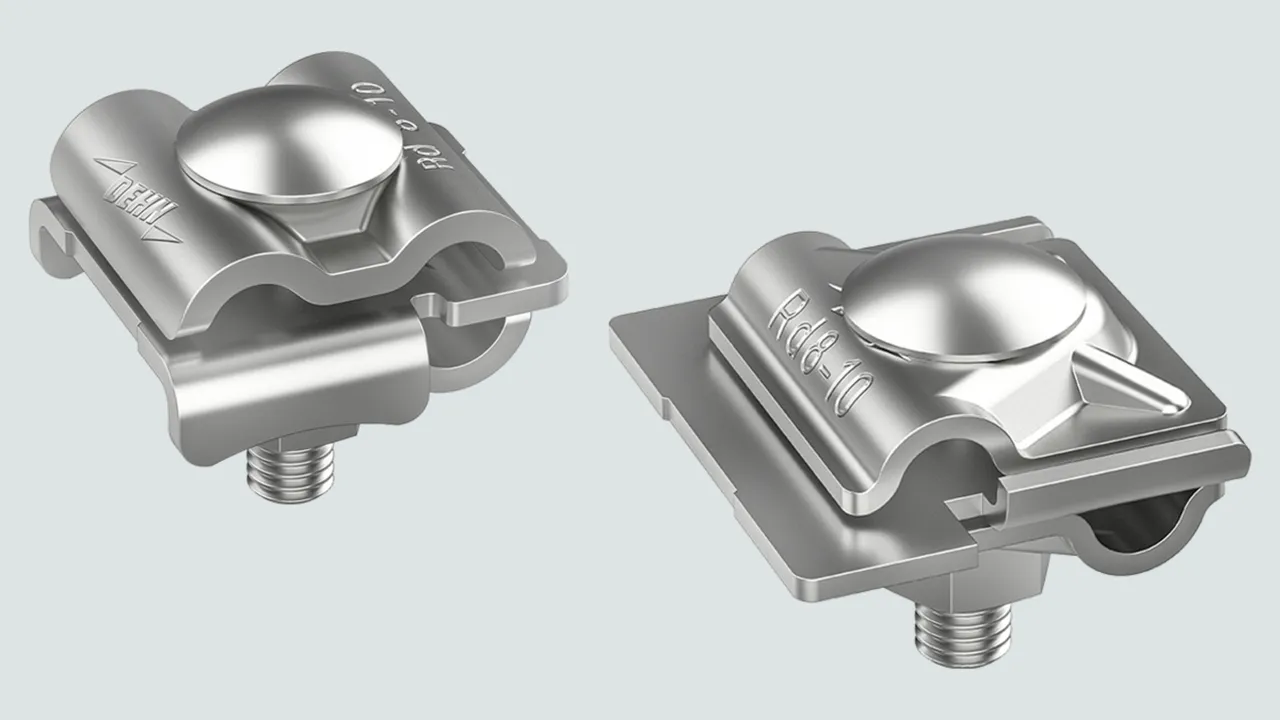

Multi-purpose connecting clamp

For the secure connection of round and flat conductors as well as seam connections. Thanks to their flexible design, they can be used universally as cross or parallel clamps and are suitable for a wide variety of conductor combinations. Whether it's round/round or round/flat – the multi-purpose connecting clamps offer a stable, long-lasting connection and can be installed flexibly. They are the ideal solution for demanding connection requirements in a wide range of applications.

with clamping piece and double clamp

1 produkt

artikelnr. 365018 FK KB DUL 6.10 KBF0.7 4 V2A

GTIN 4013364535428, CCT (EU): 85359000, Bruttovægt: 108.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Seam clamp with clamping piece and double clamp, stainless steel
Seam clamps for connecting conductors with seams
Clamping range of seam: 0.7-4 mm
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connecting direction: lengthwise / crosswise
Standard: EN 62561-1

Brand: DEHN
Type: FK KB DUL 6.10 KBF0.7 4 V2A
Part No.: 365018
or equivalent.

Certificater



Tekniske data

Clamping range of seam 0.7-4 mm
Material of clamp StSt
Clamping range Rd 8-10 mm
Standard EN 62561-1

Produkt 365018 blev tilføjet til notesblok.

Gå til notesblok

Produkt 365018 blev lagt I kurven.

Gå til webshoppen

with enlarged contact surface

1 produkt

artikelnr. 365228 FK MV 8.10 KBF0.7 8 V2A

GTIN 4013364535411, CCT (EU): 85359000, Bruttovægt: 157.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Seam clamp with enlarged contact surface (straight), stainless steel
Seam clamps with enlarged contact surface, version with a contact surface of 10 cm2 contact surface
Clamping range of seam: 0.7-8 mm
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connecting direction: lengthwise / crosswise
Connection with: clamp
Standard: EN 62561-1

Brand: DEHN
Type: FK MV 8.10 KBF0.7 8 V2A
Part No.: 365228
or equivalent.

Certificater



Tekniske data

Clamping range of seam 0.7-8 mm
Material of clamp StSt
Clamping range Rd 8-10 mm
Standard EN 62561-1

Produkt 365228 blev tilføjet til notesblok.

Gå til notesblok

Produkt 365228 blev lagt I kurven.

Gå til webshoppen
