Roof Conductor Holders with Tension Spring for Ridge and Hip Tiles

For fixing air-termination conductors on the ridge e.g. of tiled roofs.

SPANNsnap light

For fixing by StSt tension spring, with DEHNsnap conductor holder, loose conductor leading, laterally adjustable.

2 produkter

artikelnr. 204469 DLH SSL 8 H16 FG180.280 GR V2A

GTIN 4013364124851, CCT (EU): 85389099, Bruttovægt: 67.20 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Pitched roofs - SPANNsnap light, StSt, height of conductor holder: 16 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap light with fixing by stainless steel tension spring with DEHNsnap conductor holder,
loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SSL 8 H16 FG180.280 GR V2A
Part No.: 204469
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Produkt 204469 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204469 blev lagt I kurven.

Gå til webshoppen

artikelnr. 204449 DLH SSL 8 H36 FG180.280 GR V2A

GTIN 4013364124837, CCT (EU): 85389099, Bruttovægt: 70.30 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Pitched roofs - SPANNsnap light, StSt, height of conductor holder: 36 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap light with fixing by stainless steel tension spring with DEHNsnap conductor holder,
loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SSL 8 H36 FG180.280 GR V2A
Part No.: 204449
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Produkt 204449 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204449 blev lagt I kurven.

Gå til webshoppen

SPANNsnap

For fixing by StSt tension spring, with DEHNsnap conductor holder, loose conductor leading, laterally adjustable.

4 produkter

artikelnr. 204269 DLH SS 8 H16 FG180.280 GR V2A

GTIN 4013364035812, CCT (EU): 85389099, Bruttovægt: 68.60 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Pitched roofs - SPANNsnap, StSt, height of conductor holder: 16 mm, grey
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap light with fixing by stainless steel tension spring with DEHNsnap conductor holder,
loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SS 8 H16 FG180.280 GR V2A
Part No.: 204269
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Produkt 204269 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204269 blev lagt I kurven.

Gå til webshoppen

artikelnr. 204267 DLH SS 8 H16 FG180.280 BR CU

GTIN 4013364035805, CCT (EU): 85389099, Bruttovægt: 74.60 g, VPE: 25.00 pc(s)

forrige

billeder

Yderligere information

Pitched roofs - SPANNsnap, Cu, height of conductor holder: 16 mm, brown
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap light with fixing by stainless steel tension spring with DEHNsnap conductor holder,
loose conductor leading, adjustable on the side
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH SS 8 H16 FG180.280 BR CU
Part No.: 204267
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor holder support Rd 8 mm

Produkt 204267 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204267 blev lagt I kurven.

Gå til webshoppen

artikelnr. 204249 DLH SS 8 H36 FG180.280 GR V2A

GTIN 4013364041790, CCT (EU): 85389099, Bruttovægt: 72.60 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Pitched roofs - SPANNsnap, StSt, height of conductor holder: 36 mm, grey
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap with fixing by stainless steel tension spring with DEHNsnap conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SS 8 H36 FG180.280 GR V2A
Part No.: 204249
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Produkt 204249 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204249 blev lagt I kurven.

Gå til webshoppen

artikelnr. 204247 DLH SS 8 H36 FG180.280 BR CU

GTIN 4013364041806, CCT (EU): 85389099, Bruttovægt: 76.60 g, VPE: 25.00 pc(s)

forrige

billeder

Yderligere information

Pitched roofs - SPANNsnap, Cu, height of conductor holder: 36 mm, brown
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap with fixing by stainless steel tension spring with DEHNsnap conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH SS 8 H36 FG180.280 BR CU
Part No.: 204247
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor holder support Rd 8 mm

Produkt 204247 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204247 blev lagt I kurven.

Gå til webshoppen

SPANNgrip light

For fixing by StSt tension spring, with DEHNgrip conductor holder, loose conductor leading, laterally adjustable.

2 produkter

artikelnr. 206439 DLH SGL 8 H20 FG180.280 V2A

GTIN 4013364124875, CCT (EU): 85389099, Bruttovægt: 76.40 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Pitched roofs - SPANNgrip light, StSt, height of conductor holder: 20 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip light with fixing by stainless steel tension spring with DEHNsnap conductor holder, loose conductor leading, adjustable on the side

Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SGL 8 H20 FG180.280 V2A
Part No.: 206439
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

Produkt 206439 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206439 blev lagt I kurven.

Gå til webshoppen

artikelnr. 206449 DLH SGL 8 H32 FG180.280 V2A

GTIN 4013364124899, CCT (EU): 85389099, Bruttovægt: 82.10 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Pitched roofs - SPANNgrip light, StSt, height of conductor holder: 32 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip light with fixing by stainless steel tension spring with DEHNsnap conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SGL 8 H32 FG180.280 V2A
Part No.: 206449
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

Produkt 206449 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206449 blev lagt I kurven.

Gå til webshoppen

SPANNgrip

For fixing by StSt tension spring, with DEHNgrip conductor holder, loose conductor leading, laterally adjustable.

4 produkter

artikelnr. 206239 DLH SG 8 H20 FG180.280 V2A

GTIN 4013364042650, CCT (EU): 85389099, Bruttovægt: 78.60 g, VPE: 25.00 pc(s)

billeder

Yderligere information

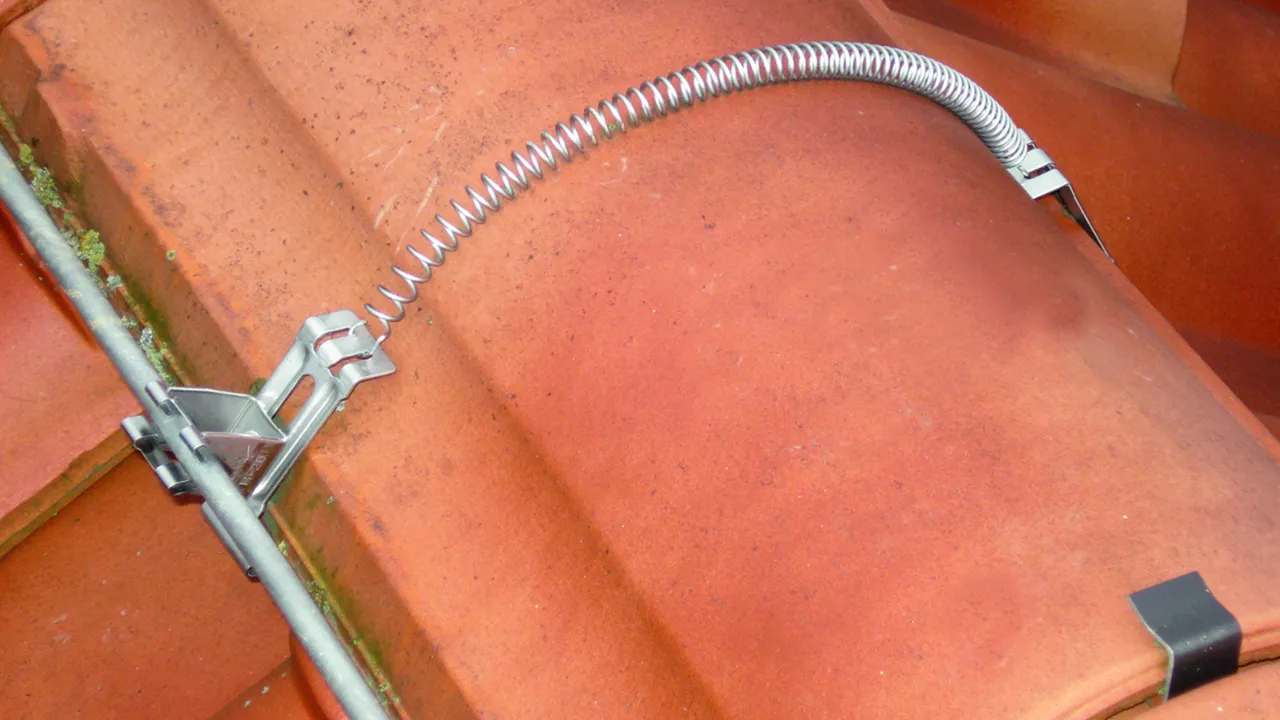

Pitched roofs - SPANNgrip, StSt, height of conductor holder: 20 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip with fixing by stainless steel tension spring with DEHNgrip conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SG 8 H20 FG180.280 V2A
Part No.: 206239
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

Produkt 206239 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206239 blev lagt I kurven.

Gå til webshoppen

artikelnr. 206237 DLH SG 8 H20 FG180.280 CU

GTIN 4013364077300, CCT (EU): 85389099, Bruttovægt: 85.60 g, VPE: 25.00 pc(s)

forrige

billeder

Yderligere information

Pitched roofs - SPANNgrip, Cu, height of conductor holder: 20 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip with fixing by stainless steel tension spring with DEHNgrip conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH SG 8 H20 FG180.280 CU
Part No.: 206237
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder Cu
Conductor holder support Rd 8 mm
Standard EN 62561-4

Produkt 206237 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206237 blev lagt I kurven.

Gå til webshoppen

artikelnr. 206249 DLH SG 8 H32 FG180.280 V2A

GTIN 4013364042803, CCT (EU): 85389099, Bruttovægt: 84.60 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Pitched roofs - SPANNgrip, StSt, height of conductor holder: 32 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip with fixing by stainless steel tension spring with DEHNgrip conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SG 8 H32 FG180.280 V2A
Part No.: 206249
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

Produkt 206249 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206249 blev lagt I kurven.

Gå til webshoppen

artikelnr. 206247 DLH SG 8 H32 FG180.280 CU

GTIN 4013364078574, CCT (EU): 85389099, Bruttovægt: 96.60 g, VPE: 25.00 pc(s)

forrige

billeder

Yderligere information

Pitched roofs - SPANNgrip, Cu, height of conductor holder: 32 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip with fixing by stainless steel tension spring with DEHNgrip conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH SG 8 H32 FG180.280 CU
Part No.: 206247
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder Cu
Conductor holder support Rd 8 mm
Standard EN 62561-4

Produkt 206247 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206247 blev lagt I kurven.

Gå til webshoppen
back to top
