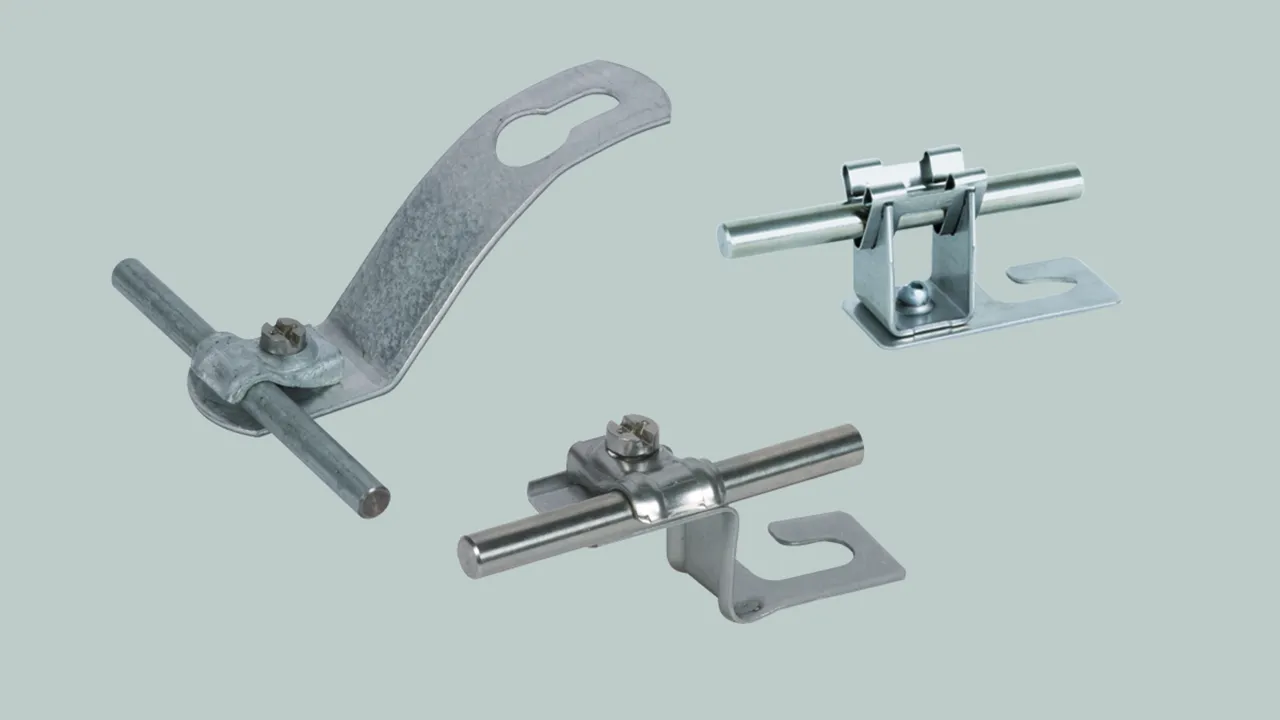

Roof Conductor Holders for Corrugated Sheet Roofing

For installing ridge conductors and conductors on the roof surface. Corrugations 177 mm (profile 5) and 130 mm (profile 8).

For corrugated sheet roofing profile 5 with DEHNquick

For installation on the roof surface.

1 produkt

artikelnr. 202005 DLH DQ 6.10 WPRO5 STTZN

GTIN 4013364022041, CCT (EU): 85389099, Bruttovægt: 72.20 g, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Roof conductor holder for corrugated sheet roofs (DEHNQUICK), St/tZn
Roof conductor holder for corrugated roof sheetings for installation of ridge conductors and conductors
on the roof surface
For corrugated roof sheetings, profile 5
Material of roof conductor holder: St/tZn
Type of conductor holder: DEHNquick
Material of conductor holder: St/tZn
Conductor holder support Rd: 6-10 mm
Conductor leading: fixed

Brand: DEHN
Type: DLH DQ 6.10 WPRO5 STTZN
Part No.: 202005
or equivalent.

Certificater

Tekniske data

Material of roof conductor holder	St/tZn
Material of conductor holder	St/tZn
Conductor holder support Rd	6-10 mm
Conductor leading	fixed

Note on application	for roof conductors
Material of roof conductor holder	St/tZn
Type of conductor holder	DEHNquick
Material of conductor holder	St/tZn
Conductor holder support Rd	6-10 mm
Conductor leading	fixed
Bore Ø	8.4 mm
Fixing possibility	for clamping at the screw head
Type of roofing	currogated sheets profile 5 (shaft space 177 mm)

Produkt 202005 blev tilføjet til notesblok.

Gå til notesblok

Produkt 202005 blev lagt I kurven.

Gå til webshoppen

For corrugated sheet roofing profile 5 with DEHNgrip

For installation on the roof surface.

1 produkt

artikelnr. 206105 DLH DQ 8 WPRO5 V2A STTZN

GTIN 4013364083189, CCT (EU): 85389099, Bruttovægt: 76.30 g, VPE: 50.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Roof conductor holder for corrugated sheet roofs (DEHNgrip)
Roof conductor holder for corrugated roof sheetings for installation of ridge conductors and conductors
on the roof surface
For corrugated roof sheetings, profile 5
Material of roof conductor holder: St/tZn
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor holder support Rd: 8 mm
Conductor leading: loose

Brand: DEHN
Type: DLH DQ 8 WPRO5 V2A STTZN
Part No.: 206105
or equivalent.

Certificater

Tekniske data

Material of roof conductor holder	St/tZn
Height of conductor holder	20 mm
Material of conductor holder	StSt
Conductor holder support Rd	8 mm
Conductor leading	loose
Standard	EN 62561-4

Note on application	for ridge and roof conductors
Material of roof conductor holder	St/tZn
Type of conductor holder	DEHNgrip
Height of conductor holder	20 mm
Material of conductor holder	StSt
Conductor holder support Rd	8 mm
Conductor leading	loose
Bore Ø	7.8 mm
Fixing possibility	for clipping under the screw head
Type of roofing	corrugated sheets profile 5 (shaft space 177 mm)
Standard	EN 62561-4

Produkt 206105 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206105 blev lagt I kurven.

Gå til webshoppen

For corrugated sheet roofing profile 5 and profile 8 with DEHNquick

For installing ridge conductors and conductors on the roof surface, angled design.

1 produkt

artikelnr. 202015 DLH DQ 6.10 WPRO5 8 STTZN

GTIN 4013364022089, CCT (EU): 85389099, Bruttovægt: 61.20 g, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Roof conductor holder for corrugated sheet roofs (DEHNQUICK), St/tZn
Roof conductor holder for corrugated roof sheetings for installation of ridge conductors and conductors
on the roof surface
For corrugated roof sheetings, profile 5 and profile 8, angled unit
Material of roof conductor holder: St/tZn
Type of conductor holder: DEHNquick
Material of conductor holder: St/tZn
Conductor holder support Rd: 6-10 mm
Conductor leading: fixed

Brand: DEHN
Type: DLH DQ 6.10 WPRO5 8 STTZN
Part No.: 202015
or equivalent.

Certificater

Tekniske data

Material of roof conductor holder	St/tZn
Material of conductor holder	St/tZn
Conductor holder support Rd	6-10 mm
Conductor leading	fixed

Note on application	for ridge and roof conductors
Material of roof conductor holder	St/tZn
Type of conductor holder	DEHNquick
Material of conductor holder	St/tZn
Conductor holder support Rd	6-10 mm
Conductor leading	fixed
Bore Ø	8.4 mm
Fixing possibility	for clamping at the screw head
Type of roofing	corrugated sheets profile 5 (shaft space 177mm) profile 8 (shaft space 130mm)

Produkt 202015 blev tilføjet til notesblok.

Gå til notesblok

Produkt 202015 blev lagt I kurven.

Gå til webshoppen

For corrugated sheet roofing profile 5 and profile 8 with DEHNquick

For installing ridge conductors and conductors on the roof surface, angled design.

1 produkt

artikelnr. 202906 DLH DQ 6.10 WPRO5 8 V2A

GTIN 4013364022102, CCT (EU): 85389099, Bruttovægt: 34.20 g, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Roof conductor holder for corrugated sheet roofs (DEHNQUICK), StSt
Roof conductor holder for corrugated roof sheetings for installation of ridge conductors and conductors
on the roof surface
For corrugated roof sheetings, profile 5 and profile 8, angled unit
Material of roof conductor holder: StSt
Type of conductor holder: DEHNquick
Material of conductor holder: StSt
Conductor holder support Rd: 6-10 mm
Conductor leading: fixed

Brand: DEHN
Type: DLH DQ 6.10 WPRO5 8 V2A
Part No.: 202906
or equivalent.

Certificater

Tekniske data

Material of roof conductor holder	StSt
Material of conductor holder	StSt
Conductor holder support Rd	6-10 mm
Conductor leading	fixed

Note on application	for ridge and roof conductors
Material of roof conductor holder	StSt
Type of conductor holder	DEHNquick
Material of conductor holder	StSt
Conductor holder support Rd	6-10 mm
Conductor leading	fixed
Bore Ø	8.4 mm
Fixing possibility	for clamping at the screw head
Type of roofing	corrugated roof sheetings profile 5 (distance 177mm) profile 8 (distance 130mm)

Produkt 202906 blev tilføjet til notesblok.

Gå til notesblok

Produkt 202906 blev lagt I kurven.

Gå til webshoppen

For corrugated sheet roofing profile 5 and profile 8 with DEHNgrip

For installing ridge conductors and conductors on the roof surface, straight design.

1 produkt

artikelnr. 206339 DLH DG 8 H20 WPRO5 8 V2A

GTIN 4013364047730, CCT (EU): 85389099, Bruttovægt: 29.00 g, VPE: 50.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Roof conductor holder for corrugated sheet roofs (DEHNgrip), StSt
Roof conductor holder for corrugated roof sheetings for installation of ridge conductors and conductors
on the roof surface
For corrugated roof sheetings, profile 5 and profile 8, straight unit
Material of roof conductor holder: StSt
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor holder support Rd: 8 mm
Conductor leading: loose

Brand: DEHN
Type: DLH DG 8 H20 WPRO5 8 V2A
Part No.: 206339
or equivalent.

Certificater

Tekniske data

Material of roof conductor holder	StSt
Height of conductor holder	20 mm
Material of conductor holder	StSt
Conductor holder support Rd	8 mm
Conductor leading	loose
Standard	EN 62561-4

Note on application	for ridge and roof conductors, adjustable conductor leading (support)
Material of roof conductor holder	StSt
Type of conductor holder	DEHNgrip
Height of conductor holder	20 mm
Material of conductor holder	StSt
Conductor holder support Rd	8 mm
Conductor leading	loose
Bore Ø	7.8 mm
Fixing possibility	for clamping at the screw head
Type of roofing	corrugated sheet roofing profile 5 (distance 177 mm) profile 8 (distance 130 mm)
Standard	EN 62561-4

Produkt 206339 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206339 blev lagt I kurven.

Gå til webshoppen

For corrugated sheet roofing profile 5 and profile 8 with DEHNsnap

For installing ridge conductors and conductors on the roof surface, straight design.

2 produkter

artikelnr. 204906 DLH DS 8 H16 WPRO5 8 GR V2A

GTIN 4013364028456, CCT (EU): 85389099, Bruttovægt: 21.00 g, VPE: 50.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Roof conductor holder for corrugated sheet roofs (DEHNsnap), grey, StSt
Roof conductor holder for corrugated roof sheetings for installation of ridge conductors and conductors
on the roof surface
For corrugated roof sheetings, profile 5 and profile 8, straight unit
Material of roof conductor holder: StSt
Type of conductor holder: DEHNsnap
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor holder support Rd: 8 mm
Conductor leading: loose

Brand: DEHN
Type: DLH DS 8 H16 WPRO5 8 GR V2A
Part No.: 204906
or equivalent.

Certificater

Tekniske data

Material of roof conductor holder	StSt
Height of conductor holder	16 mm
Material of conductor holder	plastic
Colour of conductor holder	grey ●
Conductor holder support Rd	8 mm
Conductor leading	loose

Note on application	for ridge and roof conductors, conductor leading (support) adjustable
Material of roof conductor holder	StSt
Type of conductor holder	DEHNsnap
Height of conductor holder	16 mm
Material of conductor holder	plastic
Colour of conductor holder	grey ●
Conductor holder support Rd	8 mm
Conductor leading	loose
Female thread	M6
Fixing possibility	for clamping at the screw head
Type of roofing	corrugated sheets profile 5 (shaft space 177mm) profile 8 (shaft space 130mm)

Produkt 204906 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204906 blev lagt I kurven.

Gå til webshoppen

artikelnr. 204916 DLH DS 8 H16 WPRO5 8 BR V2A

GTIN 4013364030565, CCT (EU): 85389099, Bruttovægt: 20.80 g, VPE: 50.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Roof conductor holder for corrugated sheet roofs (DEHNsnap), brown, StSt
Roof conductor holder for corrugated roof sheetings for installation of ridge conductors and conductors
on the roof surface
For corrugated roof sheetings, profile 5 and profile 8, straight unit
Material of roof conductor holder: StSt
Type of conductor holder: DEHNsnap
Material of conductor holder: plastic
Colour of conductor holder: brown ●
Conductor holder support Rd: 8 mm
Conductor leading: loose

Brand: DEHN
Type: DLH DS 8 H16 WPRO5 8 BR V2A
Part No.: 204916
or equivalent.

Certificater

Tekniske data

Material of roof conductor holder	StSt
Height of conductor holder	16 mm
Material of conductor holder	plastic
Colour of conductor holder	brown ●
Conductor holder support Rd	8 mm
Conductor leading	loose

Note on application	for ridge and roof conductors, adjustable conductor leading (support)
Material of roof conductor holder	StSt
Type of conductor holder	DEHNsnap
Height of conductor holder	16 mm
Material of conductor holder	plastic
Colour of conductor holder	brown ●
Conductor holder support Rd	8 mm
Conductor leading	loose
Female thread	M6
Fixing possibility	for clamping at the screw head
Type of roofing	corrugated sheets profile 5 (shaft space 177mm) profile 8 (shaft space 130mm)

Produkt 204916 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204916 blev lagt I kurven.

Gå til webshoppen

Results for products (0)

Results for content (0)

Roof Conductor Holders for Corrugated Sheet Roofing

For corrugated sheet roofing profile 5 with DEHNquick

artikelnr. 202005 DLH DQ 6.10 WPRO5 STTZN

Produkt 202005 blev tilføjet til notesblok.

Produkt 202005 blev lagt I kurven.

For corrugated sheet roofing profile 5 with DEHNgrip

artikelnr. 206105 DLH DQ 8 WPRO5 V2A STTZN

Produkt 206105 blev tilføjet til notesblok.

Produkt 206105 blev lagt I kurven.

For corrugated sheet roofing profile 5 and profile 8 with DEHNquick

artikelnr. 202015 DLH DQ 6.10 WPRO5 8 STTZN

Produkt 202015 blev tilføjet til notesblok.

Produkt 202015 blev lagt I kurven.

For corrugated sheet roofing profile 5 and profile 8 with DEHNquick

artikelnr. 202906 DLH DQ 6.10 WPRO5 8 V2A

Produkt 202906 blev tilføjet til notesblok.

Produkt 202906 blev lagt I kurven.

For corrugated sheet roofing profile 5 and profile 8 with DEHNgrip

artikelnr. 206339 DLH DG 8 H20 WPRO5 8 V2A

Produkt 206339 blev tilføjet til notesblok.

Produkt 206339 blev lagt I kurven.

For corrugated sheet roofing profile 5 and profile 8 with DEHNsnap

artikelnr. 204906 DLH DS 8 H16 WPRO5 8 GR V2A

Produkt 204906 blev tilføjet til notesblok.

Produkt 204906 blev lagt I kurven.

artikelnr. 204916 DLH DS 8 H16 WPRO5 8 BR V2A

Produkt 204916 blev tilføjet til notesblok.

Produkt 204916 blev lagt I kurven.

Roof Conductor Holders for Corrugated Sheet Roofing

For corrugated sheet roofing profile 5 with DEHNquick

artikelnr. 202005 DLH DQ 6.10 WPRO5 STTZN

Du er ikke autoriseret til at downloade 202005.stp

Du er ikke autoriseret til at downloade 202005.igs

Du er ikke autoriseret til at downloade 202005.jt

Du er ikke autoriseret til at downloade 202005.dwg

Du er ikke autoriseret til at downloade 202005m_D.dxf

Produkt 202005 blev tilføjet til notesblok.

Produkt 202005 blev lagt I kurven.

For corrugated sheet roofing profile 5 with DEHNgrip

artikelnr. 206105 DLH DQ 8 WPRO5 V2A STTZN

Du er ikke autoriseret til at downloade 206105.stp

Du er ikke autoriseret til at downloade 206105.igs

Du er ikke autoriseret til at downloade 206105.jt

Du er ikke autoriseret til at downloade 206105.dwg

Du er ikke autoriseret til at downloade 206105m_D.dxf

Produkt 206105 blev tilføjet til notesblok.

Produkt 206105 blev lagt I kurven.

For corrugated sheet roofing profile 5 and profile 8 with DEHNquick

artikelnr. 202015 DLH DQ 6.10 WPRO5 8 STTZN

Du er ikke autoriseret til at downloade 202015.stp

Du er ikke autoriseret til at downloade 202015.igs

Du er ikke autoriseret til at downloade 202015.jt

Du er ikke autoriseret til at downloade 202015.dwg

Du er ikke autoriseret til at downloade 202015m_D.dxf

Produkt 202015 blev tilføjet til notesblok.

Produkt 202015 blev lagt I kurven.

For corrugated sheet roofing profile 5 and profile 8 with DEHNquick

artikelnr. 202906 DLH DQ 6.10 WPRO5 8 V2A

Du er ikke autoriseret til at downloade 202906.stp

Du er ikke autoriseret til at downloade 202906.igs

Du er ikke autoriseret til at downloade 202906.jt

Du er ikke autoriseret til at downloade 202906.dwg

Du er ikke autoriseret til at downloade 202906m_D.dxf

Produkt 202906 blev tilføjet til notesblok.

Produkt 202906 blev lagt I kurven.

For corrugated sheet roofing profile 5 and profile 8 with DEHNgrip

artikelnr. 206339 DLH DG 8 H20 WPRO5 8 V2A

Du er ikke autoriseret til at downloade 206339.stp

Du er ikke autoriseret til at downloade 206339.igs

Du er ikke autoriseret til at downloade 206339.jt

Du er ikke autoriseret til at downloade 206339.dwg

Du er ikke autoriseret til at downloade 206339m_D.dxf

Produkt 206339 blev tilføjet til notesblok.

Produkt 206339 blev lagt I kurven.

For corrugated sheet roofing profile 5 and profile 8 with DEHNsnap

artikelnr. 204906 DLH DS 8 H16 WPRO5 8 GR V2A

Du er ikke autoriseret til at downloade 202906.stp

Du er ikke autoriseret til at downloade 202906.igs

Du er ikke autoriseret til at downloade 202906.jt

Du er ikke autoriseret til at downloade 202906.dwg

Du er ikke autoriseret til at downloade 204906m_D.dxf

Produkt 204906 blev tilføjet til notesblok.

Produkt 204906 blev lagt I kurven.

artikelnr. 204916 DLH DS 8 H16 WPRO5 8 BR V2A

Du er ikke autoriseret til at downloade 204906.stp

Du er ikke autoriseret til at downloade 204906.igs

Du er ikke autoriseret til at downloade 204906.jt

Du er ikke autoriseret til at downloade 204906.dwg

Du er ikke autoriseret til at downloade 204906m_D.dxf

Produkt 204916 blev tilføjet til notesblok.

Produkt 204916 blev lagt I kurven.
