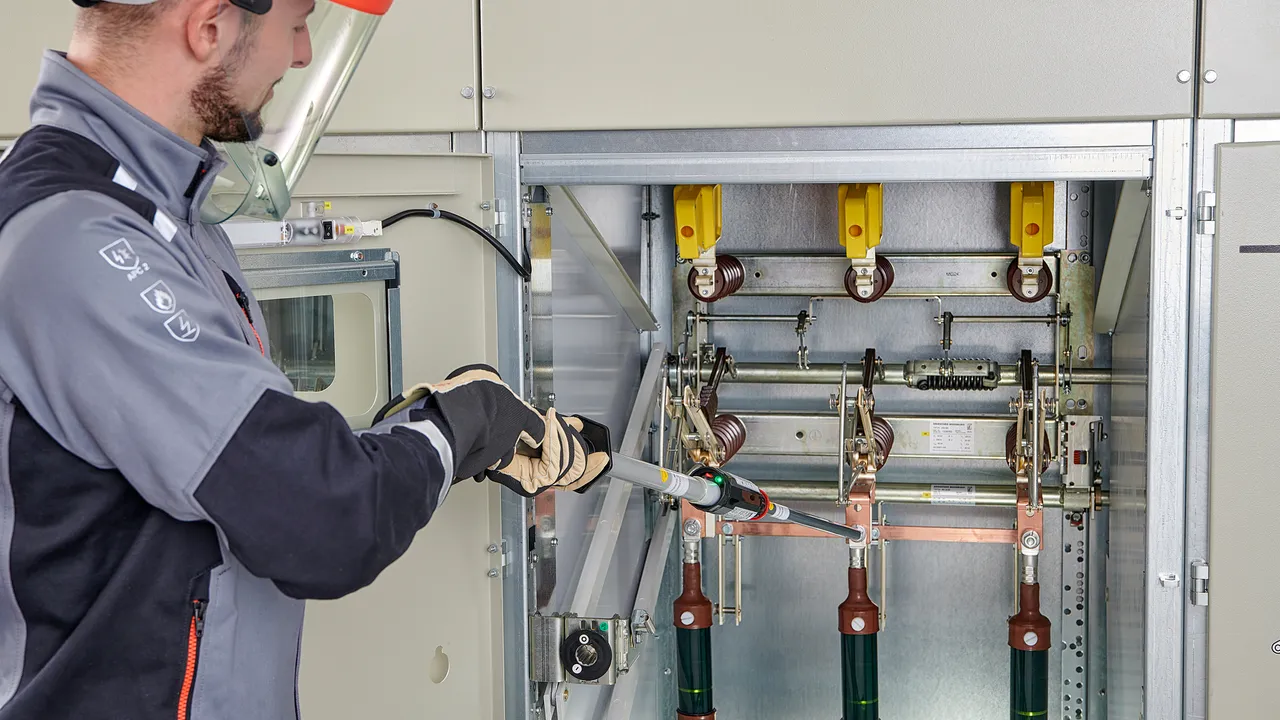

PHE III Voltage Detector

Safe verification of isolation from supply voltage

Reliable indication
Easy to use
Cost-effective / space-saving transport

Details

Plugging a HV STK extension handle into an IS PHE STK insulating stick

lorem ipsum — Plugging a HV STK extension handle into an IS PHE STK insulating stick

Universal gear coupling allows to adjust the angle of the voltage detector

Testing with screwed-on V-shaped electrode

Nominal Voltages up to 30 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

5 produkter

artikelnr. 767703 PHE3 3 S

GTIN 4013364070899, CCT (EU): 90303370, Bruttovægt: 1.71 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	3 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	3 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767703 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767703 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767706 PHE3 6 S

GTIN 4013364070837, CCT (EU): 90303370, Bruttovægt: 1.71 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	6 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	6 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767706 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767706 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767710 PHE3 10 S

GTIN 4013364070851, CCT (EU): 90303370, Bruttovægt: 1.71 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	10 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	10 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767710 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767710 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767720 PHE3 20 S

GTIN 4013364070844, CCT (EU): 90303370, Bruttovægt: 1.89 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	20 kV
Total length (l_G )	1230 mm
Insertion depth (I_O )	435 mm

Nominal voltage (U_N )	20 kV
Type of voltage	a.c.
Category	S 61
Total length (l_G )	1230 mm
Insertion depth (I_O )	435 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767720 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767720 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767730 PHE3 30 S

GTIN 4013364070813, CCT (EU): 90303370, Bruttovægt: 1.83 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	30 kV
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	30 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767730 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767730 blev lagt I kurven.

Gå til webshoppen

Nominal Voltage Ranges up to 30 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

3 produkter

artikelnr. 767711 PHE3 3 10 S

GTIN 4013364070820, CCT (EU): 90303370, Bruttovægt: 1.86 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	3 ... 10 kV
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	3 ... 10 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767711 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767711 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767721 PHE3 6 20 S

GTIN 4013364070868, CCT (EU): 90303370, Bruttovægt: 1.93 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1575 mm
Insertion depth (I_O )	780 mm

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Category	S 63
Total length (l_G )	1575 mm
Insertion depth (I_O )	780 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767721 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767721 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767731 PHE3 10 30 S

GTIN 4013364070875, CCT (EU): 90303370, Bruttovægt: 1.99 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767731 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767731 blev lagt I kurven.

Gå til webshoppen

Nominal Voltage Ranges up to 30 kV / 50 Hz, M12 Thread, switchable

The nominal voltage selector switch allows to switch between two nominal voltage ranges. For safety reasons, the voltage detector can only be switched on if the selector switch is switched to the most sensitive range of 3 kV to 10 kV. The switch snaps into the relevant position, thus providing protection against inadvertent switching. A magnetically operated, wear-resistant reed switch changes the switching position.

Category "S" for switchgear installations and overhead lines.

1 produkt

artikelnr. 767733 PHE3 U 3 30 S

GTIN 4013364070882, CCT (EU): 90303370, Bruttovægt: 1.99 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor switchgear installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767733 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767733 blev lagt I kurven.

Gå til webshoppen

Nominal Voltages up to 25 kV / 50 Hz

For the overhead contact lines of electric railways.
Category "S" for single-ended monophase systems.

1 produkt

artikelnr. 767125 PHE3 25 S 50 1P

GTIN 4013364130319, CCT (EU): 90303370, Bruttovægt: 1.96 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	25 kV
Total length (l_G )	1680 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	25 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1680 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Outdoor installations
Application	Overhead contact lines of electric vehicles
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767125 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767125 blev lagt I kurven.

Gå til webshoppen

Nominal Voltages up to 30 kV / 50 Hz, Gear Coupling

Category "S" for switchgear installations and overhead lines.

5 produkter

artikelnr. 767903 PHE3 3 S ZK

GTIN 4013364134737, CCT (EU): 90303370, Bruttovægt: 1692.00 g, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	3 kV
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	3 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767903 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767903 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767906 PHE3 6 S ZK

GTIN 4013364134744, CCT (EU): 90303370, Bruttovægt: 1692.00 g, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	6 kV
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	6 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767906 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767906 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767910 PHE3 10 S ZK

GTIN 4013364134751, CCT (EU): 90303370, Bruttovægt: 1692.00 g, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	10 kV
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	10 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767910 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767910 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767920 PHE3 20 S ZK

GTIN 4013364134768, CCT (EU): 90303370, Bruttovægt: 1.80 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	20 kV
Total length (l_G )	1300 mm
Insertion depth (I_O )	435 mm

Nominal voltage (U_N )	20 kV
Type of voltage	a.c.
Category	S 61
Total length (l_G )	1300 mm
Insertion depth (I_O )	435 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767920 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767920 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767930 PHE3 30 S ZK

GTIN 4013364134775, CCT (EU): 90303370, Bruttovægt: 1.87 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	30 kV
Total length (l_G )	1485 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	30 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1485 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767930 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767930 blev lagt I kurven.

Gå til webshoppen

Nominal Voltage Ranges up to 30 kV / 50 Hz, Gear Coupling

Category "S" for switchgear installations and overhead lines.

3 produkter

artikelnr. 767941 PHE3 3 10 S ZK

GTIN 4013364134782, CCT (EU): 90303370, Bruttovægt: 1.87 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	3 ... 10 kV
Total length (l_G )	1485 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	3 ... 10 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1485 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767941 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767941 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767951 PHE3 6 20 S ZK

GTIN 4013364134799, CCT (EU): 90303370, Bruttovægt: 1.96 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1645 mm
Insertion depth (I_O )	780 mm

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Category	S 63
Total length (l_G )	1645 mm
Insertion depth (I_O )	780 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767951 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767951 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767961 PHE3 10 30 S ZK

GTIN 4013364134805, CCT (EU): 90303370, Bruttovægt: 2.02 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767961 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767961 blev lagt I kurven.

Gå til webshoppen

Nominal Voltage Ranges up to 36 kV / 50 Hz, Gear Coupling, switchable

The nominal voltage selector switch allows to switch between two nominal voltage ranges. For safety reasons, the voltage detector can only be switched on if the selector switch is switched to the most sensitive range of (3 kV to 10 kV or 6 kV to 20 kV). The switch snaps into the relevant position, thus providing protection against inadvertent switching. A magnetically operated, wear-resistant reed switch changes the switching position.

Category "S" for switchgear installations and overhead lines.

2 produkter

artikelnr. 767960 PHE3 U 3 30 S ZK

GTIN 4013364134812, CCT (EU): 90303370, Bruttovægt: 2.02 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767960 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767960 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767944 PHE3 U 6 36 S SN7728

GTIN 4013364277731, CCT (EU): 90303370, Bruttovægt: 2.16 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	6 ... 20 / 20 ... 36 kV
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	6 ... 20 / 20 ... 36 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767944 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767944 blev lagt I kurven.

Gå til webshoppen

Nominal Voltage Ranges up to 30 kV / 50 Hz, Test Kit, Thread M12

With two test prods of Category "S" for switchgear installations and overhead lines and of Category "L" for overhead lines.

2 produkter

artikelnr. 767740 PHE3 6 20 SL

GTIN 4013364071063, CCT (EU): 90303370, Bruttovægt: 2.15 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1575 / 980 mm
Insertion depth (I_O )	780 / 185 mm

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Category	S 63 / L 71
Total length (l_G )	1575 / 980 mm
Insertion depth (I_O )	780 / 185 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines or overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767740 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767740 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767750 PHE3 10 30 SL

GTIN 4013364071070, CCT (EU): 90303370, Bruttovægt: 2.21 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1675 / 980 mm
Insertion depth (I_O )	880 / 185 mm

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Category	S 64 / L 71
Total length (l_G )	1675 / 980 mm
Insertion depth (I_O )	880 / 185 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Switchgear installations and overhead lines
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767750 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767750 blev lagt I kurven.

Gå til webshoppen

Nominal Voltage Ranges up to 30 kV / 50 Hz, Test Kit, Gear Coupling

With two test prods of Category "S" for switchgear installations and overhead lines and of Category "L" for overhead lines.

2 produkter

artikelnr. 767940 PHE3 6 20 SL ZK

GTIN 4013364134829, CCT (EU): 90303370, Bruttovægt: 2.09 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1650 / 1050 mm
Insertion depth (I_O )	780 / 185 mm

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Category	S 63 / L 71
Total length (l_G )	1650 / 1050 mm
Insertion depth (I_O )	780 / 185 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines or overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767940 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767940 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767950 PHE3 10 30 SL ZK

GTIN 4013364134836, CCT (EU): 90303370, Bruttovægt: 2.14 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1750 / 1050 mm
Insertion depth (I_O )	880 / 185 mm

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Category	S 64 / L 71
Total length (l_G )	1750 / 1050 mm
Insertion depth (I_O )	880 / 185 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines or overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767950 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767950 blev lagt I kurven.

Gå til webshoppen
