PHE III Voltage Detector

Nominal voltages up to 33 kV / 50 HzSafe verification of isolation from supply voltage

Reliable indication
Easy to use
Cost-effective/space-saving transport

Details

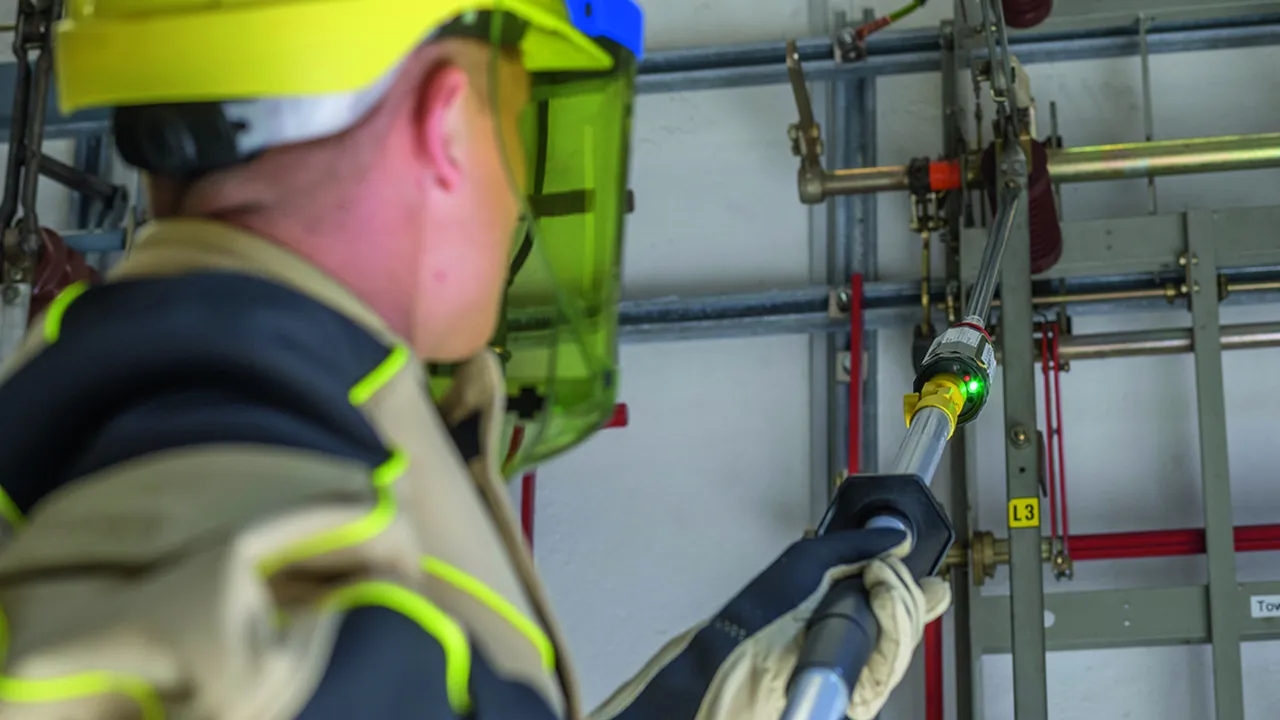

lorem ipsum — Testing with integrated electrode

Testing with screwed-on V-shaped electrode

Plugging a HV STK extension handle into an IS PHE STK insulating stick

Nominal Voltages up to 33 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

5 produkter

artikelnr. 767798 PHE3 3.3 S SN7130

GTIN 4013364160019, CCT (EU): 90303370, Bruttovægt: 1.70 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	3.3 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	3.3 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767798 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767798 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767707 PHE3 6.6 S SN7101

GTIN 4013364131620, CCT (EU): 90303370, Bruttovægt: 2.55 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	6.6 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	6.6 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Single-pole
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767707 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767707 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767719 PHE3 11 S SN7116

GTIN 4013364131699, CCT (EU): 90303370, Bruttovægt: 2.55 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	11 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	11 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Single-pole
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767719 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767719 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767756 PHE3 22 S SN7128

GTIN 4013364132047, CCT (EU): 90303370, Bruttovægt: 2.65 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	22 kV
Total length (l_G )	1230 mm
Insertion depth (I_O )	435 mm

Nominal voltage (U_N )	22 kV
Type of voltage	a.c.
Category	S 61
Total length (l_G )	1230 mm
Insertion depth (I_O )	435 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Single-pole
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767756 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767756 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767757 PHE3 33 S SN7129

GTIN 4013364132054, CCT (EU): 90303370, Bruttovægt: 1.83 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	33 kV
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	33 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767757 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767757 blev lagt I kurven.

Gå til webshoppen

Nominal Voltage Ranges up to 33 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

3 produkter

artikelnr. 767758 PHE3 3.3 11 S SN7127

GTIN 4013364132030, CCT (EU): 90303370, Bruttovægt: 1.86 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	3.3 ... 11 kV
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	3.3 ... 11 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767758 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767758 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767769 PHE3 6.6 22 SN7197

GTIN 4013364139831, CCT (EU): 90303370, Bruttovægt: 1.93 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	6.6 ... 22 kV
Total length (l_G )	1575 mm
Insertion depth (I_O )	780 mm

Nominal voltage (U_N )	6.6 ... 22 kV
Type of voltage	a.c.
Category	S 63
Total length (l_G )	1575 mm
Insertion depth (I_O )	780 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767769 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767769 blev lagt I kurven.

Gå til webshoppen

artikelnr. 767773 PHE3 11 33 S SN7264

GTIN 4013364135567, CCT (EU): 90303370, Bruttovægt: 1.90 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Tekniske data

Nominal voltage (U_N )	11 ... 33 kV
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	11 ... 33 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767773 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767773 blev lagt I kurven.

Gå til webshoppen

Nominal Voltage Ranges up to 33 kV / 50 Hz, switchable, M12 Thread

The nominal voltage selector switch allows to switch between two nominal voltage ranges. For safety reasons, the voltage detector can only be switched on if the selector switch is switched to the most sensitive range of 3.3 kV to 11 kV. The switch snaps into the relevant position, thus providing protection against inadvertent switching. A magnetically operated, wear-resistant reed switch changes the switching position.

Category "S" for switchgear installations and overhead lines.

1 produkt

artikelnr. 767774 PHE3 U 3.3 33 SN7108

GTIN 4013364131637, CCT (EU): 90303370, Bruttovægt: 2.00 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

Certificater

Tekniske data

Nominal voltage (U_N )	3.3 ... 11 / 11 ... 33 kV
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	3.3 ... 11 / 11 ... 33 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor switchgear installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767774 blev tilføjet til notesblok.

Gå til notesblok

Produkt 767774 blev lagt I kurven.

Gå til webshoppen

Results for products (0)

Results for content (0)

PHE III Voltage Detector

Details

Nominal Voltages up to 33 kV / 50 Hz, M12 Thread

artikelnr. 767798 PHE3 3.3 S SN7130

Produkt 767798 blev tilføjet til notesblok.

Produkt 767798 blev lagt I kurven.

artikelnr. 767707 PHE3 6.6 S SN7101

Produkt 767707 blev tilføjet til notesblok.

Produkt 767707 blev lagt I kurven.

artikelnr. 767719 PHE3 11 S SN7116

Produkt 767719 blev tilføjet til notesblok.

Produkt 767719 blev lagt I kurven.

artikelnr. 767756 PHE3 22 S SN7128

Produkt 767756 blev tilføjet til notesblok.

Produkt 767756 blev lagt I kurven.

artikelnr. 767757 PHE3 33 S SN7129

Produkt 767757 blev tilføjet til notesblok.

Produkt 767757 blev lagt I kurven.

Nominal Voltage Ranges up to 33 kV / 50 Hz, M12 Thread

artikelnr. 767758 PHE3 3.3 11 S SN7127

Produkt 767758 blev tilføjet til notesblok.

Produkt 767758 blev lagt I kurven.

artikelnr. 767769 PHE3 6.6 22 SN7197

Produkt 767769 blev tilføjet til notesblok.

Produkt 767769 blev lagt I kurven.

artikelnr. 767773 PHE3 11 33 S SN7264

Produkt 767773 blev tilføjet til notesblok.

Produkt 767773 blev lagt I kurven.

Nominal Voltage Ranges up to 33 kV / 50 Hz, switchable, M12 Thread

artikelnr. 767774 PHE3 U 3.3 33 SN7108

Produkt 767774 blev tilføjet til notesblok.

Produkt 767774 blev lagt I kurven.
